1  Using Arduino / Project Guidance / Re: Shooting range controller on: September 09, 2013, 12:39:22 pm
Alright, I'm working on version 2 now. Gotta redesign the circuit and etch a new board.
The things ill inplement now is some extra capacitors, more diodes to remove feedback and use pull up resistors instead of pull down so there is less noise.
Will update when all is ready.

And the power supply is just a 12v wall wart, the diode is hooked up to Vin as a crude reverse current protection.
2  Using Arduino / Project Guidance / Shooting range controller on: September 08, 2013, 02:30:18 pm
So for my local shooting range I built a controller to move the targets around based on an Arduino Mega 2560.
Besides its purpose it comes down to 20 switches and 10 relays, the shield for the Arduino is basically a bunch of screw terminals (also includes the pull down resistors for the inputs and outputs and decoupling capacitors).

https://www.dropbox.com/s/kuissaxvp9fu81m/MainSchematic.png

To drive the relays I used some mosfets as the relays required 24v.

https://www.dropbox.com/s/qezvqpfmgnv4ib5/RelaySchematic.png

After testing it works fairly well except for some odd things:
First was that to one of the relay drivers i had to attach an additional 2k pull down resistor otherwise they would stay on.
And once in a while when one switch is triggered it randomly triggers another pin, as an example: a target would move forward and when it reached the front stop switch, it triggered the move button so it moved backwards again.

For problem 1 I'm kinda clueless as it seems that somehow its leaking current.
For problem 2 I assumed that as all pins are hooked up to the same ground line that when one pin is pulled high it leaks current to another pin.

I double checked all the traces and they seem to be fine.

So would the circuit be more robust using pull up resistors and letting the switch pull the pin low?
Or add diodes between the pull down resistor and ground line?

And something not very time crucial but the code is just a string of if statements ie.
Code:
var = digitalRead(switch);
if (var == 1) {
//do something funny
}

Is there a way to clean this up a little?
3  Community / Exhibition / Gallery / Re: Smart Home Manegment System on: May 28, 2011, 08:38:51 am
Hey man,

Sounds very interesting. But are you then planning on an Arduino in every room?
My quick thoughts are a separate arduino in each room with an ethernet shield. Ofcourse xbee is possible too but it would be fairly costly.

For the relay shield, I'm doing kind of the same to automate my greenhouse. Which is not too far off from your idea with controlling temperature, lights etc. I'm driving my relays with 12v, but as I had a pile of optocouplers at home I'm using those. In the past I used transistors which worked a charm.

Anyways I'm very interested about how you are going to make a system for the whole house.
4  Using Arduino / Installation & Troubleshooting / Re: External power supply usage? on: May 25, 2011, 11:30:35 am
Sounds good, ill already try it with a simple led sketch. External power and then hook up the usb.
Thanks for the tips!
5  Community / Exhibition / Gallery / Re: Greenhouse automation on: May 24, 2011, 08:04:37 pm
Hey Ben,
I was also thinking about doing that but as I don't have an ehternet shield and my friend didn't want to spend more money when he is only gonna look at the data at home.
Anyways that was my first goal, maybe even intergrate it with google charts but as it wasn't needed and costs more that option was deleted.

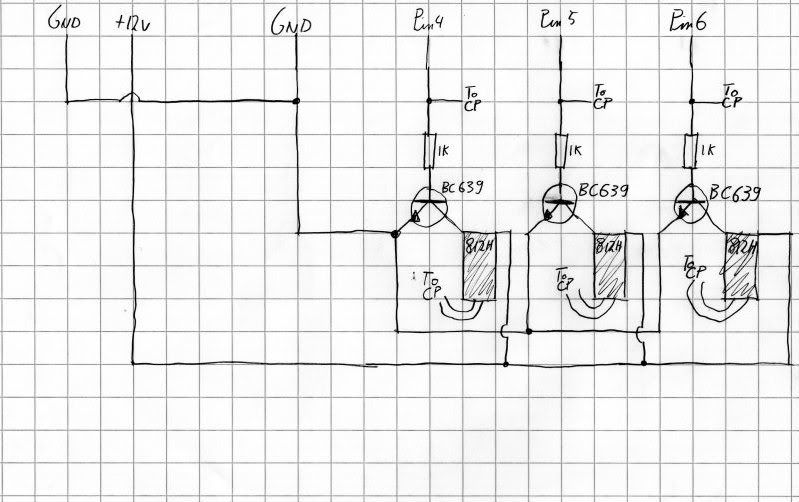

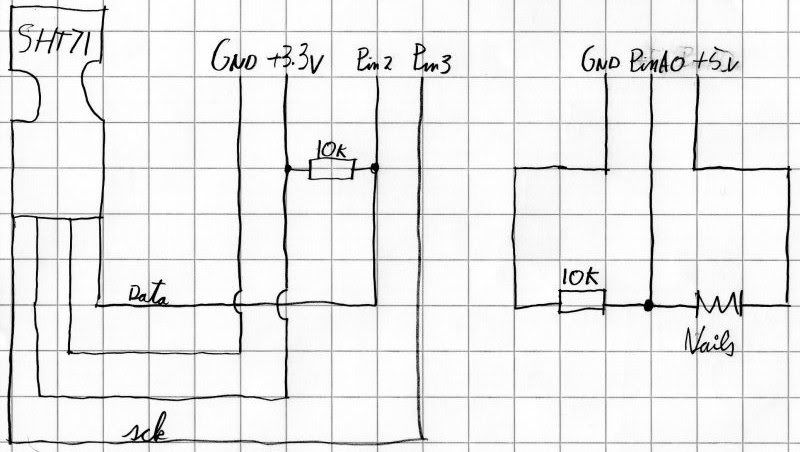

So to get back to the project, I redesigned the circuit to use a pair of shift registers for the control panel and due to that I decided to give the panel it's own voltage regulator so I wouldn't bother the Arduino too much.
Just to be sure I double checked the current tolerances on all the parts of the relay board, I just got a lamp and it draws 2.2A at 250V so that should easily work.
And I swapped the transistors on the relay board for optocouplers as I had a pile of them lying around the house. I checked the current limits and I have about 20mA overhead.

On the code side the only thing I have changed is in the interval.

Before:
  If (5 minutes have passed) {
    Check temp, humidity and soil moistness
  }
  If (temp > 28) {
     Turn fan on
  }
  etc......
Now:
  If (5 minutes have passed) {
    Check temp, humidity and soil moistness
    If (temp > 28) {
      Turn fan on
    }
  etc......

Just so the Arduino only waits for the 5 minutes and not for stats that don't change anyways.
Anyways here's the code and schematics. Parts are en route so physical photos this weekend I hope.
Code:

#include <Sensirion.h>
#include <Time.h>

//Temperature and Humidity sensor
const uint8_t dataPin  =  2;
const uint8_t clockPin =  3;

float temperature;
float humidity;
float dewpoint;

Sensirion tempSensor = Sensirion(dataPin, clockPin);

//Temperature and Humidity interval time
long previousMillis = 0;
long interval = 300000;

//Soil moisture sensor
int moistureSensor = A0;
int moisture_val;

//Serial stuff
char buffer[5];

//Relay output pins
const int lightPin = 4;
const int waterPin = 5;
const int fanPin = 6;
const int humPin = 7;

//Control panel shift register pins and ON / OFF data string
int stats[15];
int previousstats[15];
const int data = 8;
const int clock = 9;
const int latch = 10;

//Light status
int lightstatus = 0;
int lastlightstatus = 0;

//Fan status
int fanstatus = 0;
int lastfanstatus = 0;

//Humidifier status
int humtime = 1000; //In milliseconds
int humstatus = 0;
int lasthumstatus = 0;

//Watering status
int watertime = 1000; //In milliseconds
int waterstatus = 0;
int lastwaterstatus = 0;

void setup()
{
  Serial.begin(9600);
  setTime(20,7,0,17,5,2011);
  pinMode(lightPin, OUTPUT);
  pinMode(waterPin, OUTPUT);
  pinMode(fanPin, OUTPUT);
  pinMode(humPin, OUTPUT);
  pinMode(data, OUTPUT);
  pinMode(clock, OUTPUT);
  pinMode(latch, OUTPUT);
}

void loop()
{
  unsigned long currentMillis = millis();
  time_t t = now();

  //Check Temperature.... and report every 5 minutes
  if(currentMillis - previousMillis > interval) {
    previousMillis = currentMillis;

    tempSensor.measure(&temperature, &humidity, &dewpoint);

    moisture_val = analogRead(moistureSensor);

    Serial.print("Temperature: ");
    Serial.print(temperature);
    Serial.print(" C, Humidity: ");
    Serial.print(humidity);
    Serial.print(" %, Dewpoint: ");
    Serial.print(dewpoint);
    Serial.print(" C, Soil Moisture: ");
    Serial.println(moisture_val);
    Serial.print("#S|TEMPLOG|[");
    Serial.print(itoa((temperature), buffer, 10));
    Serial.print(";");
    Serial.print(itoa((humidity), buffer, 10));
    Serial.print(";");
    Serial.print(itoa((dewpoint), buffer, 10));
    Serial.print(";");
    Serial.print(itoa((moisture_val), buffer, 10));
    Serial.println("]#");
    update();
  }


  /////Light trigger
  if((0 <= hour(t)) && (18 > hour(t))) { ///Between which hours on
    lightstatus = 1;
  }
  if((18 <= hour(t)) && (24 >= hour(t))) { ///Between which hours off
    lightstatus = 0;
  }
  //Light compare, set status and report
  if(lightstatus != lastlightstatus) {
    if(lightstatus == 1) {
      Serial.println("#S|ACTIONLOG|[Light On]#");
    }
    if(lightstatus == 0) {
      Serial.println("#S|ACTIONLOG|[Light Off]#");
    }
    digitalWrite(lightPin, lightstatus);
    lastlightstatus = lightstatus;
  }
}


  void update() {
  /////Fan trigger
  if(temperature <= 25 || humidity <= 60) { ///Turn off threshold
    fanstatus = 0;
  }
  if(temperature > 28 || humidity > 80) { ///Turn on threshold
    fanstatus = 1;
  }
  //Fan compare, set status and report
  if(fanstatus != lastfanstatus) {
    if(fanstatus == 1) {
      Serial.println("#S|ACTIONLOG|[Fan On]#");
    }
    if(fanstatus == 0) {
      Serial.println("#S|ACTIONLOG|[Fan Off]#");
    }
    digitalWrite(fanPin, fanstatus);
    lastfanstatus = fanstatus;
  }



  /////Water trigger
  if(moisture_val > 1000) { ///Turn off threshold
    waterstatus = 0;
  }
  if(moisture_val < 850) { ///Turn on threshold
    waterstatus = 1;
  }
  //Pump compare, set status and report
  if(waterstatus != lastwaterstatus) {
    if(waterstatus == 1) {
      Serial.println("#S|ACTIONLOG|[Pump On]#");
      digitalWrite(waterPin, waterstatus);
        delay(watertime);
        waterstatus = 0;
        Serial.println("#S|ACTIONLOG|[Pump Off]#");
        digitalWrite(waterPin, waterstatus);
        lastwaterstatus = waterstatus;
      }
   }



  ////Humidifier trigger
  if(humidity > 70) { ///Turn off threshold
    humstatus = 0;
  }
  if(humidity < 50) { ///Turn on threshold
    humstatus = 1;
  }
  //Humidifier compare, set status and report
  if(humstatus != lasthumstatus) {
    if(waterstatus == 1) {
      Serial.println("#S|ACTIONLOG|[Humidifier On]#");
      digitalWrite(humPin, humstatus);
        delay(humtime);
        humstatus = 0;
        Serial.println("#S|ACTIONLOG|[Humidifier Off]#");
        digitalWrite(humPin, humstatus);
        lasthumstatus = humstatus;
      }
   }



  /////Status LEDs
  ////These store the ON and OFF data in the 'stats' string to be used when shifting out
  //Temperature
  if((temperature < 22) || (temperature > 28)) {
    stats[2] = 0;
    stats[3] = 1;
  }
  else {
    stats[2] = 1;
    stats[3] = 0;
  }
  //Humidity
  if((humidity < 60) || (humidity > 80)) {
    stats[4] = 0;
    stats[5] = 1;
  }
  else {
    stats[4] = 1;
    stats[5] = 0;
  }
  //Soil
  if((moisture_val < 850) || (moisture_val > 1000)) {
    stats[6] = 0;
    stats[7] = 1;
  }
  else {
    stats[6] = 1;
    stats[7] = 0;
  }
  ////Checks if update to control panel is needed
  //And copies 'stats' string charachter by character to 'previousstats'
  if(stats != previousstats) {
    led();
    for(int z = 1; z<15; z++) {
      previousstats[z] = stats[z];
    }
  }


}


////Changes stats string to bits and shifts them out
void led() {
  byte bitBuffer1 = 0;
  bitWrite(bitBuffer1, 1, stats[1]);
  bitWrite(bitBuffer1, 2, stats[2]);
  bitWrite(bitBuffer1, 3, stats[3]);
  bitWrite(bitBuffer1, 4, stats[4]);
  bitWrite(bitBuffer1, 5, stats[5]);
  bitWrite(bitBuffer1, 6, stats[6]);
  bitWrite(bitBuffer1, 7, stats[7]);
  byte bitBuffer2 = 0;
  bitWrite(bitBuffer2, 1, stats[8]);
  bitWrite(bitBuffer2, 2, stats[9]);
  bitWrite(bitBuffer2, 3, stats[10]);
  bitWrite(bitBuffer2, 4, stats[11]);
  bitWrite(bitBuffer2, 5, stats[12]);
  bitWrite(bitBuffer2, 6, stats[13]);
  bitWrite(bitBuffer2, 7, stats[14]);
  digitalWrite(latch, LOW);
  shiftOut(data, clock, MSBFIRST, bitBuffer2);
  shiftOut(data, clock, MSBFIRST, bitBuffer1);
  digitalWrite(latch, HIGH);
}

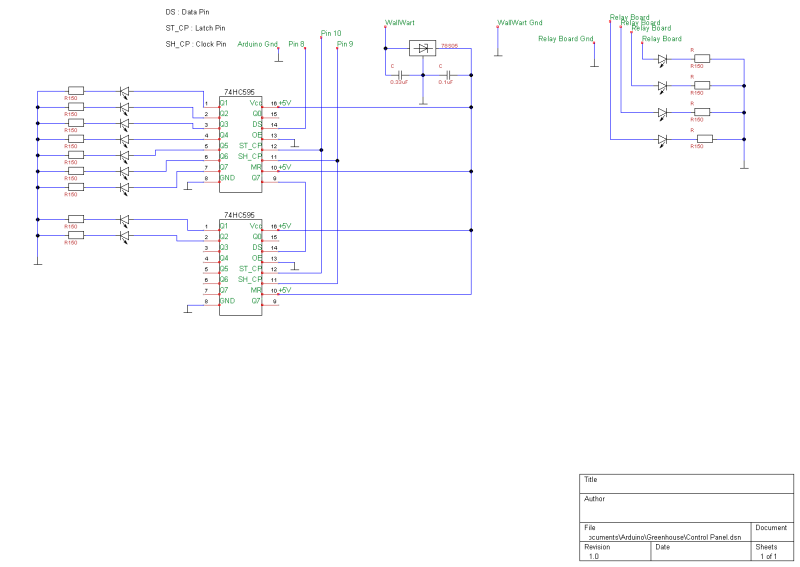

Control Panel:

Relay board:
