Well done. I will make my own PCB version.
Making my own PCB is one of the most satisfying things that I've done.
What is the board material? Looks very thick in that picture.
Why did only make Vin, +5 available? You will add seperate 3.3V regulator if needed?

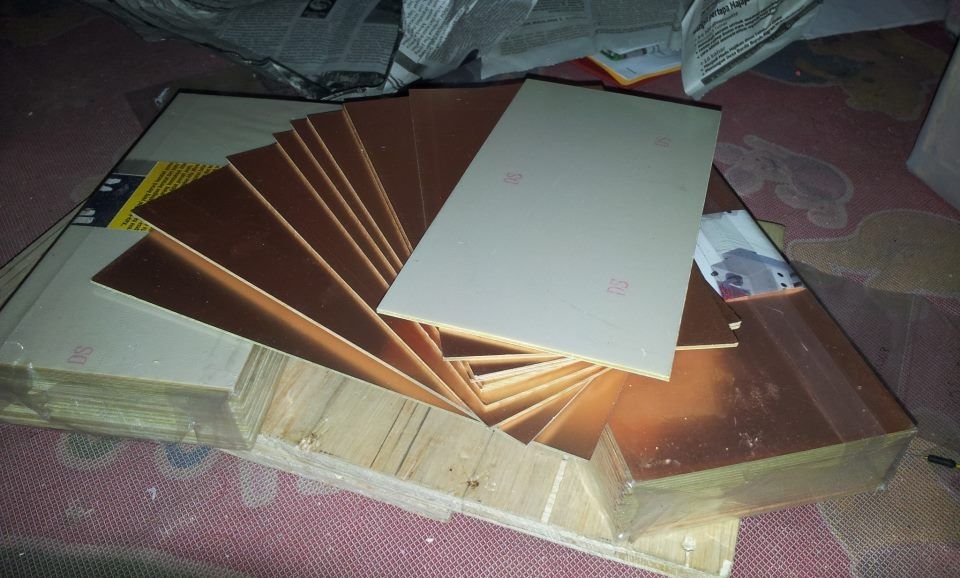

I believe its Paper Phenolic, its written PP on the packaging. Yeah it's very thick, had to use a hand saw.
I've got two rails for +5V and ground. So far I've not found the need of using 3.3V yet but if the day comes I'll make another PCB
I'm still in the learning process.
Congreats, you made a very good and comprehensive "how to". It even made me want to make my own PCB's. I've been looking into PCD milling, but you explanation made it very simple.
Oh, one question. Why din't you just use the female headers with long legs? Now you use male and female, can't really see why?
Well done and a very slick tutorial.
I wanted to use female headers with long pins but couldn't find them in my local electronics supplies store. I could have bought it online but it's just a few small parts so why the hassle right.
Thanks for the links bro
I guess I'll buy them in larger amounts for future projects.
