I am building a bench supply.  I have a 36 volt 9 amp supply that I was going to use as a voltage source.  But it doesn't have negative voltage.  I came across this circuit for creating negative voltage:


So that's good.  I can use fixed voltage regulators for many voltages but it would be nice to have an adjustable voltage as well.  So I am looking at this from a data sheet for the  LM79xx:
Here is the link to the data sheet:http://www.hep.upenn.edu/SNO/daq/parts/lm7915.pdf

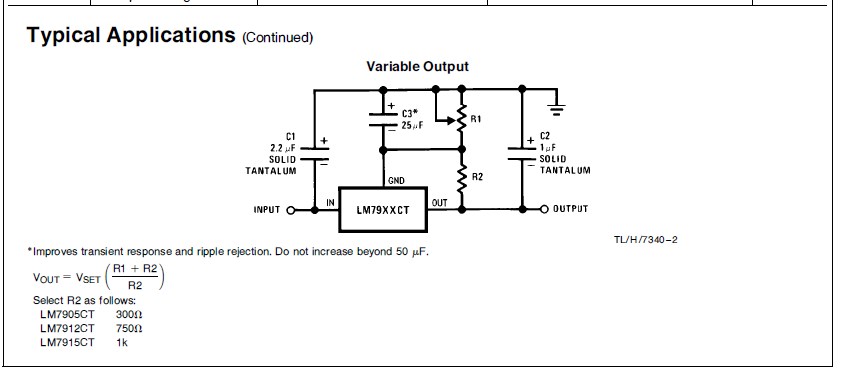

and this is the part I am having some difficulty with:


Look at the bottom of the page.  There is a set of values for R2 at different voltages.  Using these values I need to find R1 but the numbers I am getting are impossible.  So I suspect I don't grok what Vset is and the only place you will find Vset in the data sheet is right there.  I am using 36 volts for the supply, that is what I thought Vset would be, and I want a negative 15 volts out.  How is this done?  I keep coming up with a negative value for R1 and unless things have changed a lot I don't think you can get a negative resistance potentiometer.
Logged

Offline Offline
Edison Member
*
Karma: 56
Posts: 2182
Now, More Than Ever
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Sorry, joseph_m, but that circuit, as drawn, is dead in the water.
Logged

"Hello, I must be going..."
"You gotta fight -- for your right -- to party!"
Don't react - Read.
"Who is like unto the beast? who is able to make war with him?"

Austin, TX
Offline Offline
Faraday Member
**
Karma: 63
Posts: 6049
Baldengineer
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

The circuit is a voltage divider where the voltage on R2 is a set voltage (whatever the regulator's fixed output).  So if you're using the -5V supply, Vset is -5V.
Logged

Capacitor Expert By Day, Enginerd by night.  ||  Personal Blog: www.baldengineer.com  || Electronics Tutorials for Beginners:  www.addohms.com

Offline Offline
Jr. Member
**
Karma: 0
Posts: 58
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Run the number with Vset at -5 volts and that is what you want Vout to be and you get zero for your resistance of R1.  Run the numbers you will see what I mean.
Logged

Offline Offline
Jr. Member
**
Karma: 0
Posts: 58
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Sorry, joseph_m, but that circuit, as drawn, is dead in the water.

Well that's helpful.  Want to elaborate on that?  It came right out of the data sheet.
Logged

Austin, TX
Offline Offline
Faraday Member
**
Karma: 63
Posts: 6049
Baldengineer
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

Run the number with Vset at -5 volts and that is what you want Vout to be and you get zero for your resistance of R1.  Run the numbers you will see what I mean.
Huh?  Why would you be building a variable output circuit when the fixed regulator already has the voltage you want.  Of course you get 0ohm, because you wouldn't need a divider to -5V out of a -5V supply.

Sorry, joseph_m, but that circuit, as drawn, is dead in the water.
Well that's helpful.  Want to elaborate on that?  It came right out of the data sheet.
The first circuit.  Where did you get it?
Logged

Capacitor Expert By Day, Enginerd by night.  ||  Personal Blog: www.baldengineer.com  || Electronics Tutorials for Beginners:  www.addohms.com

SF Bay Area (USA)
Online Online
Tesla Member
***
Karma: 106
Posts: 6367
Strongly opinionated, but not official!
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

The first circuit will (might) output +15V with respect to its GND on the +15V side, OR -15V wrt GND on the -15V side, but there isn't any way that +15V will be 30V above -15V output, which is also necessary for a bipolar supply.
Logged

Toronto, Canada
Offline Offline
Edison Member
*
Karma: 2
Posts: 1234
"Keep it R.E.I.L. - "Research, Experiment, Investigate and Learn"
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

@joseph_m

That first schematic in your post ? What the ?  smiley-eek  Really ?

I agree with Runaway Pancake here.

Let see... you have 36 V and you want to divide by 2 ? Correct ?   Like 36 / 2 = 18 V.

I just have a schematic that do just that. I included in this post.







* Voltage_spitter.jpg (37.27 KB, 1024x663 - viewed 18 times.)
