Topic: transistor switch logic . very hard to solve this scenario. (Read 4938 times) previous topic - next topic

dc42

The resistors go the other way round (470 ohm to the lower transistor, 100 ohm to the upper transistor), and both the 1.5V and the 3.5V need to be increased to 5V if you want to feed about 3.5V to the motor.
Formal verification of safety-critical software, software development, and electronic design and prototyping. See http://www.eschertech.com. Please do not ask for unpaid help via PM, use the forum.

HazardsMind

Yes but swap the resistors around, and provide 5volts (not 1.5v) to the base and 6-9volts(not 3.5v) to the actual power source.

Edit: dc42 beat me to it.
My GitHub:
https://github.com/AndrewMascolo?tab=repositories

jaylisto


The resistors go the other way round (470 ohm to the lower transistor, 100 ohm to the upper transistor), and both the 1.5V and the 3.5V need to be increased to 5V if you want to feed about 3.5V to the motor.


thanks for the help, but my problem is in the robots motor. it only has lower than 4v i think for its dc motor, and i want to amplify it to a bigger volts. and replacing its motor to a bigger motor,. 6v motor.

pls help me. read my past post for more info. thanks.
jaylisto

HazardsMind

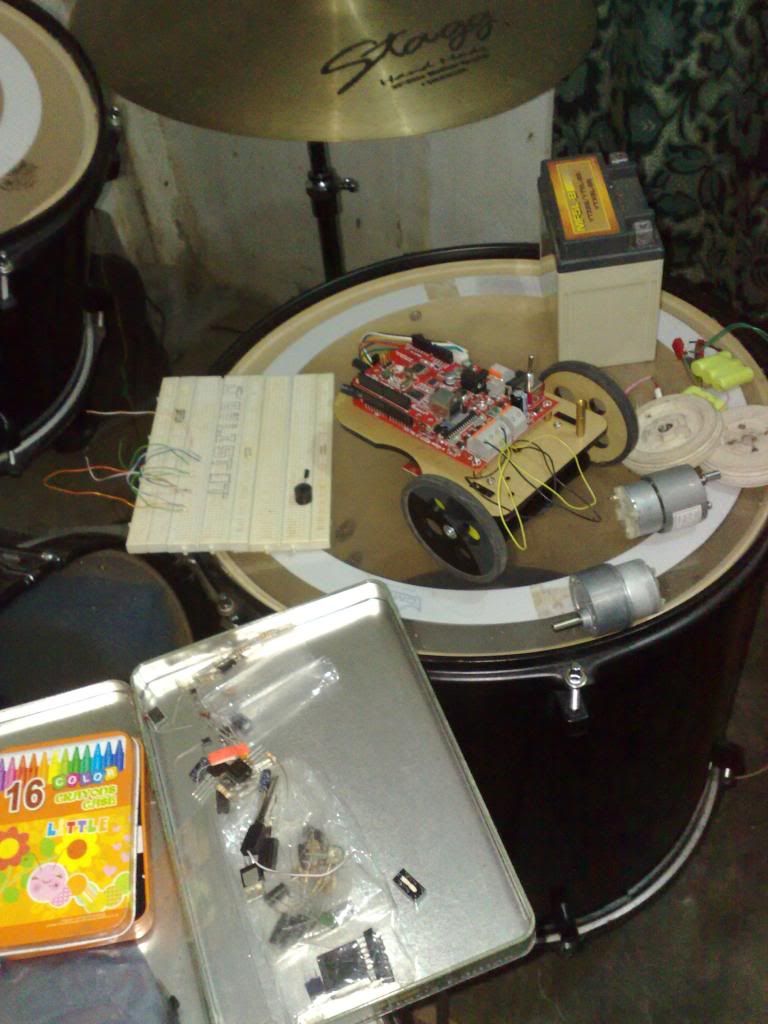

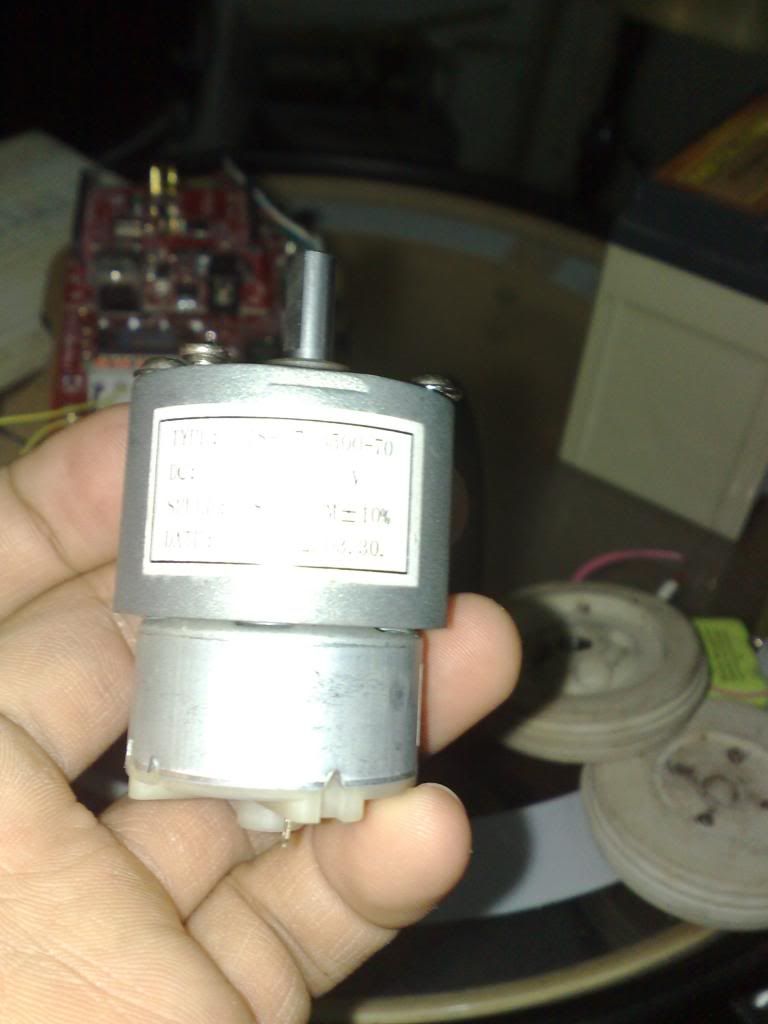

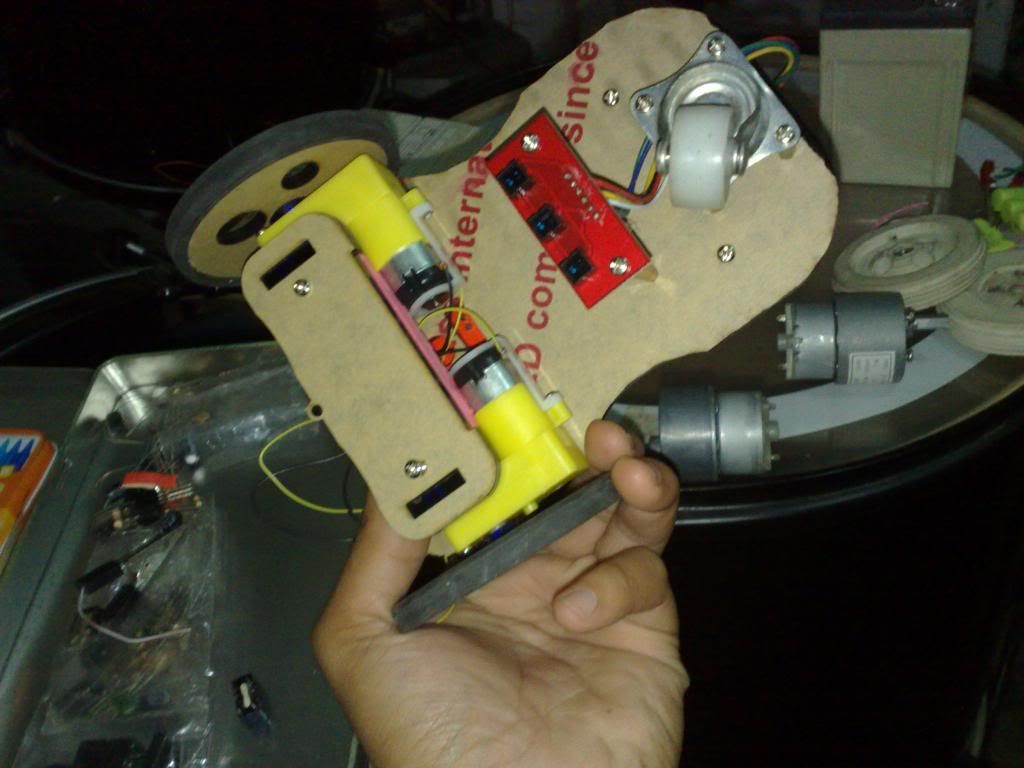

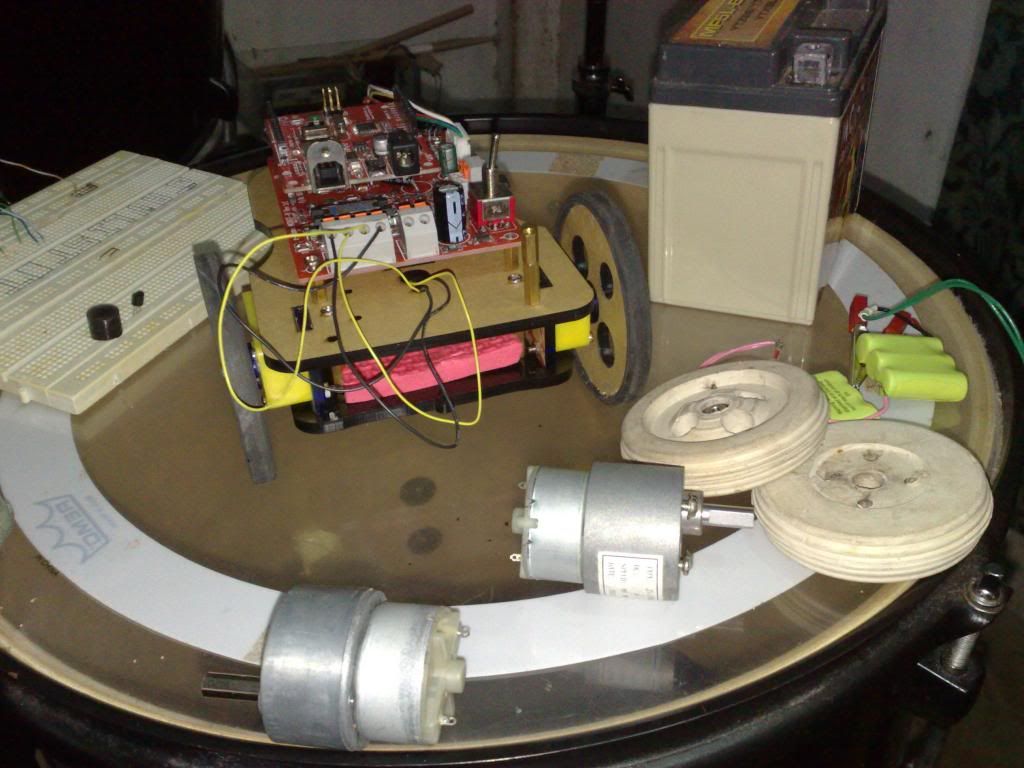

Can you show us a picture? What is this motor in, does it have its own housing, holding it in place. You might not be able to change it.

Post a picture, that way we will have a better understanding of what your trying to do.
My GitHub:
https://github.com/AndrewMascolo?tab=repositories

jaylisto

#34
Jan 30, 2013, 04:22 am Last Edit: Jan 30, 2013, 04:24 am by jaylisto Reason: 1

Can you show us a picture? What is this motor in, does it have its own housing, holding it in place. You might not be able to change it.

Post a picture, that way we will have a better understanding of what your trying to do.


i want to amplify the volts produced by the line follower to power its dc motor, since its to weak to carry my sla 7v battery so i will modify my dc motor to a bigger and stronger one,. the logic of hbridge is correct but the hbridge wont work at all.






the power source of the robot is also from the sla battery.
jaylisto

HazardsMind

My GitHub:
https://github.com/AndrewMascolo?tab=repositories

jaylisto


Those motors are going to require a lot of current, your best bet now would be to get a actually Hbridge board. http://item.mobileweb.ebay.com/viewitem?itemId=251080674810&index=1&nav=SEARCH&nid=83702557639


you know i cant, because im in the philippines, im in the part of the philippines where those items are not available.

i would travel far away to the capital manila to get those items.

is their any one that can help me using only basic transistors?

i think i will not found the answer any more. for ever. i am loosing my hope now =(
jaylisto

AWOL

Can you get hold of DPDT relays (or SPDT relays)?
Use those instead of the H-bridge.
I think I've already suggested this.
"Pete, it's a fool looks for logic in the chambers of the human heart." Ulysses Everett McGill.
Do not send technical questions via personal messaging - they will be ignored.

PeterH


its to weak to carry my sla 7v battery


Hardly surprising - that battery is absurdly oversize for a 'bot that small. How many months were you hoping this thing would run between recharges?
I only provide help via the forum - please do not contact me for private consultancy.



AWOL

Quote
what is the difference between the normal transisotr switch and a darlington connection?

Much higher gain
"Pete, it's a fool looks for logic in the chambers of the human heart." Ulysses Everett McGill.
Do not send technical questions via personal messaging - they will be ignored.

jaylisto


Can you get hold of DPDT relays (or SPDT relays)?
Use those instead of the H-bridge.
I think I've already suggested this.



i searched it in google, the dpdt relay.
i think that is not possible. the dc motor continues to turn in a direction if there is no voltage in the relay...
jaylisto

jaylisto


Quote
what is the difference between the normal transisotr switch and a darlington connection?

Much higher gain


thanks for the fast reply.

the darlington has no resistor in the base?
jaylisto

retrolefty



Can you get hold of DPDT relays (or SPDT relays)?
Use those instead of the H-bridge.
I think I've already suggested this.



i searched it in google, the dpdt relay.
i think that is not possible. the dc motor continues to turn in a direction if there is no voltage in the relay...


You need to use two relays, one DPDT to determine forward/reverse and a one SPST to to perform the stop/go command, this second relay's contacts is simply wired in series with the positive voltage coming from the motor battery.
