Author Topic: Oscilloscope recommendations <= $300 USD  ?  (Read 3534 times)
0 Members and 1 Guest are viewing this topic.
New York, NY
Offline Offline
Newbie
*
Karma: 0
Posts: 8
Arduino Crow
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

I really want an OSCILLOSCOPE for Xmas.
My budget cannot exceed $300 (USD).  I've got
no problem buying used or new.  I just want a fairly decent
O-scope that won't outgrow me in a year or two.  Something
thrifty, easy to use, easy to read, durable, and accurate.

Any suggestions?
(Please post links or recommendations):


Thanks again!  smiley-wink
« Last Edit: December 20, 2010, 05:40:13 pm by MikeEMEco » Logged

Left Coast, CA (USA)
Offline Offline
Brattain Member
*****
Karma: 361
Posts: 17263
Measurement changes behavior
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

 Well I'm an old school guy and analog scopes are what I learned and grew up with and I'm not likely to change to digital scopes. So what I would do if I didn't already own a nice scope would be to try and find a nice used analog Tektronics or HP scope. I have a Tek 2213 dual channel 60mhz scope and like it a lot. But again that's due to my specific experiance. I'm sure some of the digital scopes have very nice features and can do things a analog scope can't, so take my recommendation as just one persons preference. As far as reliablity and quality both Tek and HP analog scopes were designed and priced for industrial use and were among the finest electronic equipment built in their era.

Lefty

« Last Edit: December 20, 2010, 06:25:23 pm by retrolefty » Logged

Central MN, USA
Offline Offline
Tesla Member
***
Karma: 72
Posts: 7176
Phi_prompt, phi_interfaces, phi-2 shields, phi-panels
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

I rather prefer analog scopes to digital ones on one account: analogs add up their brightness if you get multiple peaks (about same size and width) to pile up on the display. On a digital scope, there is no such effect. In my x-ray diffraction experiments, I use that to visually see the x-ray counts on an analog scope. More counts=brighter peaks. Digital scopes just don't do this (yet).

On the other hand I love digital scopes in teaching intro classes. The tektronix scopes we use have USB slots. We can reset all settings with "restore config" over a flash drive. You know how itchy college student fingers can get, in a lab. Bless the developers! ;D
Saving data is also pretty much standard on a digital scope.
Logged


Austin, TX
Offline Offline
Faraday Member
**
Karma: 71
Posts: 6144
Baldengineer
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

There are plenty of deals on eBay on both Analog and Digital scopes.  Here are just a few things to keep in mind:

1.  Digital scopes are (almost) impossible to service yourself.  There are three main components:  front-end amplifier, a/d, and memory controller.  These are almost always proprietary components.  If anything on the acquisition board fails, you probably won't be able to repair it.

2.  Analog scopes are going to be older, but could still be possible to service yourself.

3.  Most used scopes do not come with any sort of probes.

4.  If this is your only oscilloscope, avoid the "Pocket DSO."  Their $99 price is attractive, but if it is your only scope you may be disappointed.


Lastly, just fuel the flamewar, I am a proponent of digital scopes.  (However, my bias is skewed.  I've worked for 2 of the 3 biggest scope companies, so I can do things with them most people can't.)
Logged

Capacitor Expert By Day, Enginerd by night.  ||  Personal Blog: www.baldengineer.com  || Electronics Tutorials for Beginners:  www.addohms.com

Indonesia
Offline Offline
Full Member
***
Karma: 0
Posts: 108
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Seedsstudio have pocket DSO.

There's e-bay for another oscilloscope...

Jeckson
Logged

Phoenix, Arizona USA
Offline Offline
Faraday Member
**
Karma: 39
Posts: 5557
Where's the beer?
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

Quote
Lastly, just fuel the flamewar, I am a proponent of digital scopes.

I've got a 100 MHz 2-channel Fluke Combiscope - how do your feel about those?

 smiley-wink

If you are willing to buy used, I would only buy it if it came from a reputable dealer, or I could test it myself. Get yourself a pair of 100 MHz probes, and if you are able to test it yourself, hook up to the test signal on the scope and run it thru the simple "paces"; check alignment, focus (see if you can adjust them), etc. Generally, if it passes the self-test good, its probably OK.

I've bought two used scopes this year; one was a Tek 2213 60 MHz scope (like retrolefty's) - I had to buy a new implosion shield from a guy in Czechoslovakia; it was fogged from some chemical spray - but other than that, perfect (he had it serviced and calibrated by Tek - gave me all the documentation for it, too). I bought it off a guy on Craigslist for $150.00. Later I picked up a rolling stand for it off a gal on the ElectroTech forums for $25.00.

A few months back I picked up the Fluke - its a combination analog and digital storage scope (hence the name "Combiscope"); it was calibrated as well. I picked it up at Apache Reclamation here in Phoenix; paid $200.00 for it.

Both are great scopes; I wouldn't jump into the first thing I saw, unless it was a great deal (both the Tek and Fluke I got were pretty good deals - though had I saved my money, I could've gotten a 50 MHz Rigol DSO or something).

 smiley
Logged

I will not respond to Arduino help PM's from random forum users; if you have such a question, start a new topic thread.

0
Offline Offline
Jr. Member
**
Karma: 0
Posts: 59
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

I wouldn't recommend it as your "go to" bench scope but I bought a Seeed Studio DSO Nano earlier this year for under $100 and I use it more than my "real" scope. smiley
Logged

Indonesia
Offline Offline
Full Member
***
Karma: 0
Posts: 108
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

There's also

RIGOL that slightly little bit more from 300US$.

Thank you
Jeckson

http://www.avrfreaks.net/index.php?name=PNphpBB2&file=viewtopic&t=101243
Logged

New York, NY
Offline Offline
Newbie
*
Karma: 0
Posts: 8
Arduino Crow
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

I know it's pretty much a budget unit for light duty apps.
a.k.a —  a very non traditional benchtop prof. scope like mentioned,
but out of curiosity; how do you guys & gals feel about the DSO-Nano?

http://www.seeedstudio.com/depot/dso-nano-v2-p-681.html?cPath=104_108

Logged

Land of Fruits &amp; Nuts
Offline Offline
Newbie
*
Karma: 0
Posts: 42
For every PhD, there's an equal and opposite PhD.
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

I'm a fan of Tek analog scopes.  I've owned a 465, 2215, and, as of today, a 2252.  Other than broken probes, I've never had trouble with any of them.  There are a lot of broken scopes on eBay, so read the postings very carefully.

Definitely avoid the cheap new sampling scopes like the DSO-NANO above.  They advertise it as having 1 MHz analog bandwidth.  That's quite a stretch as it samples at 1 MHz.  It's useful analog bandwidth is around 100 KHz.

My recommendation: Get a TEK 2215 60 MHz scope and a TEK 1240/1241 logic analyzer.  If you take your time and shop carefully, you should be able to get both for about $300 total.  Now you've got both analog and digital domains well covered for the kind of projects discussed around here.
Logged

China
Offline Offline
Full Member
***
Karma: 0
Posts: 111
Seeeduino Rocks the world
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

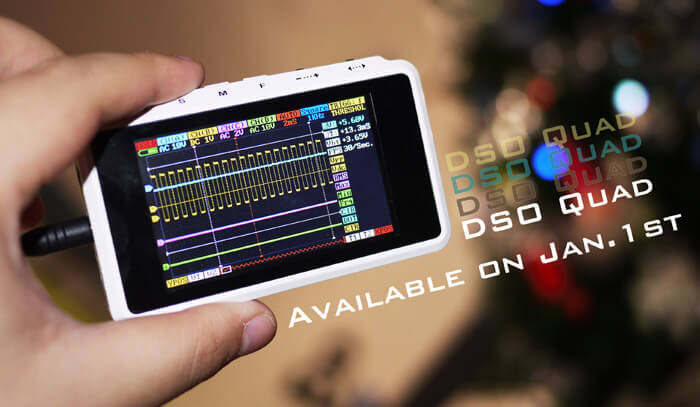

The New DSO Quad have 36Mhz bandwidth and support 4 channels. It will available in our store on Jan,1st.

Logged


CT, USA
Offline Offline
Sr. Member
****
Karma: 3
Posts: 446
Arduino rocks
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

I got my Rigol DS1052E (50MHz) a couple of months ago, and I have been very satisfied (especially after a firmware hack, it is a 100MHz OSC) now smiley

If I were you, I wouldn't choose a portable DSO. For just a little over $300, you could get a nice dedicated DSO like DS1052E.
Logged

Global Moderator
UK
Offline Offline
Brattain Member
*****
Karma: 291
Posts: 25898
I don't think you connected the grounds, Dave.
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Quote
If I were you, I wouldn't choose a portable DSO
My 1520 is about the size of a shoebox, which I consider to be pretty portable - did you mean "handheld"?   smiley-grin
« Last Edit: December 24, 2010, 01:23:41 pm by AWOL » Logged

"Pete, it's a fool looks for logic in the chambers of the human heart." Ulysses Everett McGill.
Do not send technical questions via personal messaging - they will be ignored.

CT, USA
Offline Offline
Sr. Member
****
Karma: 3
Posts: 446
Arduino rocks
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

Sorry I wasn't quite clear, you are absolutely correct. What I meant was a dedicated stand alone oscilloscope not those "pocket sized" that require a PC to operate.
Logged

0
Offline Offline
Full Member
***
Karma: 1
Posts: 185
www.rocketscream.com
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

If you are able to just add in about $60, I would suggest getting the Rigol DS1052E. That is probably the best for money scope out there. smiley
Logged
