I'm a big fan of the 1284 as I'm using it on a my custom boards for electronic props for compat games.

I like the idea of an Uno or Mega compatible footprint, although most people using 1284 are probably at a stage where they'd be designing a board, or using something like Crossroads Bobuino board. Still, it's a good idea as another option for people into this nice little MCU with the extra resources that will satisfy many larger projects.

I notice that SPI and UART are on incompatible pins than Uno. The Bobuino pinmapping makes these compatible, RXT/TXD on D0/D1 and SPI on D10-D13. You have SPI on D4-D7 and RX0/RX1 on D8/D9.

Surely a standard shield won't work with your pins as is? An SPI shield may do, if it uses the SPI header, rather than pins 10-13, although I believe the Ethernet shield uses Pin 10 for its SS, whereas you have SPI on D4-D7
« Last Edit: April 04, 2013, 07:03:20 pm by tack » Logged

SF Bay Area (USA)
Offline Offline
Tesla Member
***
Karma: 106
Posts: 6378
Strongly opinionated, but not official!
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Quote
Major version release? Now, I'm totally lost. The optiboot page authored by Bill
[ie, westfw] gives no indication of a version 5. So ????
https://code.google.com/p/optiboot/
The source repository (available via Mercurial, for historic reasons) is updated, but there are not any new .zip file downloads...
I guess I should fix that...
Logged

Global Moderator
Boston area, metrowest
Offline Offline
Brattain Member
*****
Karma: 443
Posts: 23834
Author of "Arduino for Teens". Available for Design & Build services. Now with Unlimited Eagle board sizes!
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

Bobuino has SCL/SDA in the correct place too.
Logged

Designing & building electrical circuits for over 25 years. Check out the ATMega1284P based Bobuino and other '328P & '1284P creations & offerings at  www.crossroadsfencing.com/BobuinoRev17.
Arduino for Teens available at Amazon.com.

the land of sun+snow
Offline Offline
Faraday Member
**
Karma: 149
Posts: 2790
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

Bobuino has SCL/SDA in the correct place too.
Offhand, how did you do this? On the UNO, pins A4,A5 can function either as analog
or I2C [or digital]. Considering the 1284 has 8 ADC channels [on pins 32..40] plus 2
separate pins for I2C [pins 22,23], how could you map these into the A4,A5 positions?
Logged

SF Bay Area (USA)
Offline Offline
Tesla Member
***
Karma: 106
Posts: 6378
Strongly opinionated, but not official!
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Quote
how could you map these into the A4,A5 positions?
Presumably he's talking about the new "R3" SCL/SDA pins to the left of AREF?
Logged

Offline Offline
Jr. Member
**
Karma: 2
Posts: 56
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

I'm a big fan of the 1284 as I'm using it on a my custom boards for electronic props for compat games.

I like the idea of an Uno or Mega compatible footprint, although most people using 1284 are probably at a stage where they'd be designing a board, or using something like Crossroads Bobuino board. Still, it's a good idea as another option for people into this nice little MCU with the extra resources that will satisfy many larger projects.

I notice that SPI and UART are on incompatible pins than Uno. The Bobuino pinmapping makes these compatible, RXT/TXD on D0/D1 and SPI on D10-D13. You have SPI on D4-D7 and RX0/RX1 on D8/D9.

Surely a standard shield won't work with your pins as is? An SPI shield may do, if it uses the SPI header, rather than pins 10-13, although I believe the Ethernet shield uses Pin 10 for its SS, whereas you have SPI on D4-D7

Please read the 1st post. The board that has been "released" was originally designed to be compatible with the bootloader and pins file from the mighty 1284, the concern was putting data pins in the right locations not any of the secondary (depending on your perspective) functions. The SMD board is much much different and conforms as tightly to arduino spec as I could. But an excellent observation none the less... Thanks!
« Last Edit: April 05, 2013, 02:10:34 am by jbaum81 » Logged

Global Moderator
Boston area, metrowest
Offline Offline
Brattain Member
*****
Karma: 443
Posts: 23834
Author of "Arduino for Teens". Available for Design & Build services. Now with Unlimited Eagle board sizes!
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

Bobuino has jumpers that allow A4/A5 to connect to D18/D19, or that allow SCL/SDA to connect to D18/D19. SCL/SDA are also brought to the new SCL/SDA location, and to another set of pins with the other extra pins that the 1284 offers.
http://www.crossroadsfencing.com/BobuinoRev17/ATMega1284_thruhole_sch1.png
Logged

Designing & building electrical circuits for over 25 years. Check out the ATMega1284P based Bobuino and other '328P & '1284P creations & offerings at  www.crossroadsfencing.com/BobuinoRev17.
Arduino for Teens available at Amazon.com.

0
Offline Offline
Newbie
*
Karma: 0
Posts: 20
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Hello jbaum,

Reserved for Mega Junior, 1284 SMD.

Untested Schematic and board layouts attached.

The zip file for the SMD version is empty. smiley

Regards,
madhu.
Logged

Offline Offline
Jr. Member
**
Karma: 2
Posts: 56
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Hello jbaum,

Reserved for Mega Junior, 1284 SMD.

Untested Schematic and board layouts attached.

The zip file for the SMD version is empty. smiley

Regards,
madhu.

hmm so it is, sorry about that. I'm at work now give me a few hours and I'll upload the revision A schematic along with the new version 2.0 dip version and revision b of the SMD version. Now both include jumpers for I2c pullup, disconnect jumper for the d13 led, disconnect jumper for DTR/RESET, and jumpers to switch between analog and i2c for better compatibility.
Logged

Offline Offline
Jr. Member
**
Karma: 2
Posts: 56
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Missing eagle files are up for the SMD Rev A board.

Also uploaded SMD Rev B, and Version 2 of Mega Junior, 1284.

Mega Junior,1284 BB is built and tested.

See updated posts at the top of this thread.
Logged

Offline Offline
Jr. Member
**
Karma: 2
Posts: 56
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

V2 and SMD rev b tested and good to go. I have 4 extra of each right now if anyone want's one. Asking $60 plus shipping which covers my cost on parts.

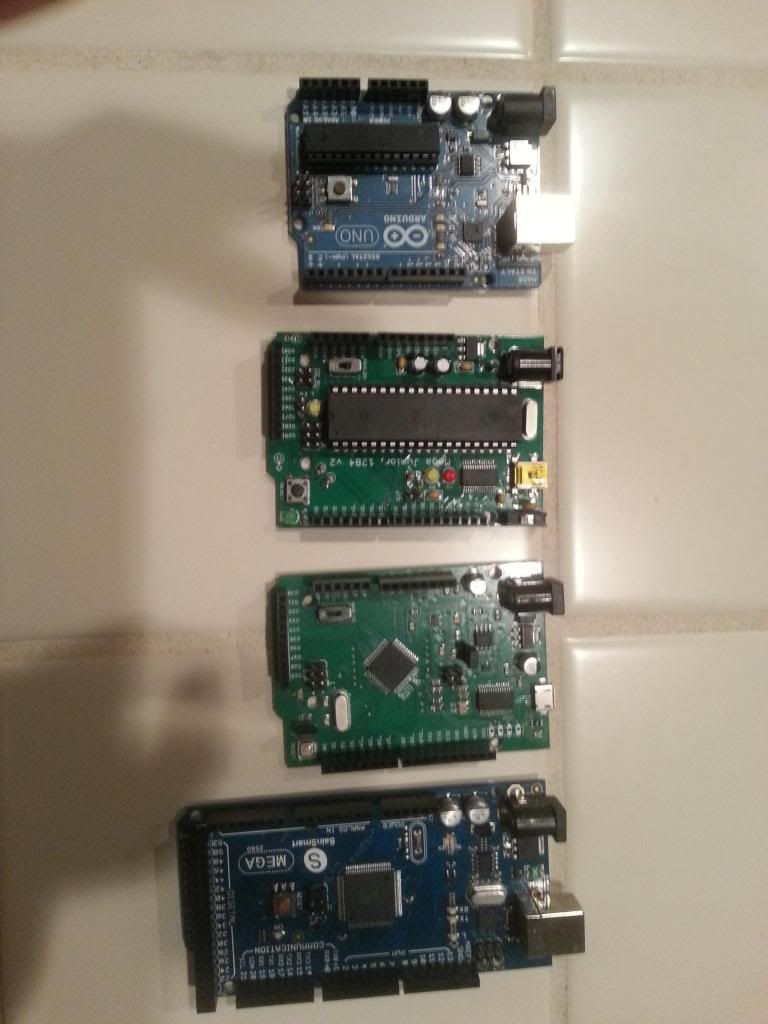

Below is a reference picture for size, both V2 and SMD have identical dimensions and they are about 10 - 15mm longer than the uno, otherwise the same dimensions as uno.

Logged

Zurich
Offline Offline
Newbie
*
Karma: 0
Posts: 5
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

Hi guys,
I have one question concerning the pins_arduino.h file.

I'm using the mighty1284p boot loader at for an 8MHz Arduino clone running an Atmega1284p as well.
Is the pins_arduino.h file compiled into the bootloader, so I need to recompile the bootloader after modifying, or is pins_arduino.h
used to compile each sketch in the Arduino IDE, so I will see any adjustments made to the file directly.

I have an Arduino close created based on a 44pin ATMega1284p, and of course since the pinout is different, the Blink Demo is not yet blinking.

Has anybody modified the pins_arduino.h already for the 44pin TQFP Version of the chip already?

Thanks for and hints pointing into the right direction,
Michael.
Logged

Kind Regards/Mit freundlichen Grüssen,
Dr. Michael Kroll.
---
Blog: http://www.mkroll.mobi
Forum: http://forum.mkroll.mobi
Twitter: @dr_m_kr

Global Moderator
Boston area, metrowest
Offline Offline
Brattain Member
*****
Karma: 443
Posts: 23834
Author of "Arduino for Teens". Available for Design & Build services. Now with Unlimited Eagle board sizes!
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

pins_arduino.h is used to compile each sketch in the Arduino IDE.

it does not vary for DIP vs TQFP. D0 is the same port/bit no matter what. might be a different physical pin, the software does not know/care about that.
Logged

Designing & building electrical circuits for over 25 years. Check out the ATMega1284P based Bobuino and other '328P & '1284P creations & offerings at  www.crossroadsfencing.com/BobuinoRev17.
Arduino for Teens available at Amazon.com.

Rapa Nui
Offline Offline
Edison Member
*
Karma: 53
Posts: 1990
Pukao hats cleaning services
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

pins_arduino.h maps a physical mcu pin (ie PB3, PD4) to an "arduino-like" digital pin (Dx) or analog (AIx) pin. There are several variants of the mapping available, of course you may define another one if required..
Logged

the land of sun+snow
Offline Offline
Faraday Member
**
Karma: 149
Posts: 2790
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

The other half of the answer is, as far as I can tell, all of the "newer" maniac 1284 variants use
exactly the same optibootloader, and pins_arduino.h is only used when you compile a sketch for
the particular variant. You can verify this by using the different variants to compile sketches
for a chip with optiboot burned in, and checking which pins the signals go to.

In the boards.txt file, the one line shows the bootloader used, and the other indicates the
pins_arduino.h used when building sketches for the variant. The newer variants all use the
same optiboot hex file.

mighty_opt.bootloader.file=optiboot_atmega1284p.hex
mighty_opt.build.variant=standard

avr_developers.bootloader.file=optiboot_atmega1284p.hex
avr_developers.build.variant=avr_developers

bobuino.bootloader.file=optiboot_atmega1284p.hex
bobuino.build.variant=bobuino

Two of the variants use the older bootloader, but they use the standard
pins_arduino.h file.

mighty.bootloader.file=ATmegaBOOT_1284P.hex
mighty.build.variant=standard

mighty8.bootloader.file=ATmegaBOOT_1284P_8MHz.hex
mighty8.build.variant=standard
Logged
