I cant figure out how to hook up the arduino stamp to the usb adapter any help would be great.
|
|
|
|
|
Logged
|
|
|
|
|
Left Coast, CA (USA)
Offline
Brattain Member
Karma: 282
Posts: 15443
Measurement changes behavior
|
 |
« Reply #1 on: November 16, 2009, 02:03:19 am » |
Can you provide a link to the specific model (and who manufactures it) you are talking about?
Lefty
|
|
|
|
|
Logged
|
|
|
|
|
0
Offline
Newbie
Karma: 0
Posts: 33
Arduino rocks
|
 |
« Reply #2 on: November 16, 2009, 02:29:00 am » |
|
|
|
|
|
Logged
|
|
|
|
|
Global Moderator
UK
Online
Brattain Member
Karma: 143
Posts: 19368
I don't think you connected the grounds, Dave.
|
 |
« Reply #3 on: November 16, 2009, 03:17:16 am » |
|
|
|
|
|
Logged
|
Pete, it's a fool looks for logic in the chambers of the human heart.
|
|
|
|
0
Offline
Newbie
Karma: 0
Posts: 33
Arduino rocks
|
 |
« Reply #4 on: November 16, 2009, 10:08:31 am » |
I tried that and it didnt work :-/
|
|
|
|
|
Logged
|
|
|
|
|
Seattle, WA USA
Online
Brattain Member
Karma: 334
Posts: 36445
Seattle, WA USA
|
 |
« Reply #5 on: November 16, 2009, 10:58:19 am » |
What didn't work? Were you unable to upload sketches? Did the hardware go up in smoke?
|
|
|
|
|
Logged
|
|
|
|
|
0
Offline
Newbie
Karma: 0
Posts: 33
Arduino rocks
|
 |
« Reply #6 on: November 16, 2009, 12:02:00 pm » |
i was unable to upload anything to the board
|
|
|
|
|
Logged
|
|
|
|
|
Seattle, WA USA
Online
Brattain Member
Karma: 334
Posts: 36445
Seattle, WA USA
|
 |
« Reply #7 on: November 16, 2009, 12:06:41 pm » |
Were the power lights on?
Were you using the IDE to upload data?
Did the tx and rx lights flash?
Can you post a picture of your hardware setup?
|
|
|
|
|
Logged
|
|
|
|
|
0
Offline
Newbie
Karma: 0
Posts: 33
Arduino rocks
|
 |
« Reply #8 on: November 16, 2009, 12:25:36 pm » |

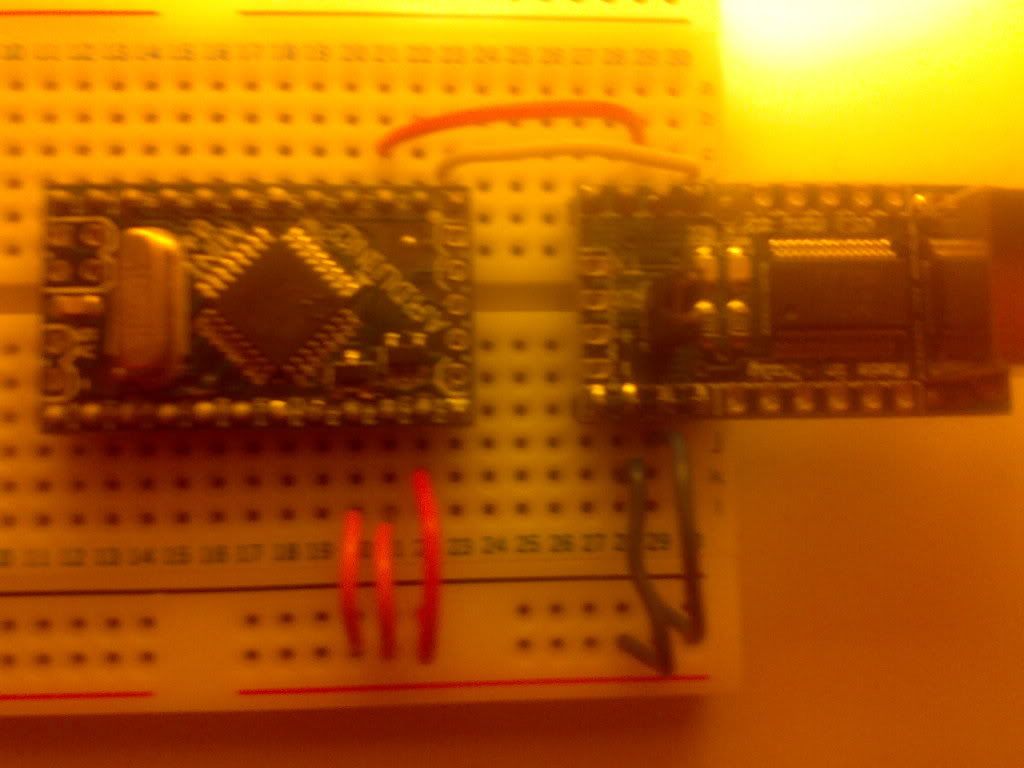

sorry for quality  there the picture and yes the RX and TX lights were flashing
|
|
|
|
|
Logged
|
|
|
|
|
Seattle, WA USA
Online
Brattain Member
Karma: 334
Posts: 36445
Seattle, WA USA
|
 |
« Reply #9 on: November 16, 2009, 02:06:05 pm » |
The TX and RX pins on the stamp are the first 2 pins on the top right, in your picture. You have wires to the first and third pins. Move the red wire to the RX pin, and maybe the stamp will have something to receive.
|
|
|
|
|
Logged
|
|
|
|
|
Seattle, WA USA
Online
Brattain Member
Karma: 334
Posts: 36445
Seattle, WA USA
|
 |
« Reply #10 on: November 16, 2009, 02:10:05 pm » |
It's hard to tell from the picture, but I'm not sure that the ground wire actually goes to ground. The 3 wires on the bottom of the stamp should be, from left to right, +V, +V, Gnd.
It's a good idea to be consistent in wire colors. +V wires should be red. Gnd wires should be black or green.
Wires all the same color cause confusion, head scratching, and smoke.
|
|
|
|
|
Logged
|
|
|
|
|
0
Offline
Sr. Member
Karma: 0
Posts: 375
|
 |
« Reply #11 on: November 16, 2009, 05:30:12 pm » |
I believe you need to add a reset button so you can reset the board before upload as the mini does not have auto-reset.
|
|
|
|
|
Logged
|
|
|
|
|
Seattle, WA USA
Online
Brattain Member
Karma: 334
Posts: 36445
Seattle, WA USA
|
 |
« Reply #12 on: November 16, 2009, 05:41:39 pm » |
The middle wire below the mini is connected to +V and Reset. Since the +V comes from the USB cable, unplugging it and plugging it back in performs the reset. Or, so says this: http://arduino.cc/en/Guide/ArduinoMini
|
|
|
|
|
Logged
|
|
|
|
|
0
Offline
Sr. Member
Karma: 0
Posts: 375
|
 |
« Reply #13 on: November 16, 2009, 06:35:59 pm » |
Since the +V comes from the USB cable, unplugging it and plugging it back in performs the reset. I wonder if the OP knows that? It also looks like the RX line is one hole too far to the left!
|
|
|
|
|
