Author Topic: Best 5volt power supply for atmega328...???  (Read 4385 times)
0 Members and 1 Guest are viewing this topic.
INDIA
Offline Offline
Sr. Member
****
Karma: 0
Posts: 382
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

I power my atmega 328 boards with 7805 regulator..
But the problem is there is too much of ripple in spite of using the recommended capacitors on its datasheet, which causes the Analog pins of the AVR arise noise...

Funny thing is that when I am using the small (TO-92 package) 7805 there is no ripple.... Tjis small one does not even need any filter caps... smiley-razz


So please suggest me a voltage regulator which will have minimal ripple on its output and will not get much hot by the amount of current which is drawn by the arduino and extra 2 small LEDs...
Logged

Toronto, Canada
Offline Offline
Edison Member
*
Karma: 2
Posts: 1234
"Keep it R.E.I.L. - "Research, Experiment, Investigate and Learn"
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

When you have the whole circuit connected with the Arduino with its sensors and additional circuits, what is the total current you think / measure ?  A TO-92 in my opinion is not powerfull enough to provide the necessary currents of your ardiuno project.

A TO-220 : LM7805 with a heatsink will be fine, as long the current consumtion is less than 1 A ( about 750 mA in total max )
Logged

Offline Offline
God Member
*****
Karma: 4
Posts: 813
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

How much do you want to pay? You can get arbitrarily good power for arbitrarily large sums of money :-)

I'd recommend a low-ripple regulator, and a significantly larger capacitor, and perhaps a HF choke. Say, a 2 uH choke, followed by a 470 uF capacitor.
Logged

INDIA
Offline Offline
Sr. Member
****
Karma: 0
Posts: 382
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

How much do you want to pay? You can get arbitrarily good power for arbitrarily large sums of money :-)

I'd recommend a low-ripple regulator, and a significantly larger capacitor, and perhaps a HF choke. Say, a 2 uH choke, followed by a 470 uF capacitor.

Paying is not the problem...
I can make one regulator with LM338 or LM317, and I have tested it,there is no ripple, atleast there no noise on the analog pin of the atmega like when I used the 7805..

But the problem is putting the regulator circuit in such a small place in my application..
There was somehow a little compact place for the LM317 but the problem is it get hotter that the 7805.. pulling 15volts to 5volts..

So I need something which wont get much hot, and will also fit in the place...
Logged

0
Offline Offline
Shannon Member
****
Karma: 214
Posts: 12443
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

If your raw supply is 15V why not use a 7808 followed by a 7805?  Share the heat, double the supply ripple rejection at least.  (Unless the ripple is due to the load?)
Logged

[ I won't respond to messages, use the forum please ]

INDIA
Offline Offline
Sr. Member
****
Karma: 0
Posts: 382
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

If your raw supply is 15V why not use a 7808 followed by a 7805?  Share the heat, double the supply ripple rejection at least.  (Unless the ripple is due to the load?)

Hummm...There again the circuit is getting a little bigger... smiley-sad

Well if I have to go your way, I will use a 7808 and then use a LM317 to drop that 8volt to 5volt... Thats because I found the LM317 is not generating much ripple, atleast it is not disturbing the analog pins of the atmega328... smiley


Another problem is that there is not much room for both of them, so I will have to pull them out of the main cabinet which is another problem.. smiley-sad and will have to run another wire into the cabinet with the raw supply into the cabinet as the Atmega328 is measuring raw voltage in its code... smiley-razz

Logged

Offline Offline
God Member
*****
Karma: 4
Posts: 813
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Well, "small space" and "low heat" pretty much work against each other. You'll need capacitors and inductors of a switching regulator to get the heat down.
Some options:
Four bucks, slightly bigger than a TO-220, 500 mA: http://search.digikey.com/us/en/products/R-78E5.0-0.5/945-1648-5-ND/2834904
Forty bucks, five amps, a lot bigger: http://search.digikey.com/us/en/products/PT6653D/PT6653D-ND/307301
Logged

INDIA
Offline Offline
Sr. Member
****
Karma: 0
Posts: 382
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Well I finally decided of pulling out the voltage regulator outside.

So as now it is outside I do not have any issue using the 7805 with inductor and bigger caps...And heat will not be of much issue not as I will be able to use a heatsink and the package will be in constant air flow position as it will be located on a motorcycle, so not much tension of heat.

So now if you have to use an inductor and caps what are the values you will use...??
Logged

Offline Offline
God Member
*****
Karma: 4
Posts: 813
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

With a 7805, you just need an output capacitor. Typically, minimum 10 uF, but more is generally better (up to a limit of a few thousand uF).

The reason I talked about inductors and capacitors is that you may want to change to a switching power regulator, which is a lot more efficient -- it doesn't "burn off" the excess voltage, like a linear does, but instead switches power on and off very quickly, and then filter it out with an inductor and a capacitor to get the desired output voltage. This can in theory be 99.9% efficient, but in practice the lower-cost versions are about 80% efficient. This means that you'll only lose 20% in heat, as opposed to the 60% or more heat loss you'll get from a linear regulator giving out 5V from an input of 12V.

Check out that $4 component I linked to, though -- it's a miniature switching regulator in a package that fits in the same footprint as a TO-220 7805, but it generates less heat.
Logged

INDIA
Offline Offline
Sr. Member
****
Karma: 0
Posts: 382
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Quote
With a 7805, you just need an output capacitor. Typically, minimum 10 uF, but more is generally better (up to a limit of a few thousand uF).
With the 7805 I tried caps till 1000uf. But still then it was generating ripples which was causing the analog pins of the AVR to generate noise. Thats the reason I asked how to cancell that amount of ripple with the inductors..

Quote
Check out that $4 component I linked to, though -- it's a miniature switching regulator in a package that fits in the same footprint as a TO-220 7805, but it generates less heat.

Yes..! I have gone through this unit... I it good, but the problem is that it has the maximum current output till 500ma, where as I did a rough calculations and found that I may be drawing about 750ma..


How about using a LM317 or LM338...

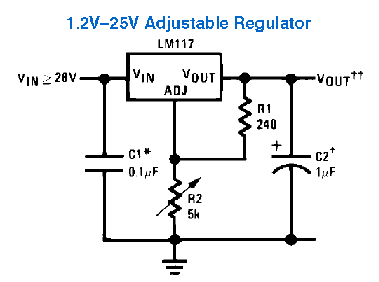

I am only afraid of the R1 here, As soon as it gets disconnected the output voltage gets equal to the input voltage... smiley-sad
This is how one of my Atmega got fried up...smiley-razz



Huh... The power supply is driving me crazy... smiley-sad
More over the circuit will be connected to a motorcycle, So I thing there may me a little noise in the input voltage of the regulator.. smiley-sad


How about this in here..??
http://www.onlinetps.com/shop/index.php?main_page=product_info&cPath=12_50&products_id=103

The data sheet is here..
http://www.datasheetcatalog.org/datasheets/480/61790_DS.pdf
« Last Edit: February 18, 2012, 10:41:37 pm by Joy » Logged

Grand Blanc, MI, USA
Offline Offline
Faraday Member
**
Karma: 95
Posts: 4090
CODE is a mass noun and should not be used in the plural or with an indefinite article.
View Profile
WWW
 Bigger Bigger  Smaller Smaller  Reset Reset

Several things here do not make sense to me:
1. Many, many 7805s get used with ATmega328s without trouble.
2. I'm not clear whether you are actually measuring the alleged ripple, or are making an assumption based on something seen on the analog inputs, please clarify that.
3. The ripple rejection specs for 7805s and LM317s are fairly similar.
4. I don't know why an LM317 configured to output 5V would run significantly hotter than a 7805, all other things being equal.

Have you tried a different 7805? The fact that a 78L05 works makes me wonder if you have a bad part.
Please post your power supply circuit, and describe the source of the input voltage.
How much current does the load pull? If it's just a 328 and a couple LEDs, it can hardly be more than 50mA, yes?
Logged

MCP79411/12 RTC ... "One Million Ohms" ATtiny kit ... available at http://www.tindie.com/stores/JChristensen/

INDIA
Offline Offline
Sr. Member
****
Karma: 0
Posts: 382
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

The powersupply circuit which I am using is preety simple..

I am using a 2200uf capacitor on the input of the 7805 then on it output I am using a 10uf cap..
When I solder the 7805 on the PCB there is problem, but when I am using the same 7805 outside the PCB and supplying only 5v from the 7805 to the circuit with a long wire, then things are just fine...

Quote
If it's just a 328 and a couple LEDs, it can hardly be more than 50mA, yes?

You are correct it just that much of load I have. So you are sure that it will only dray 50ma...??
Logged

Offline Offline
God Member
*****
Karma: 4
Posts: 813
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Quote
I am using a 2200uf capacitor on the input of the 7805 then on it output I am using a 10uf cap..

If you want to filter the signal that comes out of the 7805, you want the big capacitor on the output side.
You can try adding a choke coil (inductor) in series, after the output capacitor. However, if the ripple is in the 60 Hz range, you will need a REALLY BIG CHOKE to reject any significant amount of ripple.

So, the circuit should be something like:

Motorcycle -> 100 uF capacitor -> 7805 -> 100 uF capacitor -> BIG INDUCTOR -> BIG CAPACITOR -> output

Another option is to use a 4.5 volt Zener diode in series with a 2 ohm, 1W resistor, tied in parallel after the output capacitor. This will work as a second regulator, burning off some more voltage to reduce ripple some more.

However, are you SURE it's the power? It may just as well be the sensor you're hooking up to the analog input. Or the analog input itself. Are you buffering it? Does the sensor provide enough current? Is the sensor interference free?
Logged

INDIA
Offline Offline
Sr. Member
****
Karma: 0
Posts: 382
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Quote
However, are you SURE it's the power? It may just as well be the sensor you're hooking up to the analog input. Or the analog input itself. Are you buffering it? Does the sensor provide enough current? Is the sensor interference free?

Yes ..!! I am sure of it because when I am powering my own build atmega board with the 5 volt power supply of an original arduino duemilanove it works fie(no noise on the analog pins), or when I am using a LM315 to power my custom board it again works fine..
It only with the 7805 when there is noise on the analog pins... smiley-sad

Logged

Offline Offline
God Member
*****
Karma: 4
Posts: 813
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

And you're sure the ONLY thing that's different is what the power regulator is? Same power source, same sensor, same engine on, etc?
I'd try another 7805 then. Perhaps there's something wrong with the one you have. Or just use the LM315 switcher and go on with life :-)
Logged
