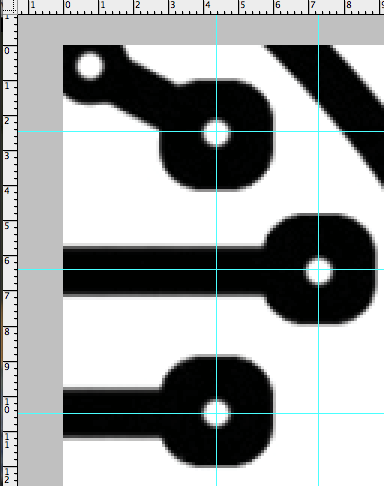

Im Working on covering a scanned image of a pcb to a vector file, but the only component that I can use to scale is a Trimpot.

Right now I'm getting the following measurements

4mm pin spacing, and 3mm deep. (An not knowing the range of trimpot pitches I dont know how right that is)





But due to the nature of this type of scaling up, knowing the published board size is often a few mm different to the actual board size!

So what pitch should I be scaling to?  smiley
Logged

Western New York, USA
Offline Offline
Faraday Member
**
Karma: 40
Posts: 4397
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Quote
4mm pin spacing, and 3mm deep
I have a few of these type pots and the dimension that you specify as 4mm seems to be more like 4.5mm on mine.

Don
Logged

SW Scotland
Offline Offline
Edison Member
*
Karma: 17
Posts: 1404
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Some designs of these miniature open pots also have flat tab connectors rather than round pins.  The circuit board holes for these are actually small slots.

It is my inderstanding that the use of "trimpot" to describe this component is confusing, since I have always understood trimpots to refer to the multi-turn miniature devices that is invariably built as a blue plastic package

jack
Logged

Western New York, USA
Offline Offline
Faraday Member
**
Karma: 40
Posts: 4397
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Quote
Some designs of these miniature open pots also have flat tab connectors rather than round pins
Mine are like that.

Quote
It is my inderstanding that the use of "trimpot" to describe this component is confusing, since I have always understood trimpots to refer to the multi-turn miniature devices that is invariably built as a blue plastic package
The device in question should be called by a generic name such as "trimmer" since the trademarked name "Trimpot" belongs to Bourns.  Bourns has the same problem as the owners of "Jeep", "Kleenex",  "Frigidaire", etc. have.  Sorry - I don't have any UK specific examples.

Don
Logged

0
Offline Offline
Sr. Member
****
Karma: 0
Posts: 269
Fzzt! pop Bang!
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

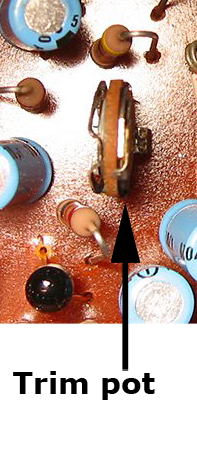

Looking at the photo I would guess that this is a standard vertical trimmer with a pin spacing of 0.2"x 0.1". Take a look around the RS or Farnell website, there are plenty of datasheets available for these items.
Logged

Left Coast, CA (USA)
Offline Offline
Brattain Member
*****
Karma: 361
Posts: 17303
Measurement changes behavior
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

I would simply call it a pot, as a trimmer to me has always implied multi-turn precision adjustable.

Lefty

Logged

SF Bay Area (USA)
Offline Offline
Tesla Member
***
Karma: 137
Posts: 6792
Strongly opinionated, but not official!
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

Quote
a trimmer to me has always implied multi-turn precision adjustable.
I think the "real" difference is in the number of times that you are supposed to change te setting.  A "trimpot" is something that you're supposed to adjust "few" time, and then leave there, while a pot used as a volume control (for example) should be designed to be turned up an down thousands of times.  (somewhere in the datasheets area specs for such things...)
Logged

Left Coast, CA (USA)
Offline Offline
Brattain Member
*****
Karma: 361
Posts: 17303
Measurement changes behavior
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

 Well I was thinking in terms of actually being able to precisely adjust to a specific value. A typical 20 turn pot give one the ability to make critical adjustments, say balance trim control on a instrumentation op-amp that has significant gain. Those single turn 'trimmers' shown in picture are not usable in many cases because of the friction, backlash and limited mechanical travel, while a 20 turn pot gives a 20:1 advantage at least, thus great for 'trimming' applications. The cost difference between the two kinds (single turn Vs muliturn) says much about their intended application.

 As one who worked in field service for years I can sure tell you which kind of pots were suitable for 'trimming' adjustments and which were not.  smiley-wink

Lefty
Logged

0
Offline Offline
Shannon Member
****
Karma: 215
Posts: 12516
Arduino rocks
View Profile
 Bigger Bigger  Smaller Smaller  Reset Reset

trimming is any adjustment to compensate for variation in component values, irrespective of whether it's high-precision 20 turn cermet or a carbon preset.

I'd suggest that this pot is 0.2" by something that might or might not be 0.1"
Logged
