Conflict with PWM on pins 34-35 AND GPIO input

Hello,

I can't read any GPIO pin with this code adapted from
PWM channel output
Thanks for your HELP !

PMC->PMC_PCER1 |= PMC_PCER1_PID36; // Enable PWM (Power On)

PIOC->PIO_PDR |= PIO_PDR_P3 | PIO_PDR_P2; // DUE Pin 34-35 to PWM Peripheral
PIOC->PIO_ABSR |= PIO_ABSR_P3 | PIO_ABSR_P2; // Setting pins to Peripheral B

PWM->PWM_CLK = PWM_CLK_PREA(0) | PWM_CLK_DIVA(84); // Set PWM clock = 1MHz (84MHz/84)
PWM->PWM_CH_NUM[0].PWM_CMR = PWM_CMR_CPRE_CLKA; // Period is left aligned, clock source is CLKA on Channel 0

PWM->PWM_SCM |= PWM_SCM_SYNC0; // Synchronizing of Channels 0
PWM->PWM_SCM |= PWM_SCM_UPDM_MODE1; // Manual Write of duty-cycle automatic trigger of the update

NVIC_SetPriority(PWM_IRQn, 0); // Set the Nested Vector Interrupt Controller (NVIC) priority for the PWM controller to 0 (highest)
NVIC_EnableIRQ(PWM_IRQn); // Connect PWM Controller to Nested Vector Interrupt Controller (NVIC)

PWM->PWM_IER1 = PWM_IER1_CHID0; // Enable interrupt on PWM channel 0 triggered at end of PWM period

PWM->PWM_CH_NUM[0].PWM_CPRD = 208; // Channel 0 Period f = 1MHz/(2*CPRD) --> T=208 micros
PWM->PWM_CH_NUM[0].PWM_CDTY = 0; // Channel 0 duty-cycle at 0%
PWM->PWM_CH_NUM[1].PWM_CDTY = 0; // Channel 1 duty-cycle at 0%

PWM->PWM_ENA = PWM_ENA_CHID0; // Enable synchronous PWM on Channel 0
PWM->PWM_SCUC = PWM_SCUC_UPDULOCK; // Set the update unlock bit to trigger an update at the end of the next PWM period IMPORTANT

adapted from
https://forum.arduino.cc/index.php?
topic=590202.25;wap

What is the waveform you are trying to output ?

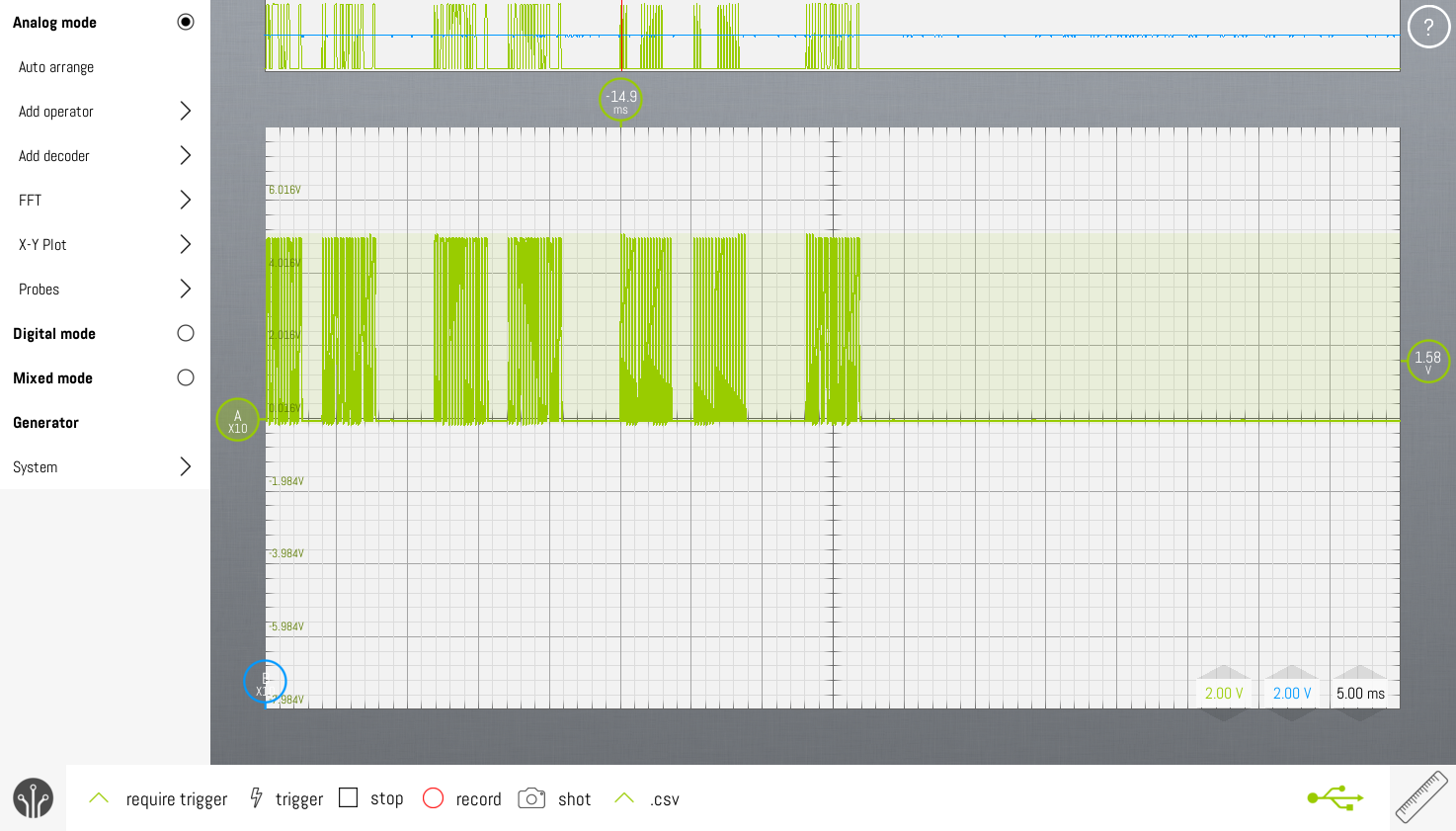

Attached file = pin 34

void PWM_Handler() { // PWM ISR each 208 micros = T

if (PWM->PWM_ISR1 & PWM_ISR1_CHID0) { // update condition

switch (SM_PWM) {
case 0 : PWM->PWM_CH_NUM[0].PWM_CDTYUPD = 0; T_PWM++; if (T_PWM==20) {SM_PWM=1; Bi_PWM=0;} // 4,1 ms between doppel packet : measure with MS2
break;
case 1 : if (Pa[N_PWM][Bi_PWM]) {PWM->PWM_CH_NUM[0].PWM_CDTYUPD = 182;} else {PWM->PWM_CH_NUM[0].PWM_CDTYUPD = 26;} // HIGH / LOW impulse
Bi_PWM++;
if (Bi_PWM==18) { // Packet sended
Do_PWM++; Bi_PWM=0;
if (Do_PWM==1) {SM_PWM=2; T_PWM=0;} // doppel packet
else {SM_PWM=0; T_PWM=0; Do_PWM=0; N_PWM++; if (N_PWM==De_Max-1) {N_PWM=0;}} // cycle Loc
}
break;
case 2 : PWM->PWM_CH_NUM[0].PWM_CDTYUPD = 0; T_PWM++; if (T_PWM==7) {SM_PWM=1; Bi_PWM=0;} // 1,5 ms inside doppel packet from MS2
break; // doppel packet → §3.2 https://www.nxp.com/docs/en/data-sheet/MC145026.pdf
}
PWM->PWM_SCUC = PWM_SCUC_UPDULOCK; // IMPORTANT
}
}

Solution : use GPIO pins at the GOOD time
See attached file

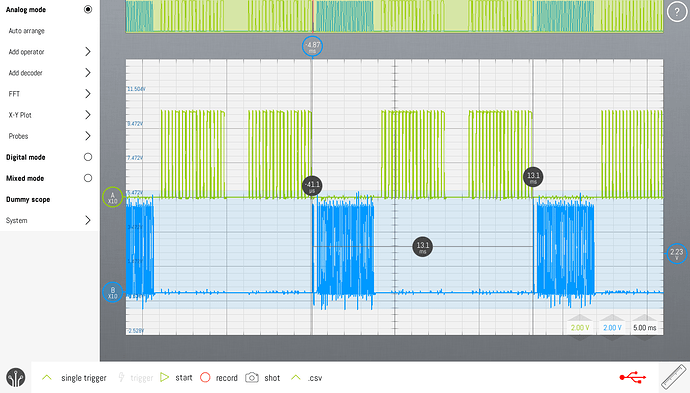

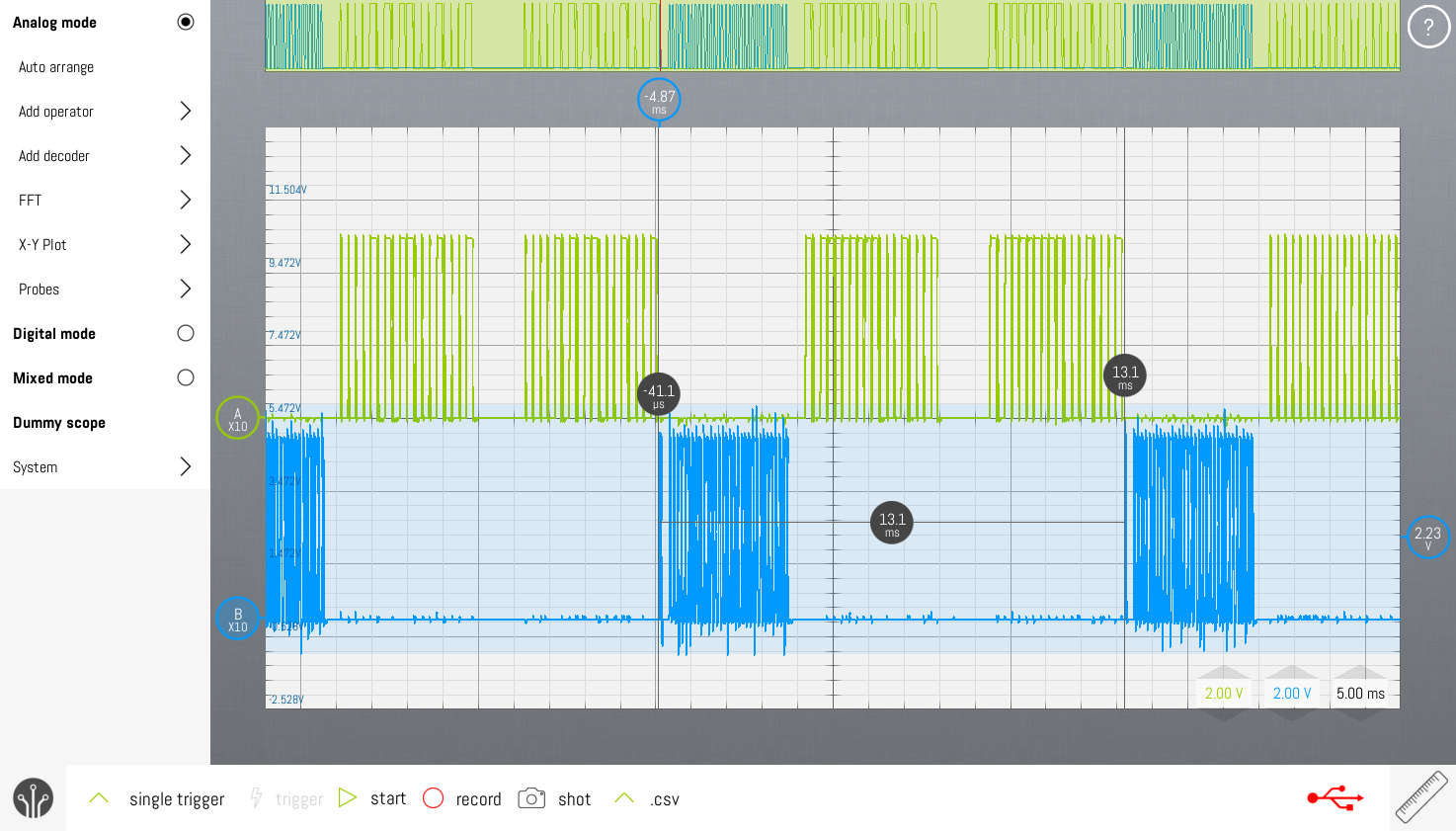

Green = PWM output (to drive my locs Märklin)
Blue = Input/Output (for S88)
