How to connect two wires to the same port

[LarryD]

Share tips you have come across

Watcher: Any tips on easy stripping/crimping / installing of Duponts on multiple wires? These ones are #26 AWG and are quite easy to make. Just make sure you have equal lengths stripped in the pin that has the two wires. [4.jpg] You may have caught this PDF already in post #28. http://forum.arduino.cc/index.php?topic=376971.msg2599211#msg2599211 [1.png] [2017-08-24_9-01-15.jpg] .

Share tips you have come across

Revisiting Making a Y wire Connection A quickie on making a Y cable. Making a Y cable was mentioned earlier in this thread. Lately I needed to make 10 such cables. The images below show how the Spring Vice can be utilized to speed the manufacturing process. [A] [B] [C] [D] [E] [F]

Share tips you have come across

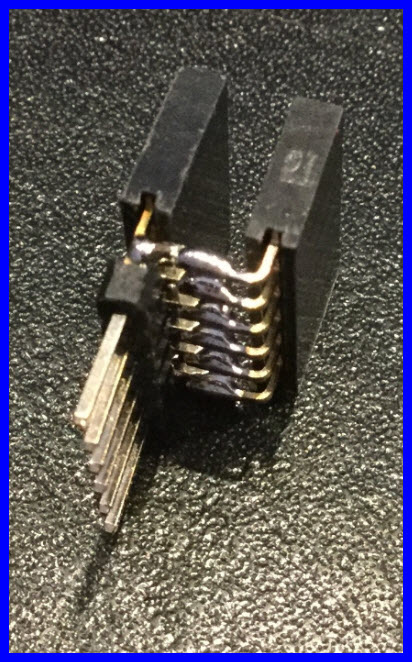

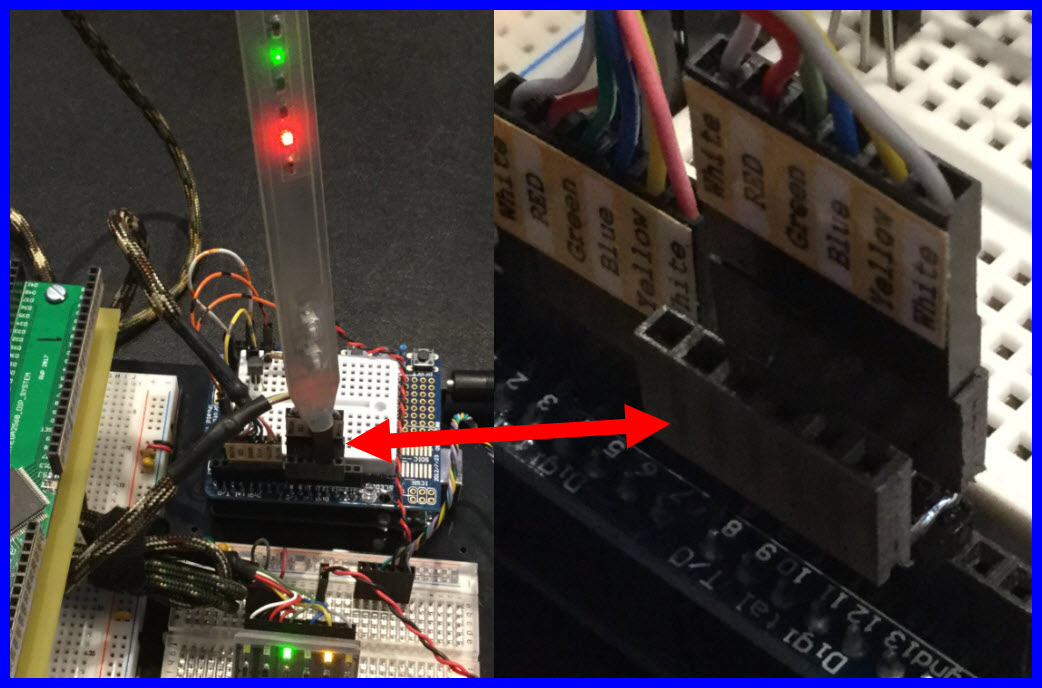

I find there are many times when I need to access an Arduino header pin with several external devices. You can make a simple interface with male and female headers. Cut a 6X1 male header and two 6X1 female headers. Solder them as shown in the images below. If you have a long pin (stackable) female header, you 'don't need the male' header. [2018-02-04_15-44-05.jpg] [2018-02-04_15-44-47.jpg]

Share tips you have come across

Got to get my inventory under control. I did have some stackable female headers. These turned out much better. [2018-02-06_21-33-35.jpg]
