L239d extra pins

Other Hardware General Electronics
1

Screenshot 2024-02-11 at 11.52.19 AM
Screenshot 2024-02-11 at 11.52.19 AM1135×721 192 KB

Screenshot 2024-02-11 at 12.09.06 PM
Screenshot 2024-02-11 at 12.09.06 PM753×503 77.9 KB

i am trying to use 3 ultrasonic sensors for a project with the arduino mega and the l293d but there isnt enough pins. How do i attach the pins on the l293d like in the pictures uploaded

2

Is it 5V and GND pins that you are short of or GPIO pins ?

Your second picture simply seems to show that the extra pins for 5V, GND and A0 to A6 have been soldered to the board so I don't understand your question

3

Hi!

I´m not sure if you´re asking how to ad the male pins to the holes or what is the function of each pin.

If the question is the first, you need to get a male pin bar (180 deg)

Sem título

and solder into the places.

If yor question is the second, here is the answer:


4

Thanks for the reply.

it was the first question. I have been searching for a long time for a video on how to solder the pins onto the l293d but i could not find anything. if possible could you please direct me to a place where i could find help ?

thanks

5

There is nothing special about soldering pins to that board. In fact, soldering pins is one of the easier soldering jobs

Have you got a soldering iron and if so, what type is it, and some flux cored solder ? What experience of soldering electronic components do you have ?

6

i haven't got a soldering iron and i don't have any experience with soldering

7

Then that's about it.
Try to find a board with those on already.
Or find someone, wherever you are, who can do the job for you.

8

@feky I believe that you are in the UK (North London) and I would be happy to solder the pins to the board for you but I live in East Anglia so I am not just down the road

If you can't find anyone to do it for you locally or can't find a board with the pins already soldered in then PM me and we may be able to make some arrangements for you to send the board to me

9

thanks for the offer, i PMed you

10

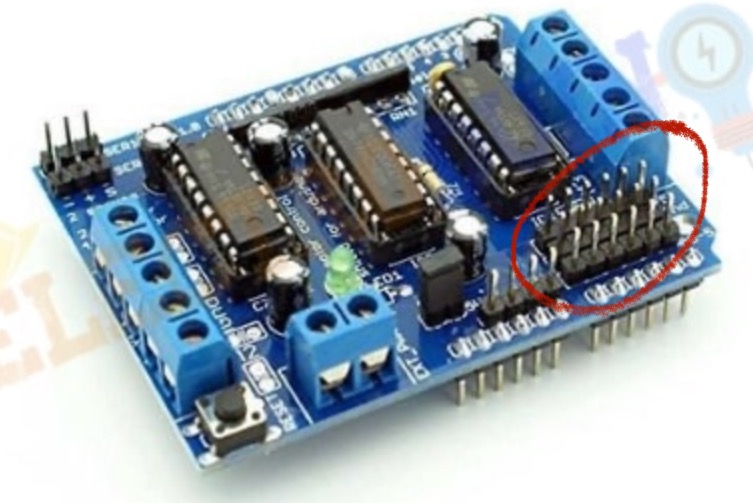

Get a Soldering Iron and some solder and then try to follow the following pictorial instructions (Fig-1) to solder your pins in the indicated open holes of the Motor Driver Board.
Figure-1:

To solder, heat the connection with the tip of the soldering iron for a few seconds, then apply the solder.

  1. Heat the connection, not the solder.
  2. Hold the soldering iron like a pen, near the base of the handle.
  3. Both parts that are being soldered have to be hot to form a good connection.
1 Like
11

Hi, @feky

Is this the same project?

Thanks... :grinning: :+1: :coffee: :australia:

12

very sorry for the late reply, just saw this. yes it is the same project

13

This topic was automatically closed 180 days after the last reply. New replies are no longer allowed.
