Nicla Sense ME battery connection: faulty documentation

Official Hardware Nicla Family Nicla Sense ME
1

I just fried my Nicla Sense ME board due to a faulty documentation of the battery connectors.

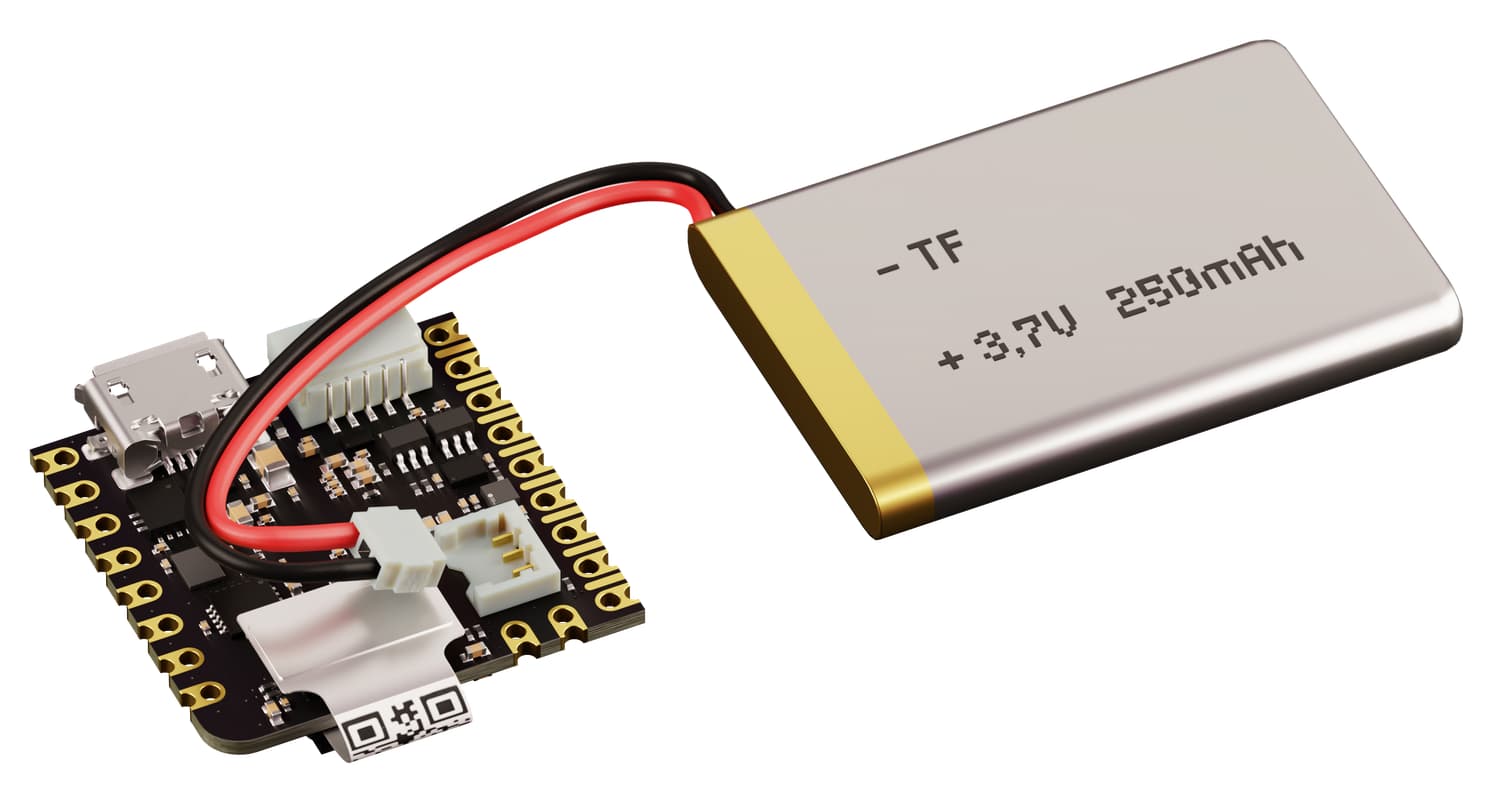

In the datasheet 3v / red is connected to the right pin and GND / black to the left pin. This setup fried my board.

Screenshot 2022-12-08 at 18.34.50
Screenshot 2022-12-08 at 18.34.501496Ă—788 81.9 KB

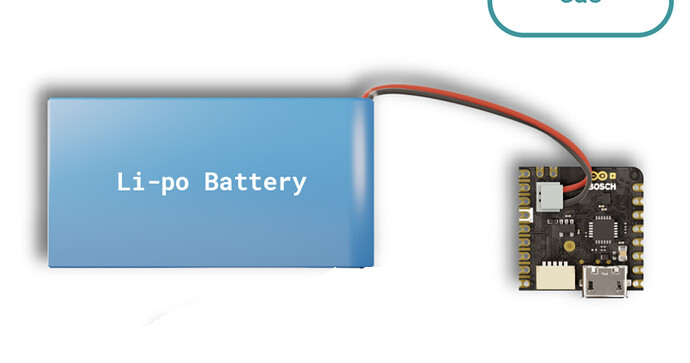

On the support pages the connection image shows the mirrored connection: 3v / red right and GND / black left. This probably works.

Screenshot 2022-12-08 at 18.34.24
Screenshot 2022-12-08 at 18.34.241496Ă—788 57.6 KB

Dear Arduino Team: Please update the documentation.

Here is some sources for the battery connectors and cables. They are not easy to find:

JST ACHR-03V-S Connectors

JST Cables

2

Hi, we are very sorry for the inconvenience and we are working on amend the documentation.
would you mind to open a support ticket here ?
https://www.arduino.cc/en/contact-us/

our support team will take care of your request.
Thanks

1 Like
3

Hi Andrea, i already opened a support ticket and got a reply regarding a replacement board. The main thing is that the documentation will now be corrected so no one else will fry their boards.

4

Hi @emnullfuenf
ok perfect.
yes, the content team is working on to amend ASAP the info.
