Ttp223/74hc165/ws2812

HI EVERYONE ?
I HOPE ALL BE FINE.
I'M PLEASURE BECAUSE THIS IS MY FIRST SUJIT IN THIS FORUM ; AND I HOP FIND WHAT I WANT ,I WAS TRY TO DEVELOP THIS PROGRAMME FROME MANY PROGRAMS FOUND IN YOUTUBE ;
AND AS DON'T KNOW; I'M JUST AN ARDUINO HOBBIES;
IM TEACHER IN ELECTRICITY AND I'M NOT A PROGRAMER
THIS IS MY FIRST STEPS TO PROGRAMMATION;
I THINK IT'S NOT WORKING WILL;

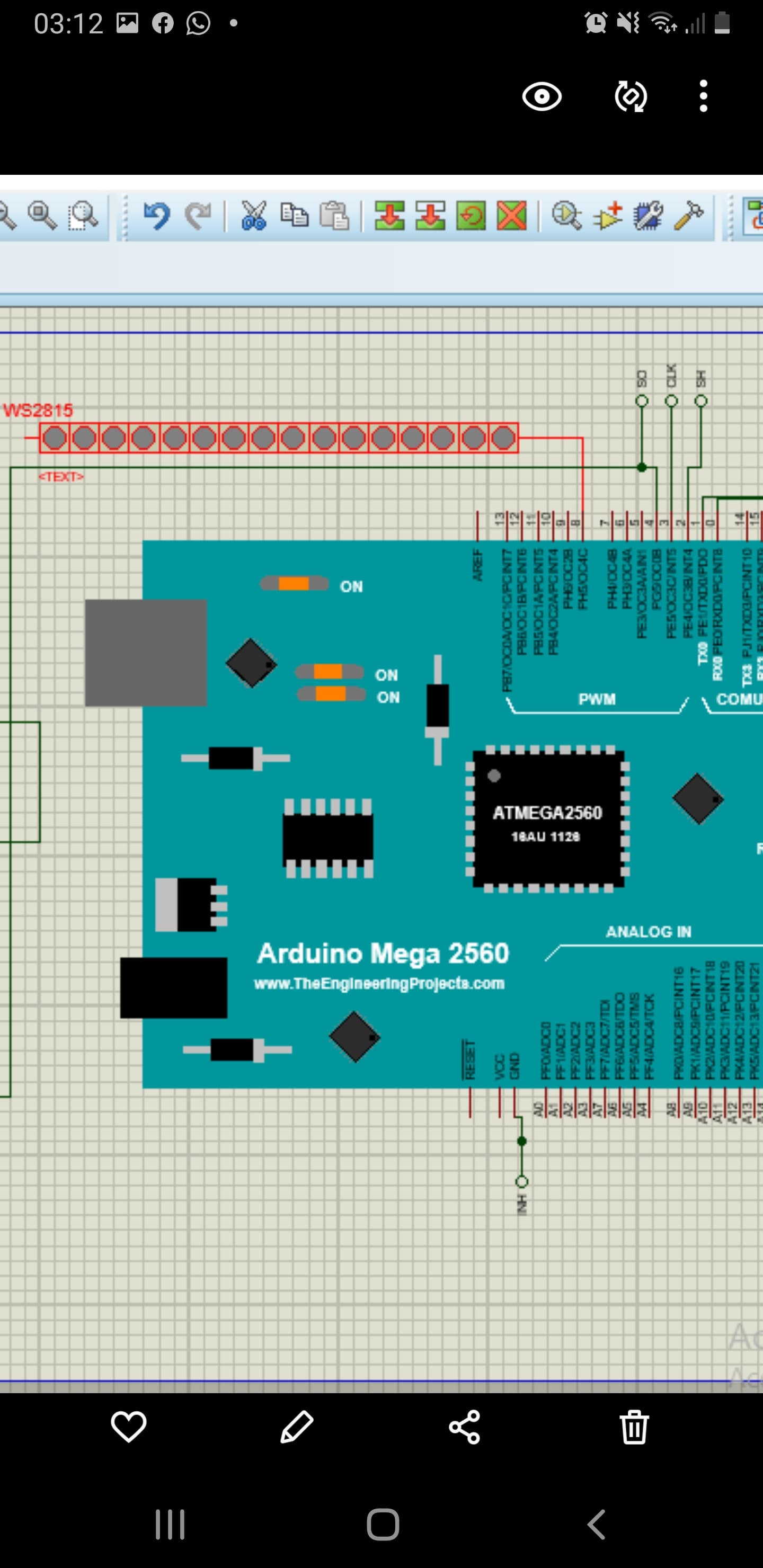

THIS A JUST IMAGE TO APPROXIMATION OF IDEA , BECAUSE I HAVE ALL REAL HARDWARE;
ARDUINO MEGA - 200*(TTP223) - 25*(74HC165) - 3 STREEP LED 144 (WS2815) .
MY PROBLEM IS :
I NEED A FAST RESPONDING TO TOUCH BOTTOM, AND HOW CAN I DO :
1 - DO A SHADOW PIXEL ANIMATIONS .
2 - CHANGE PIXEL COLORS.
3 - AND ACTIVATE TOGGLE FUNCTION FROM PROGRAMING ( NOT THE TTP223 TOGGLE)
IF A SWITCH HIGH OR LOW ,

#include "FastLED.h"

#define NUM_LEDS 8
#define PIN_LED 8
#define LED_COLOR CRGB::DarkOrchid
CRGB rgb_led[NUM_LEDS];

int ioSelect = 2;     // SH/LD  1.
int clockPulse = 3;   // CLK    2.
int dataOut = 4;      // QOUT   9.
int num_leds_switchedon=0;
byte switchVar = 0;

int j;               //used in a for loop to declare which bit is set to 1
int value;           //stores the digital read value of the data pin
//(0 if no button is pressed, 1 if a button is pressed)

void setup() {

  pinMode(ioSelect, OUTPUT);
  pinMode(clockPulse, OUTPUT);
  pinMode(dataOut, INPUT);

  Serial.begin(9600);  //setting baud rate

  FastLED.addLeds<WS2812B, PIN_LED>(rgb_led, NUM_LEDS);
  FastLED.setBrightness(255);
  rgb_led[NUM_LEDS] = CRGB::Black;
  FastLED.show();
}
int8_t gHue = 0;
void loop() {

  byte  dataIn = 0;
  //  uint16_t  dataIn = 0;       //Swap out byte for uint16_t or uint32_t
  digitalWrite(ioSelect, 0);    // enables parallel inputs
  digitalWrite(clockPulse, 0);  // start clock pin low
  digitalWrite(clockPulse, 1);  // set clock pin high, data loaded into SR
  digitalWrite(ioSelect, 1);    // disable parallel inputs and enable serial output
  //////////////////////////////////
  for (j = 0; j < 8; j++) {        //sets integer to values 0 through 7 for all 8 bits
    value = digitalRead(dataOut); //reads data from SR serial data out pin
    if (value) {
      int a = (1 << j);       // shifts bit to its proper place in sequence.
                              /*for more information see Arduino "BitShift" */
      dataIn = dataIn | a;    //combines data from shifted bits to form a single 8-bit number
                              /*for more information see Arduino "Bitwise operators" */

      num_leds_switchedon = map(j, 0, 8, 0, NUM_LEDS);


     rgb_led[num_leds_switchedon] =CRGB::DarkOrchid ;
        // rgb_led[num_leds_switchedon] += CHSV(random8(64), 20, 255); NOT WORKING
      FastLED.show();
        // leds[pos] += CHSV( gHue, 255, 192); NOOOOO

    }
    rgb_led[num_leds_switchedon] = CRGB::Black;
  FastLED.show();

    digitalWrite(clockPulse, LOW);  //after each bit is logged,
    digitalWrite(clockPulse, HIGH); //pulses clock to get next bit

  }

  }

THIS IS THE FIRST CODE BUT THE RESULT IN DECIMAL NOT BINARY

#include "FastLED.h"

#define NUM_LEDS 255
#define PIN_LED 8
#define LED_COLOR CRGB::DarkOrchid
CRGB rgb_led[NUM_LEDS];

int ioSelect = 2;     // SR Pin 15.
int clockPulse = 3;   //SR Pin 7.
int dataOut = 4;      //SR Pin 13.


int j;               //used in a for loop to declare which bit is set to 1
int value;           //stores the digital read value of the data pin
                    //(0 if no button is pressed, 1 if a button is pressed)

byte switchVar = 0;  //stores a byte array to show which button was pressed


void setup() {
  pinMode(ioSelect, OUTPUT);
  pinMode(clockPulse, OUTPUT);
  pinMode(dataOut, INPUT);

  Serial.begin(9600);  //setting baud rate

  FastLED.addLeds<WS2812B, PIN_LED>(rgb_led, NUM_LEDS);
  FastLED.setBrightness(100);
}

void loop() {
  byte  dataIn = 0;
  //  uint16_t  dataIn = 0;       //Swap out byte for uint16_t or uint32_t
  digitalWrite(ioSelect, 0);    // enables parallel inputs
  digitalWrite(clockPulse, 0);  // start clock pin low
  digitalWrite(clockPulse, 1);  // set clock pin high, data loaded into SR
  digitalWrite(ioSelect, 1);    // disable parallel inputs and enable serial output


 for(j = 0; j < 8; j++) {         //sets integer to values 0 through 7 for all 8 bits
    value = digitalRead(dataOut); //reads data from SR serial data out pin
    Serial.print("Button Position: "); // checks bit position 0-7
    Serial.println(j);
    Serial.print("Button Value:        ");  //checks whether button was pressed (high vs low)
    Serial.println(value);

        }





    int num_leds_switchedon = map(value,0, 255, 0,NUM_LEDS);


   for (int i = 0; i < num_leds_switchedon; ++i) {
    rgb_led[i] = LED_COLOR;

  }
    for (int i = num_leds_switchedon; i < NUM_LEDS; ++i) {
    rgb_led[i] = CRGB::Black;

  }

  FastLED.show();
}

THANK YOU FRIENDS :grinning:

You appear to have a problem with your Caps Lock - it would be nice to re-type your post to make it more readable but at least please fix it before you post again. :worried:

I am somewhat puzzled as to why you are using a Mega 2560 and shift registers to read your touch switches. I believe 255 LEDs can be handled by a Nano so a Nano and shift registers would make sense but if you must use a Mega, why not just connect the touch buttons to all the available I/O?

Hi .
its just image to explain my work .
My projit like : MiDi controlled strepLed. but with TTP223 touch sensors. :grin:
my programe its working .but the LEDs are not stable. I do not know how to put effects such as delay and gradation and change the style of colors. And toggel mode

Like thats


if you read the code .
its explaine all connections.
this is the shift regesters connectors
Thank you

thank you Mr Karma for your help
but your programme isn't work definitely

This topic was automatically closed 180 days after the last reply. New replies are no longer allowed.
