Can you please post a copy of your circuit, in CAD or a picture of a hand drawn circuit in jpg, png so we can see how you have the 595 connected together and the UNO?
The most compact form that they could be sent as is 1 bit per LED so you will need to send 300/8 bytes, ie 37 bytes and you would need 37 cascaded shift registers. Are you sure that you have thought this through ?
Do you have to use shift registers or could you use a simple strip of WS2812 LEDs ?
UKHeliBob:
The most compact form that they could be sent as is 1 bit per LED so you will need to send 300/8 bytes, ie 37 bytes and you would need 37 cascaded shift registers. Are you sure that you have thought this through ?
Do you have to use shift registers or could you use a simple strip of WS2812 LEDs ?
We Can,
But, Right Now I'm Experimenting With Shift Registers,
And Please Suggest Any WS2812 IC Arrays (Not LED Strips) If Any . .
You could receive the serial data and store it in an array.
Send it in a couple different ways: 40 bytes all in one shot, update the whole array; send a byte # to update and its data; a variation of that, send in a start address to begin storing data, the number of bytes, and the data.
One the data is updated, send it to the shift register chain:
digitalWrite (ssPin, LOW);
for (x=0, x:40; x=x+1){
SPI.transfer(dataArray[x]);
}
digitalWrite (ssPin, HIGH); // all outputs update on this rising edge
I made up a box with 45 shift registers like this, and coded it to update at a 20 KHz rate by unwrapping the for:loop, using port manipulation, writing to the SPI register directly and adding NOPs to wait out the transfer; and turning off interrupts during the data transfer.
The data came from a preloaded 45 byte x hundreds of rows long array in the 16K SRAM of a '1284P.
CrossRoads:
You could receive the serial data and store it in an array.
Send it in a couple different ways: 40 bytes all in one shot, update the whole array; send a byte # to update and its data; a variation of that, send in a start address to begin storing data, the number of bytes, and the data.
One the data is updated, send it to the shift register chain:
digitalWrite (ssPin, LOW);
for (x=0, x:40; x=x+1){
SPI.transfer(dataArray[x]);
}
digitalWrite (ssPin, HIGH); // all outputs update on this rising edge
I made up a box with 45 shift registers like this, and coded it to update at a 20 KHz rate by unwrapping the for:loop, using port manipulation, writing to the SPI register directly and adding NOPs to wait out the transfer; and turning off interrupts during the data transfer.
The data came from a preloaded 45 byte x hundreds of rows long array in the 16K SRAM of a '1284P.
I did share the SPI code to send the data to the shift registers. The code to receive serial data and put it into an array is not written, I was loading the array by updating the sketch and re-downloading into the 1284P.
CrossRoads:
"Sir, Could You Please Share The Code,"
I did share the SPI code to send the data to the shift registers. The code to receive serial data and put it into an array is not written, I was loading the array by updating the sketch and re-downloading into the 1284P.
I'd Tried Several Options Get Serial input And Sending Data To Shift Registers ,
But I'm Continuously Failing to Put That Serial Input in ShiftOut,
Because of Strings Usage, ASCII Conversions etc . . .

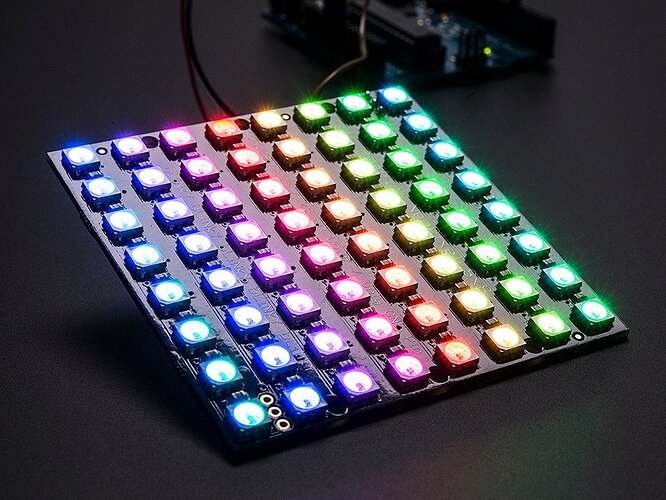

WS2812B means learning how to use one of the libraries that makes up the timing needed, Neopixel library from Adafruit, or the FastLed.h library.
With 'dumb' RGB LEDs (no controller built in) or single color LEDs, than you can use shift registers, TPIC6C595 works better than 74HC595 as you have more current to drive the LEDs without overstressing the HC595, and both work the same way - shift in a 1, the output turns in. With TPIC6C595, On means the output goes low, so the LEDs are wired in series like this:
5V anode, cathode to resistor, resistor to output pin.
Then shift in whatever pattern you want.
Say you had 40 LEDs on 5 shift registers, and it was always 5 that came in:
while (Serial.available() <5){
// hang out and wait
}
// 5 bytes came in, proceed
for (x=0; x<5; x=x+1){
dataArray[x] = Serial.read();
}
// and send it to the shift register as above
If you wanted to have it come in from the serial monitor in the IDE, would you sit there and type 40 0s and 1s?
Then the 0s and 1s come in as ASCII,
0 = 0x30, or 48 decimal
1 = 0x31, or 49 decimal
Do the same serial receiving trick, but convert the data from ASCII to binary and also convert bits into bytes
while (Serial.available() <40){
// hang out and wait
}
// 40 bytes came in, proceed
for (x=0; x<40; x=x+1){
dataArrayBits[x] = Serial.read() - 0x30; // convert from 0x30, 0x31 to 0, 1
}
// convert to 5 bytes, assumes the highest bits (39,38, etc.) go into bits 7:0 of the highest byte
byte4 = (dataArrayBits[39] <<7) + (dataArrayBits[38] <<6) + (dataArrayBits[37] <<5) + (dataArrayBits[36] <<4) + (dataArrayBits[35] <<3) + (dataArrayBits[34] <<3) + (dataArrayBits[33] <<1) + (dataArrayBits[32];
byte4 = (dataArrayBits[31] <<7) + (dataArrayBits[30] <<6) + (dataArrayBits[29] <<5) + (dataArrayBits[28] <<4) + (dataArrayBits[27] <<3) + (dataArrayBits[26] <<3) + (dataArrayBits[25] <<1) + (dataArrayBits[24];
byte4 = (dataArrayBits[23] <<7) + (dataArrayBits[22] <<6) + (dataArrayBits[21] <<5) + (dataArrayBits[20] <<4) + (dataArrayBits[19] <<3) + (dataArrayBits[18] <<3) + (dataArrayBits[17] <<1) + (dataArrayBits[16];
byte4 = (dataArrayBits[15] <<7) + (dataArrayBits[14] <<6) + (dataArrayBits[13] <<5) + (dataArrayBits[12] <<4) + (dataArrayBits[11] <<3) + (dataArrayBits[10] <<3) + (dataArrayBits[9] <<1) + (dataArrayBits[9];
byte4 = (dataArrayBits[7] <<7) + (dataArrayBits[6] <<6) + (dataArrayBits[6] <<5) + (dataArrayBits[4] <<4) + (dataArrayBits[3] <<3) + (dataArrayBits[2] <<3) + (dataArrayBits[1] <<1) + (dataArrayBits[0];
// and send it to the shift register as above
Then after you tired of typing in 001101011101010010101 ...everytime, you might decide to enter data in hex format, so instead of typing 40 0s and 1s you could just enter 5 pairs of characters 0,1,2,3,4,5,6,7,8,9,a,b,c,d,e,f, and put those into array directly. 00000000 becomes 00. 01010101 becomes 55. 10101010 becomes aa. etc. The conversion is a little more than Serial.read() - 0x30, that works for 0 to 9, but a to f need Serial.read() - 0x51, so that 61 becomes 0x0a, 62 becomes 0x0b, etc up to 66 becoming 0x0f, and then you shift 4 bits over instead of 8 to make the bytes.
It's a Python script that controls LEDs connected to an Arduino, driven by shift registers. You don't have to use Python, you just need to send the binary data over the serial port using the SLIP protocol, so you can use any language that can open serial ports.
