Time? Yet Another Word Clock

[xfpd]

A request was made for a word clock, which I knew nothing about, so I poked around and thought some... Showcasing a 12-hour, colloquial, grammatically accurate, RTC and FastLED driven, Word Clock... with test functions and an internal sketch to set up your own word-clock-words. I transposed a couple letters to keep word-searchers happy.

And, it fits on a Nano/Uno...

Sketch uses 8744 bytes (28%) of program storage space. Maximum is 30720 bytes.
Global variables use 1300 bytes (63%) of dynamic memory, leaving 748 bytes for local variables. Maximum is 2048 bytes.

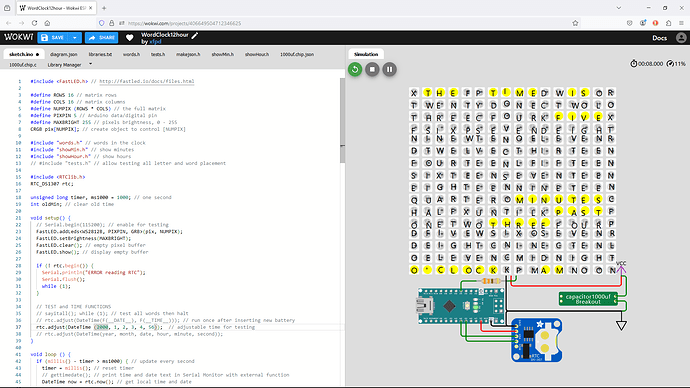

WordClock12hour - Wokwi ESP32, STM32, Arduino Simulator

sketch.ino

#include <FastLED.h> // http://fastled.io/docs/files.html
// https://forum.arduino.cc/t/time-yet-another-word-clock/1293884

#define ROWS 16 // matrix rows
#define COLS 16 // matrix columns
#define NUMPIX (ROWS * COLS) // the full matrix
#define PIXPIN 5 // Arduino data/digital pin
#define MAXBRIGHT 255 // pixels brightness, 0 - 255
CRGB pix[NUMPIX]; // create object to control [NUMPIX]

#include "words.h" // words in the clock
#include "showMin.h" // show minutes
#include "showHour.h" // show hours
// #include "tests.h" // allow testing all letter and word placement

#include <RTClib.h>
RTC_DS1307 rtc;

unsigned long timer, ms1000 = 1000; // one second
int oldMin; // clear old time

void setup() {
  // Serial.begin(115200); // enable for testing
  FastLED.addLeds<WS2812B, PIXPIN, GRB>(pix, NUMPIX);
  FastLED.setBrightness(MAXBRIGHT);
  FastLED.clear(); // empty pixel buffer
  FastLED.show(); // display empty buffer

  if (! rtc.begin()) {
    Serial.println("ERROR reading RTC");
    Serial.flush();
    while (1);
  }

  // TEST and TIME FUNCTIONS
  // sayitall(); while (1); // test all words then halt
  // rtc.adjust(DateTime(F(__DATE__), F(__TIME__))); // run once after inserting new battery
  // rtc.adjust(DateTime (2000, 1, 2, 3, 4, 56));  // adjustable time for testing
  // rtc.adjust(DateTime(year, month, date, hour, minute, second));
}

void loop () {
  if (millis() - timer > ms1000) { // update every second
    timer = millis(); // reset timer
    // gettimedate(); // print time and date text in Serial Monitor with external function
    DateTime now = rtc.now(); // get local time and date

    // UPDATE ONLY AT TOP OF MINUTE
    if (now.minute() != oldMin) { // check for minute change
      oldMin = now.minute(); // store new minute
      FastLED.clear(); // clear previous clock reading
    }

    the(); tim(); is(); // these words will always be on

    // CALCULATE MINUTES, UNTIL, PAST
    if (now.minute() > 0) { // only show "minutes" after "zero"

      if (now.minute() >= 20 && now.minute() < 30) { // 21 through 29 becomes "twenty" (min) "past"
        twnty();
        showMin(now.minute() - 20); // subtract 20 from 21..29 = minutes
      }

      if (now.minute() == 30) { // exactly 30
        hlf(); pst(); // "half" "past"
      }

      if (now.minute() > 30 && now.minute() <= 40) { // 31 through 39 becomes "twenty" (min) "until"
        twnty();
        showMin(40 - now.minute()); // subtract 31..39 from 60 = minutes
      }

      if (now.minute() != 15 && now.minute() != 45 && now.minute() != 30) {
        if (now.minute() == 1 || now.minute() == 59)
          minx(); // minute. - singular
        else
          mins(); // minutes - plural
      }
      if (now.minute() < 30) pst(); // before half
      if (now.minute() > 30) { // after half
        if (now.minute() == 45) // quarter (hour)
          til(); // shortened 'til
        else
          utl(); // until
      }
      if ((now.minute() != 15) && (now.minute() != 45)) { // exclude "quarter" hours
        if (now.minute() > 40) showMin(60 - now.minute()); // minutes 41 to 59 "until"
        if (now.minute() < 20) showMin(now.minute()); // minutes 1 to 19 "past"
      } else if ((now.minute() == 15) || (now.minute()) == 45)
        qrtr(); // 15 "quarter"
    }

    // MAKE 12-HOUR CLOCK - replace two checks on now.hour() == 11 and now.hour() == 23
    // int tHour = (now.hour() < 13) ? now.hour() : now.hour() - 12;

    // PAST (the hour) and UNTIL (the hour)
    if (now.minute() > 30)
      showHour(now.hour() + 1); // add an hour if "until the hour"
    else
      showHour(now.hour());

    // MIDNIGHT (0 or 24) and NOON (12)
    if (now.hour() == 0 && !(now.minute() > 30))
      showHour(0); // "midnight"
    else if (now.hour() == 12 && !(now.minute() > 30))
      showHour(12); // "noon"

    // O'CLOCK not after NOON and MIDNIGHT
    if (!((now.minute() > 30 && (now.hour() == 11 || now.hour() == 23) || // 31 TO 59
           (now.minute() < 30 && (now.hour() == 12 || now.hour() == 0))))) { // 1 TO 29
      ocl(); // o'clock
    }

    // AM or PM (ANTE MERIDIAM / POST MERIDIAM) following O'CLOCK
    if (now.hour() > 12 && !(now.minute() > 30 && now.hour() == 23)) // no PM at NOON
      pm();
    else if (now.hour() < 12 && !(now.minute() > 30 && now.hour() == 11)) {
      am();
    }
  }
}

makejson.h

//*****************************************************
//  This utility creates json text attributes for 16x16
//  word clock grid simulation. Standalone or function
//*****************************************************

/*
  char words[16][16] = {
   1234567890123456
  ".the..time..is..", //   0  1
  "TWENTY.ONE.TWO..", //  16  2
  "THREE.FOUR.FIVE.", //  32  3
  ".SIX.SEVEN.EIGHT", //  48  4
  "NINE.TEN.ELEVEN.", //  64  5
  ".TWELVE.THIRTEEN", //  80  6
  "FOURTEEN.FIFTEEN", //  96  7
  "SIXTEENSEVENTEEN", // 112  8
  "EIGHTEENNINETEEN", // 128  9
  ".quater.minutes.", // 144 10
  "half.until.past.", // 160 11
  "ONETWOTHREEFOUR.", // 176 12
  ".FIVE.SIX.SEVEN.", // 192 13
  ".EIGHT.NINE.TEN.", // 208 14
  ".ELEVEN.midnight", // 224 15
  "o'clock.pmAMnoon"  // 240 16
  };

  void setup() {
  Serial.begin(115200);
   for (int k = 0; k < 16; k++) {
     for (int j = 0 ; j < 4; j++) {
       Serial.print("\"attrs\": { \"text\": \"");
       for (int i = 0; i < 4; i++) {
         Serial.print(words[i + j * 4][k]);
         if (i < 3)
           Serial.print("\\n");
       }
       Serial.print("\" }");
       Serial.println();
     }
     Serial.println();
   }
  }

  void loop() {}
*/
