Hello everyone.

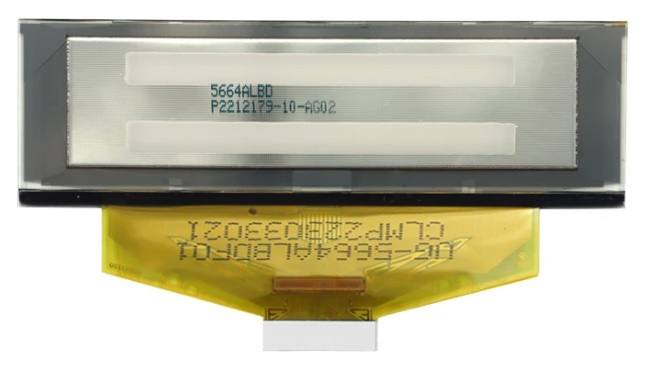

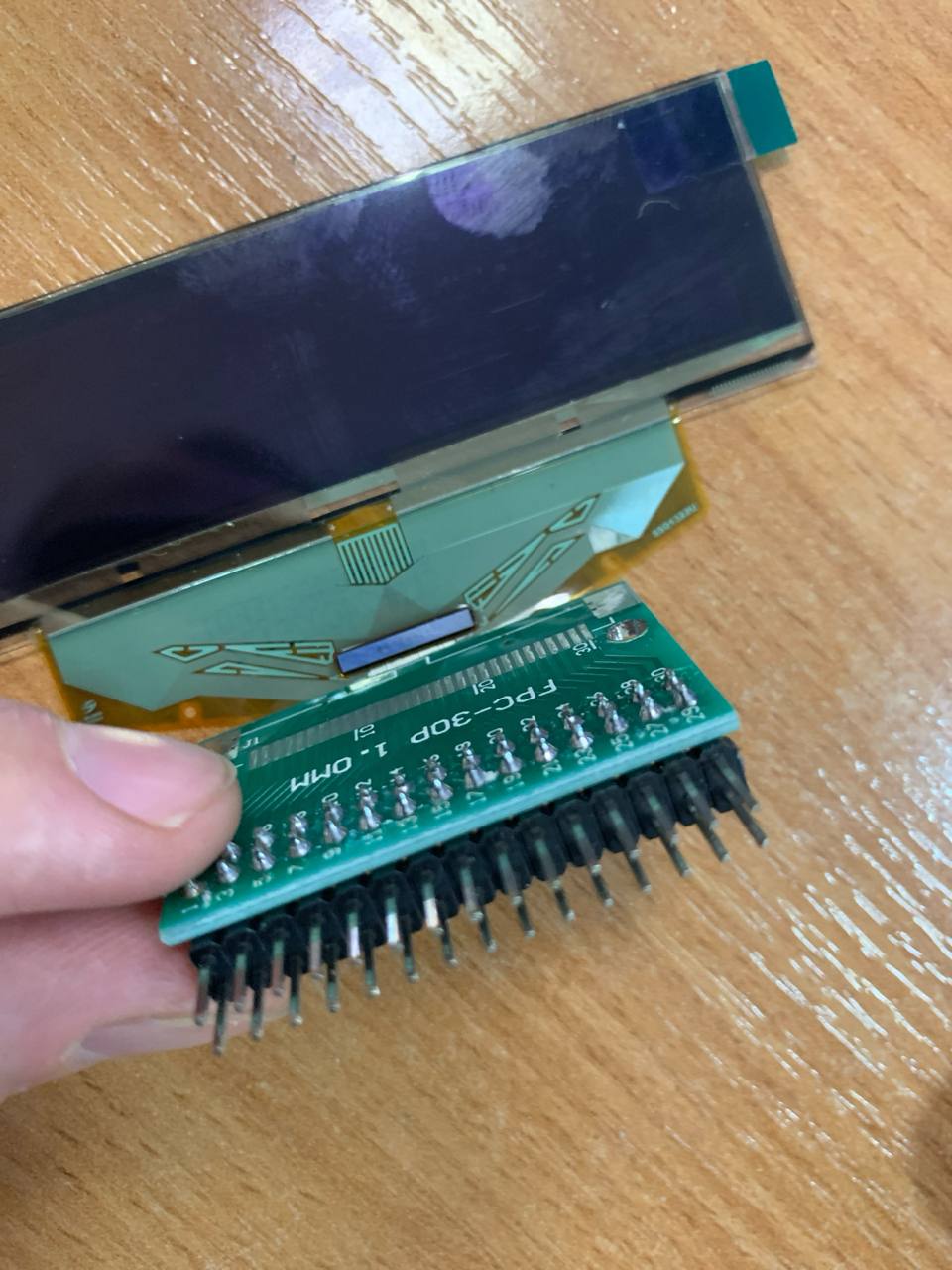

I got a 25664 display with an adapter board.
How to connect it to Arduino? I googled, but Google gives the connection of such displays, mounted on a board with a harness. The harness diagram itself is also not found.
How to connect it to Arduino? I googled, but Google gives the connection of such displays, mounted on a board with a harness. The harness diagram itself is also not found.
Hi, my name is mikey, I have been working with Arduino for the past few years! if you could please tell me what Arduino board you are trying to connect to (UNO, Giga, Nano, etc), that would be very helpful and I can help from there!
Hi, Mikey!

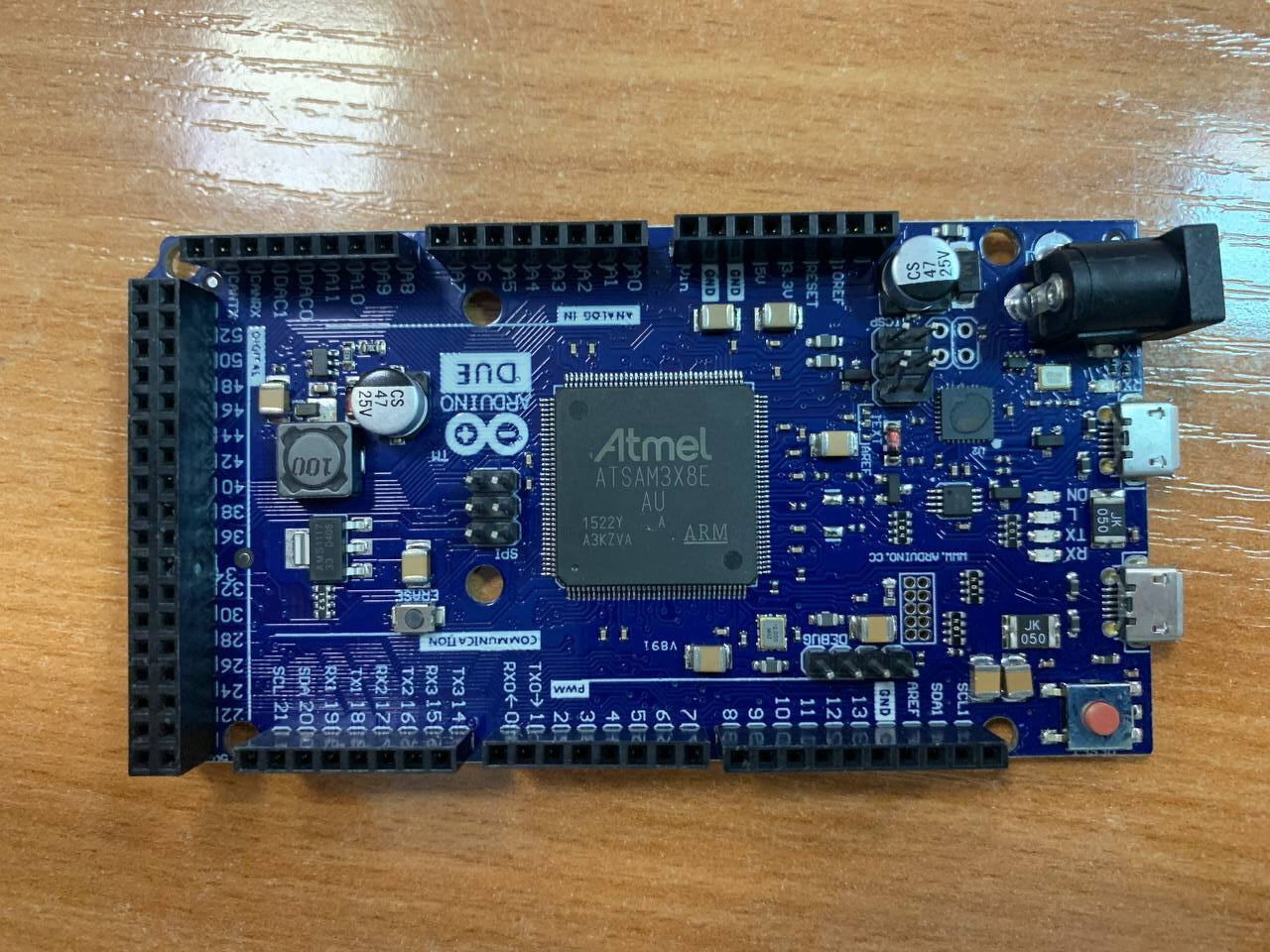

My board is Arduino Due
Regards,
Stan
ah! looks like you are using the Due! that is pretty similar to the Arduino giga! I am looking close at the image and I am seeing some number on the board. although I do not know what they mean. could you look a little closer at it and see if there is some sort of serial number or code on it? if so, I can assist you from there, if not, no worries! I can find another way to help you

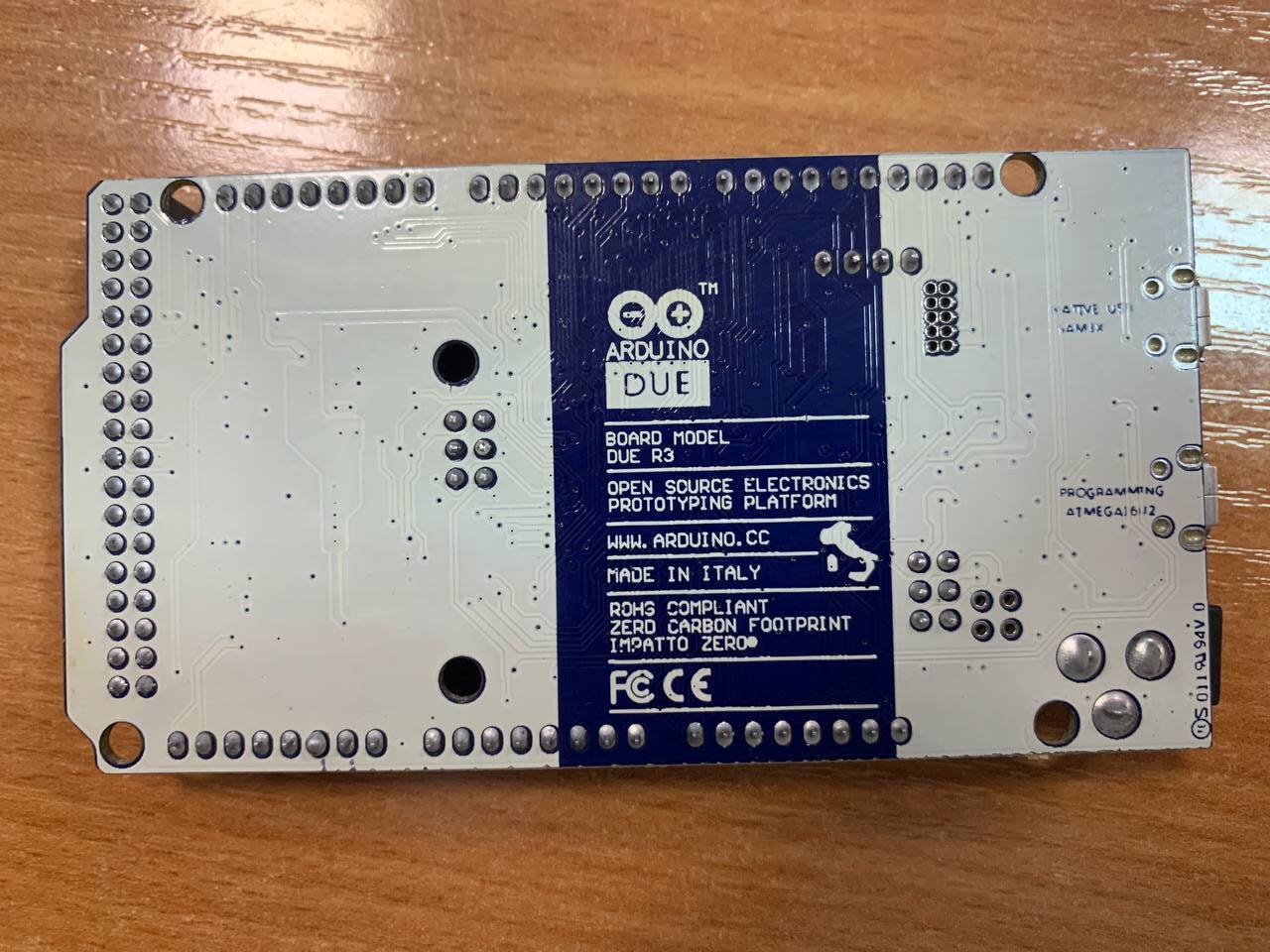

could you show me the underside of the display?

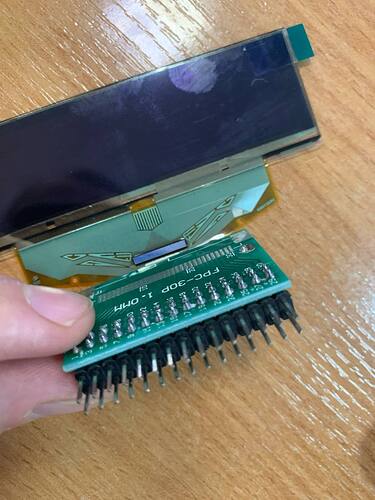

okay! sorry for the late reply. I have been doing some research! can you show me behind the display screen itself?
ah great! do you by chance know how to read a wiring diagram?
Read circuit? Yes, i know.
Regards,
Stan
okay! I'm going to send a pdf that might help! if you could take a look at is that would be great. if you are still having difficulties feel free to continue reaching out.
NHD-4.3-480272FT-CSXV-CTP.pdf (773.7 KB)
Thank you, but your file contains a diagram for a TFT-display on a different chip (my OLED on SSD1322 chip).
my apologies! can you tell me where you got the adapter? and or the display?
I do
Aliexpress
okay! I got it! do you see the numbers on the adapter? you need to line those up with the numbers on the thick end of the Due! then you can move on to coding! if this doesn't work! I would be glad to provide more assistance!
