I was wondering if someone could give me a fully functional schematic (Or a link to an EasyEDA project) of an Arduino Uno but with the CH340G or the CH340C (Better if it's the CH340C). If possible, it should have good protections, like the original Arduino Uno. Thanks in advance.
I think they are available on the Arduino.cc site under hardware.
It's here:
https://content.arduino.cc/assets/UNO-TH_Rev3e_sch.pdf
But official Arduino Unos do not use a CH340.
What does that mean?

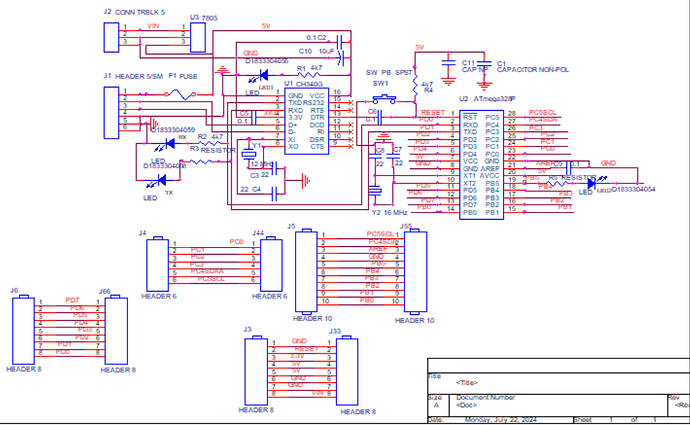

Maybe Arduino Uno R3 schematic CH340 ?
It seems that despite the "share-alike" clause of the original Arduino license, there are very few schematics of the derivatives from China (which is most of the ones with ch340s.)
I wouldn't expect them to be "all the same" either.
Um. I think Sparkfun has a 340-based uno-like board...
1 Like
