Bigtreetech s42c

[rotten002]

Hello, I posted a similar question two weeks ago, but this time I plan to use a BIGTREETECH S42C Board without the adapter since I've heard it should work too. I want to use it directly on a arduino uno if possible. Here is the Manual for the board:"https://github.com/bigtreetech/BIGTREETECH-Stepper-Motor-Driver/blob/master/BIGTREETECH%20S42C%20V1.0/BIGTREETECH%20S42C%20user%20manual.pdf".

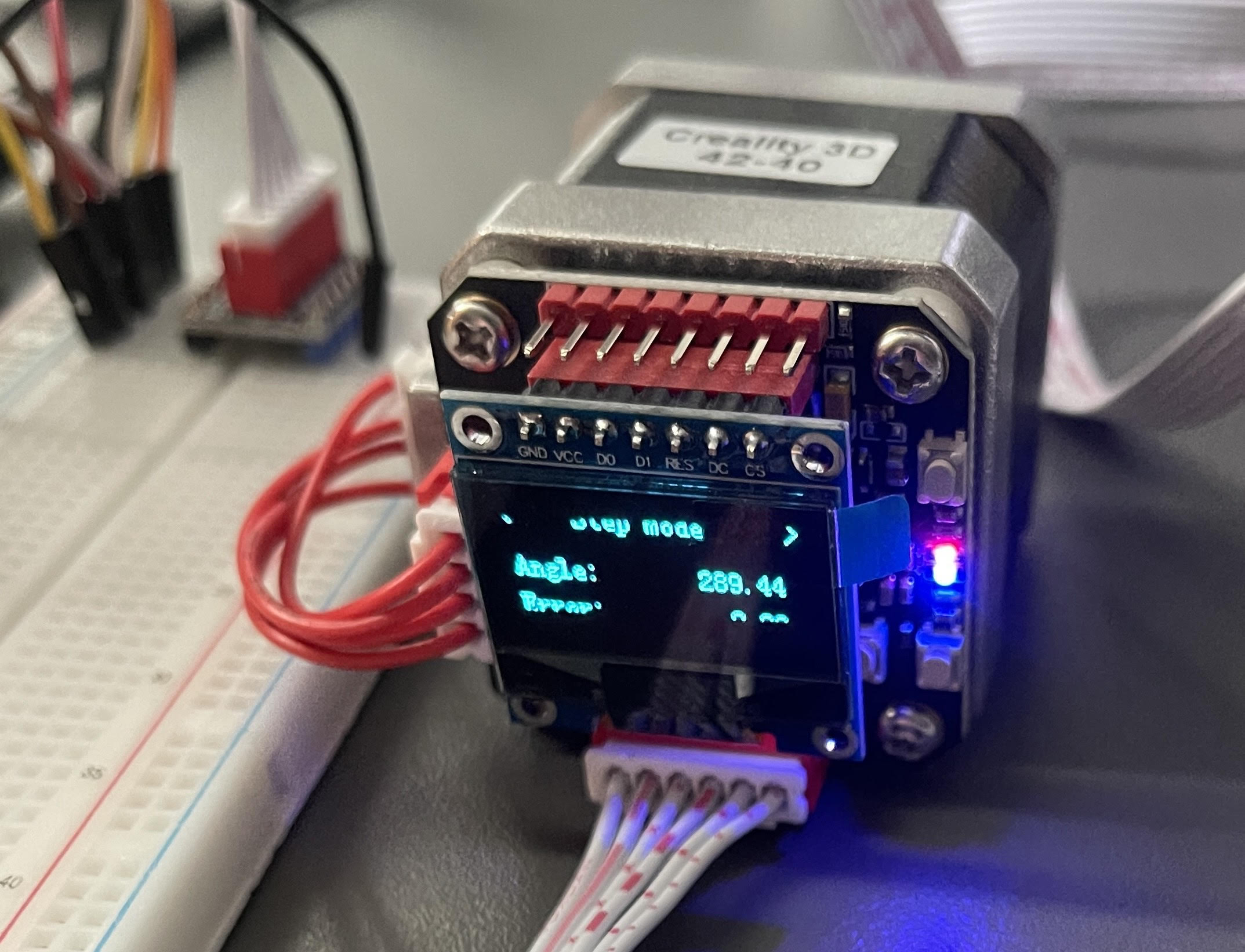

I have worked with other Steppers and Drivers and everything worked but here I am a bit confused how to wire it. The display turns on and it knows the motors position but thats it.
I have connected VM and GND to a 12V power supply, Dir to pin 5 to the arduino but thats how far I get. Where is the step and how do I enable the motor? How do I wire that board to the arduino? From what i understood in the datasheet it is Enabled if low.

[awneil]

@rotten002

I posted a similar question two weeks ago

Link, please?

[rotten002]

Thats not important anymore since I want to use it differently. Just don't want people to be confused that I post the same/ similar question again

[xfpd]

Contact this user... (does NOT indicate "solution")

UART Communication to and from closed loop stepper

I have a BigTreeTech closed loop stepper (S42C v1.0) and it apparently allows UART communication to read and write settings. I have two questions based on the following information from the "manual": [image] and [image] The first question is - can anyone help me with a resource on how to communicate using this protocol? Some light reading would be helpful. Second Question (probably not for here): Does anyone know what pins on the S42C driver are used for communications? Thank you.

Might provide some useful information:

https://www.reddit.com/r/BIGTREETECH/comments/jn8ygb/s42b_stepper_motor_closed_loop_driver_control/

|==========================|
Previous thread...

@awneil

Link, please?

Stepper driver wont move

Hello everyone, I'm working on my first project where I have to move a stepper motor using a closed loop driver board (Bigtreetech S42C) . I put everything together and uploaded the code but it doesn't move. I think I wired something wrong. The red and black wire of the left side of the breadboard are connected to a 12V power supply. Also are the leds on the driver board supposed to bling red and blue? [IMG_7257] [unnamed]

[foetusmachine]

I recommend using the Makerbase MKS SERVO42C. I believe the v1.1 firmware made some welcome changes and fixes.
