Conflict between lcd 1602 and SD Card

I am using an example that connects an LCD 1602, an SD memory, DS1307 clock and a DHT22 sensor to an Arduino one, in my case I use an Arduino nano.

Uno witch DHT, SD and LCD

I test the operation without enabling the storage in the SD memory and it works correctly, shows the values well, etc.

I just define the memory with the instruction:

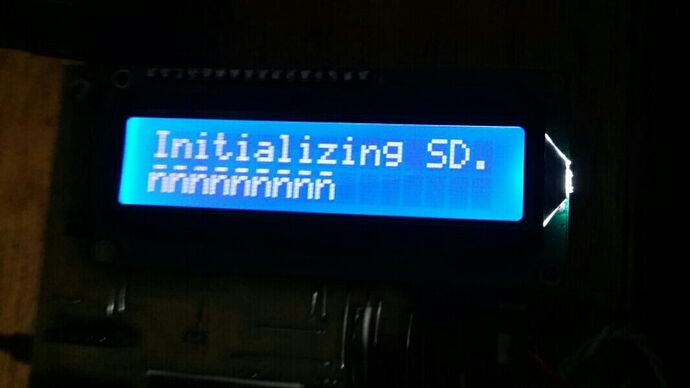

SD.begin (chipSelect), strange characters appear and it does not work anymore, the display prints strange characters, some are recognizable, but others are not.

The code is:

#include <SD.h>
#include <LiquidCrystal.h>
#include "DHT.h"

#include <Time.h>

byte thermometer_icon[8] = //icon for termometer
{
    B00100,
    B01010,
    B01010,
    B01110,
    B01110,
    B11111,
    B11111,
    B01110
};

byte humidity_icon[8] = //icon for water droplet
{
    B00100,
    B00100,
    B01010,
    B01010,
    B10001,
    B10001,
    B10001,
    B01110,
};


LiquidCrystal lcd(9, 8, 4, 5, 6, 7);

#define DHTPIN A2     // what pin we're connected to
#define DHTTYPE DHT22   // DHT 22  (AM2302)
DHT dht(DHTPIN, DHTTYPE);


const int chipSelect = 10;
char message[]= "Logger";
int previous = 0;
int pos = 0;

void setup() {

 // make sure that the default chip select pin is set to
 // output, even if you don't use it:
    pinMode(chipSelect, OUTPUT);

  dht.begin();

  lcd.begin(16, 2);
  lcd.setCursor(0, 0);
  lcd.print(" Data");
  lcd.setCursor(0, 1);
  lcd.print("Logger");
  delay(4000);
  Serial.begin(9600);

  lcd.createChar(1,thermometer_icon);
  lcd.createChar(2,humidity_icon);

  lcd.clear();
  lcd.print("Initializing SD...");
    Serial.print("Initializing SD...\n");

//*******************************************************
  if (!SD.begin(chipSelect)) {
    // don't do anything more:
    Serial.print("SD Fail\n");
    return;
  }
  Serial.print("SD OK\n");
lcd.print("SD initialized.");

delay(4000);
}


//a counter to increase after each reading
int counter = 0;

void loop() {
  char val_char[10] ;
  // Reading temperature or humidity takes about 250 milliseconds!
  // Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
  float h = dht.readHumidity();
  float t = dht.readTemperature();
  float dew = dewPoint(t, h);

  // check if returns are valid, if they are NaN (not a number) then something went wrong!
  if (isnan(t) || isnan(h)) {
    lcd.setCursor(0, 0);
    lcd.print("Failed to read from DHT");
    Serial.println("Failed to read from DHT");
  } else {
  //  lcd.clear();
    lcd.clear();
    lcd.setCursor(0, 0);
   // lcd.write(2);
    lcd.print("H:");
    itoa (h, val_char, 10);
    lcd.print(val_char);
    lcd.print("% ");
    lcd.print("T:");
    itoa (t, val_char, 10);
    lcd.print(val_char);
    lcd.print((char)223); //degree sign
    lcd.print("C"); //degree sign
    lcd.setCursor(0, 1);
  //  lcd.print("*C");
    lcd.print("PRocio:");
    itoa (dew, val_char, 10);
    lcd.print(val_char);
    lcd.print((char)223); //degree sign
    lcd.print("C");
    Serial.print("Hum: ");
    Serial.print(h);
    Serial.print(" %\t");
    Serial.print("Temperature: ");
    Serial.print(t);
    Serial.println((char)223); //degree sign



  // open the file. note that only one file can be open at a time,
  // so you have to close this one before opening another.
  File dataFile = SD.open("datalog.txt", FILE_WRITE);

  // if the file is available, write to it:
  if (dataFile) {
    dataFile.print(counter);
    dataFile.print(", ");
    dataFile.print("Humidity: ");
    dataFile.print(h);
    dataFile.print(", Temperature: ");
    dataFile.print(t);
    dataFile.print(", Dew Point: ");
    dataFile.print(dew);
    dataFile.print("\n");
    dataFile.close();
  }
  // if the file isn't open, pop up an error:
  else {
    Serial.println("error opening datalog.txt");
  }

  }


   delay(3000);
   counter++;
}

/*-----( Declare User-written Functions )-----*/
//
//Celsius to Fahrenheit conversion
double Fahrenheit(double celsius)
{
        return 1.8 * celsius + 32;
}

//Celsius to Kelvin conversion
double Kelvin(double celsius)
{
        return celsius + 273.15;
}

// dewPoint function NOAA
// reference: http://wahiduddin.net/calc/density_algorithms.htm
double dewPoint(double celsius, double humidity)
{
        double A0= 373.15/(273.15 + celsius);
        double SUM = -7.90298 * (A0-1);
        SUM += 5.02808 * log10(A0);
        SUM += -1.3816e-7 * (pow(10, (11.344*(1-1/A0)))-1) ;
        SUM += 8.1328e-3 * (pow(10,(-3.49149*(A0-1)))-1) ;
        SUM += log10(1013.246);
        double VP = pow(10, SUM-3) * humidity;
        double T = log(VP/0.61078);   // temp var
        return (241.88 * T) / (17.558-T);
}

// delta max = 0.6544 wrt dewPoint()
// 5x faster than dewPoint()
// reference: http://en.wikipedia.org/wiki/Dew_point
double dewPointFast(double celsius, double humidity)
{
        double a = 17.271;
        double b = 237.7;
        double temp = (a * celsius) / (b + celsius) + log(humidity/100);
        double Td = (b * temp) / (a - temp);
        return Td;
}

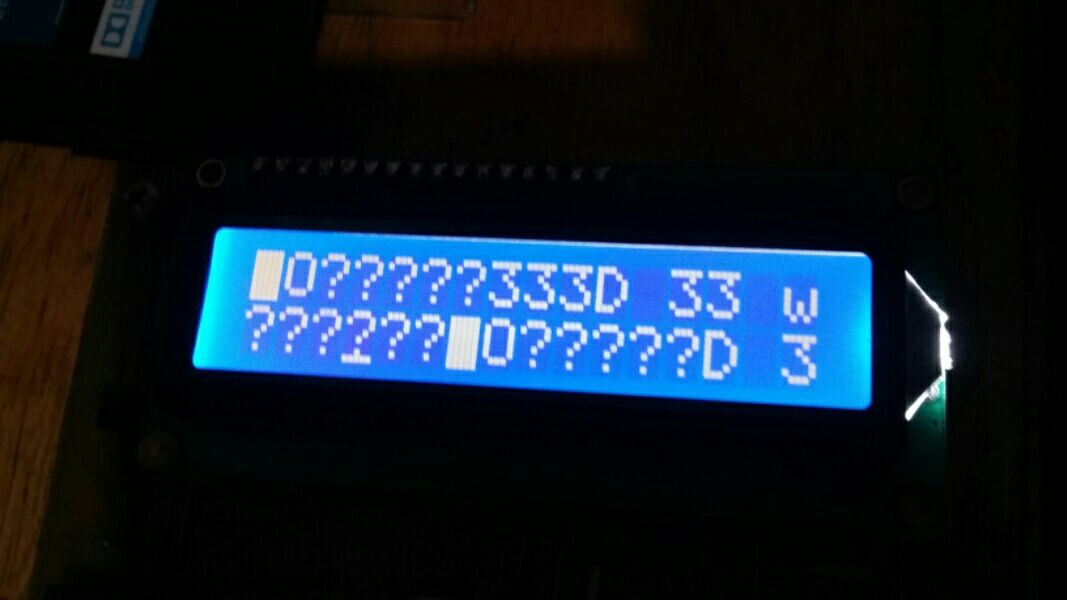

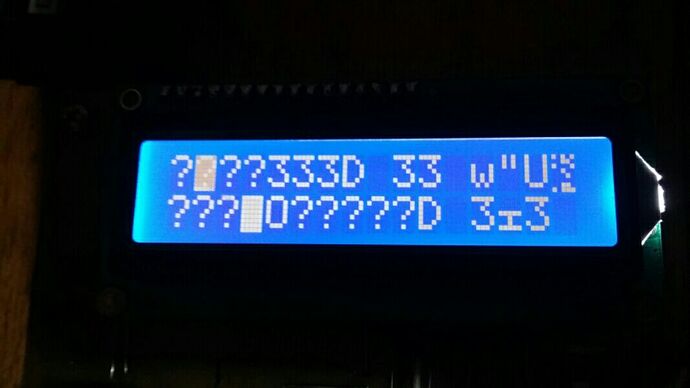

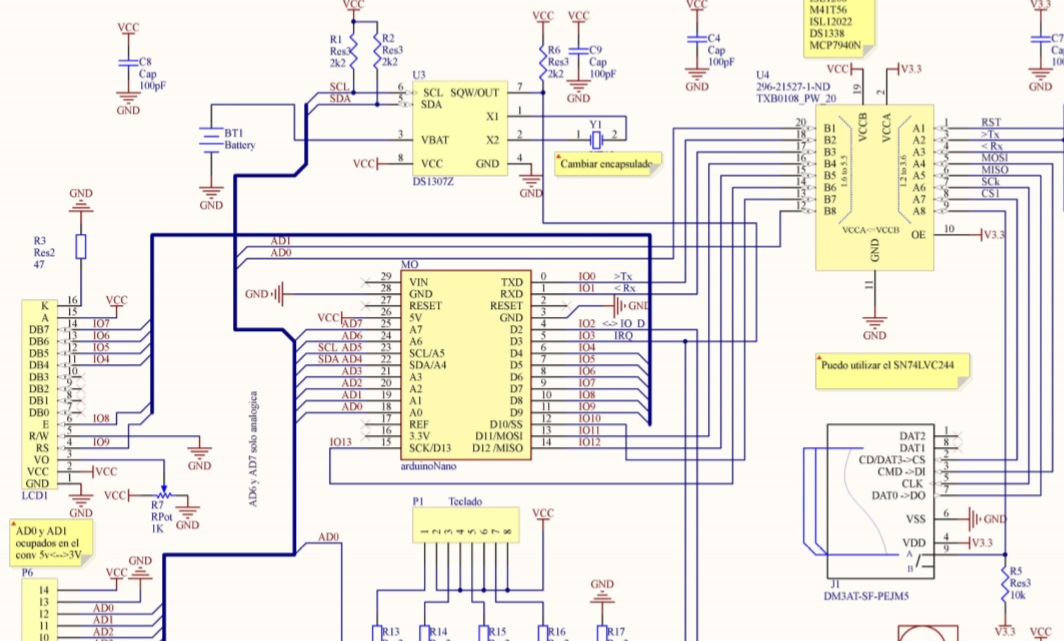

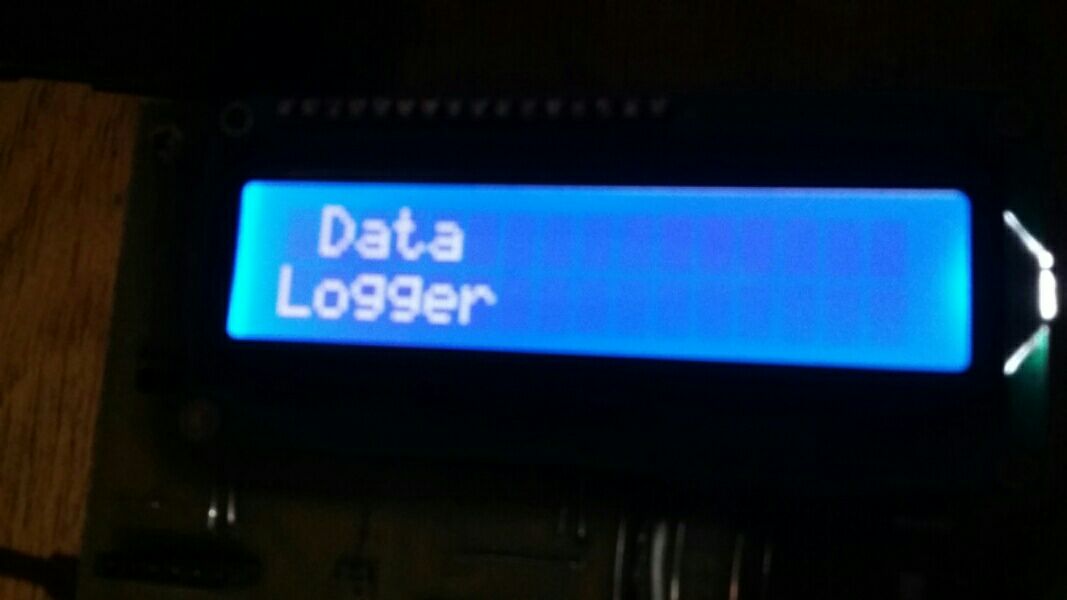

The captures of the connection diagram and the messages of the Lcd 1602 I add them

Can someone help me solve the problem of strange characters






I cannot see any error in your code or schematic to cause the wierd characters. Is it possible that you have made a wiring error, or that two wires are touching & shorting?

Is is unhelpful that the circuit schematic has been cut off and cannot be fully traced because we are not sure whether there is some subtle glitch hidden somewhere.

Suggest you try a 100 µF capacitor directly between pins 1 and 2 of the LCD, particularly if there is any distance between the modules. By the way - and not related to your problem - a useful hint. You have unusually specified a 1k potentiometer on "Vo" - pin 3 of the LCD. That is rather fortunate. Do not connect the contrast potentiometer to 5 V - just leave that end unconnected (or tie it to the wiper).

This is a silly mistake that has become ingrained in hobby (and no doubt, many professional) designs since the "early days". Not connecting it makes contrast setting twice as easy with a 10k pot, but using a 1k pot makes it much easier again! :grinning:
