How to draw using graphics library for TFT Display Sinusodial Triangle Square?

Other Hardware Displays
1

I successfully installed driver for ILI9431 TFT Display driver and i im building currently GUI for my AD9851 waveform generator. So i need to build Sinusodial Triangle Square symbol so that i can display it nicely on TFT Display.

Here is picture of how it needs to look...i try using drawCirle to draw sinus but it gives me half circle with line..so i don't know how to draw it using this library:

If someone can give me example or idea how to do it.

Thanks.

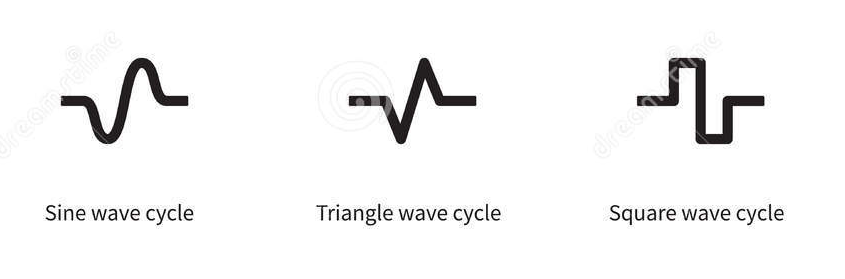

WaveGeneratorIcons.png845×279 43 KB

2

Use IrfanView or similar program on your PC to extract your icons and scale to the size you want. Save as a monochrome bitmap(s).

Then just use drawBitmap() to show on the screen.

If you wanted a real sinewave or a real triangle, just plot pixel by pixel. This is easier than f*rting about with Paint programs but not so easy when you want a stylised icon. (the sine icon is not sinusoidal !)

David.
