Kommunikation zwischen LabVIEW und Arduino via TCP/IP

Herrx · June 7, 2019, 8:36am

Hallo Forum!

Ich habe eine Frage an die LabVIEW und Arduino Experten unter euch.

Ich versuche mit LabVIEW eine Nachricht via TCP/IP an mein Arduino zu übertragen. Das Klappt auch so weit, NUR er hört erst dann auf zu übertragen wenn mein LabVIEW Programm beendet ist.

#include <SPI.h>
#include <Ethernet.h>

byte mac[] = {0x90, 0xA2, 0xDA, 0x00, 0x59, 0x67}; //adresse mac de la carte
IPAddress ip( 169, 254, 155, 2 );
IPAddress gateway( 169, 254, 155, 1 );
IPAddress subnet( 255, 255, 255, 0 );
String msg=" ";
char thisChar;
const int led_rot = 17;
EthernetServer server(3363);

void setup() {
  // initialize the ethernet device
  pinMode(led_rot, OUTPUT);
  Ethernet.begin(mac, ip);
  // start listening for clients
  server.begin();
  // Open serial communications and wait for port to open:
  Serial.begin(9600);
  while (!Serial) {
    //; // wait for serial port to connect. Needed for Leonardo only
    digitalWrite(led_rot, LOW);
  }

  Serial.print("Chat server address:");
  Serial.println(Ethernet.localIP());
}

void loop() {
  // wait for a new client:
  EthernetClient client = server.available();

  // when the client sends the first byte, say hello:
  if (client.connected()) {
    if (client) {
      if (client.available() != 0) {
        thisChar = client.read();
        msg = String(msg + thisChar);
      }
      Serial.print(msg);

      if (msg == "49") {
        digitalWrite(led_rot, HIGH);
        delay(1000);
      }
      else
      {
        digitalWrite(led_rot, LOW);
      }
    }
  }
}

Wenn ich z.B. die Zahl 49 übertragen will bekomme ich diese Augabe:

Chat server address:169.254.155.2
10:27:45.612 ->  4 49 494 4949 49494 494949 4949494 49494949 494949494 4949494949 49494949494 494949494949 4949494949494 49494949494949 494949494949494 4949494949494949 49494949494949494 494949494949494949 4949494949494949494 49494949494949494949 494949494949494949494 4949494949494949494949 49494949494949494949494 494949494949494949494949

Danke schon mal.

hajos118 · June 7, 2019, 10:48am

DAzu bräuchte ich sowohl der Arduino Sketch als auch das Vi...

michael_x · June 7, 2019, 2:01pm

Aus dem was du postest kann man immerhin erkennen:

if (msg == "49") wird wohl nie erreicht, wenn msg schon zu Beginn mit" "initialisiert wird...

Aber das ist wohl nicht dein Problem.

Herrx · June 12, 2019, 9:01am

michael_x:
Aus dem was du postest kann man immerhin erkennen:

if (msg == "49") wird wohl nie erreicht, wenn msg schon zu Beginn mit" "initialisiert wird...

Aber das ist wohl nicht dein Problem.

OK das ergibt natürlich Sinn. Wenn ich msg==""; setze geht es.

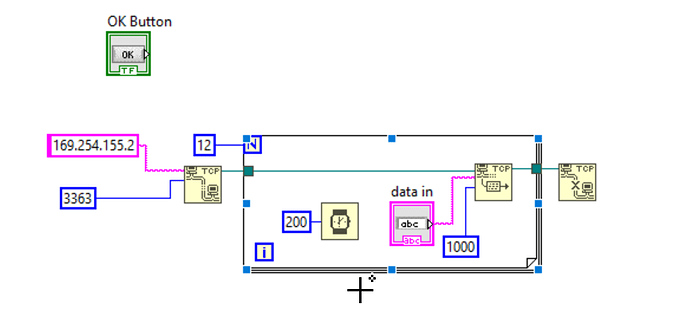

Ich kann hier kein VI hochladen. Habe nur ein Foto vom VI machen können und hier posten.

Herrx · June 12, 2019, 9:07am

Oder natürlich als ZIP.

Ja den Zähler der While Schleife auf 1 setzen und msg = String(thisChar); setzen. Dann hat es geklappt.

#include <SPI.h>
#include <Ethernet.h>

byte mac[] = {0x90, 0xA2, 0xDA, 0x00, 0x59, 0x67}; //adresse mac de la carte
IPAddress ip( 169, 254, 155, 2 );
IPAddress gateway( 169, 254, 155, 1 );
IPAddress subnet( 255, 255, 255, 0 );
String msg="";
char thisChar;
const int led_rot = 8;
EthernetServer server(3363);

void setup() {
  // initialize the ethernet device
  pinMode(led_rot, OUTPUT);
  Ethernet.begin(mac, ip);
  // start listening for clients
  server.begin();
  // Open serial communications and wait for port to open:
  Serial.begin(9600);
  while (!Serial) {
    //; // wait for serial port to connect. Needed for Leonardo only
    digitalWrite(led_rot, LOW);
  }

  Serial.print("Chat server address:");
  Serial.println(Ethernet.localIP());
}

void loop() {
  // wait for a new client:
  EthernetClient client = server.available();

  // when the client sends the first byte, say hello:
  if (client.connected()) {
    if (client) {
      while (client.available() != 0) {
        thisChar = client.read();
        msg += String(thisChar);
      }
      Serial.println(msg);

      if (msg == "49") {
        digitalWrite(led_rot, HIGH);
        delay(1000);
      }
      else
      {
        digitalWrite(led_rot, LOW);
      }
      msg="";
    }
  }
}

TCP_Arduino_Uebertragung.zip (7.92 KB)

Herrx · June 12, 2019, 12:07pm

Jetzt habe ich die Kommunikation am laufen, ABER wenn ich nun die Programme zusammen führe bekomme ich eine Fehlermeldung.

SD_und_ETH:79:22: error: conflicting declaration 'EthernetServer server'

 EthernetServer server(3363);

                      ^

T:\XXX.ino:ino:75:11: note: previous declaration as 'IPAddress server'

 IPAddress server( 169, 254, 155, 167 );

           ^

T:\XXX.ino: In function 'void setup()':

SD_und_ETH:169:10: error: 'class IPAddress' has no member named 'begin'

   server.begin();

          ^

T:\XXX.ino: In function 'void loop()':

SD_und_ETH:218:34: error: 'class IPAddress' has no member named 'available'

   EthernetClient client = server.available();

                                  ^

Mehrere Bibliotheken wurden für "DS3231.h" gefunden
 Benutzt: C:\Users\XXX\Documents\Arduino\libraries\DS3231
 Nicht benutzt: C:\Users\XXX\Documents\Arduino\libraries\DS3231-master
exit status 1
conflicting declaration 'EthernetServer server'

Problem ist kla.

Ich versuche auf der einen Seite das Arduino als Client und einmal als Server zu betreiben.

Code mit der LabVIEW Kommunikation:

#include <SPI.h>
#include <Ethernet.h>

byte mac[] = {0x90, 0xA2, 0xDA, 0x00, 0x59, 0x67}; //adresse mac de la carte
IPAddress ip( 169, 254, 155, 2 );
IPAddress gateway( 169, 254, 155, 1 );
IPAddress subnet( 255, 255, 255, 0 );
String msg="";
char thisChar;
const int led_rot = 8;
EthernetServer server(3363);

void setup() {
  // initialize the ethernet device
  pinMode(led_rot, OUTPUT);
  Ethernet.begin(mac, ip);
  // start listening for clients
  server.begin();
  // Open serial communications and wait for port to open:
  Serial.begin(9600);
  while (!Serial) {
    //; // wait for serial port to connect. Needed for Leonardo only
    digitalWrite(led_rot, LOW);
  }

  Serial.print("Chat server address:");
  Serial.println(Ethernet.localIP());
}

void loop() {
  // wait for a new client:
  EthernetClient client = server.available();

  // when the client sends the first byte, say hello:
  if (client.connected()) {
    if (client) {
      while (client.available() != 0) {
        thisChar = client.read();
        msg += String(thisChar);
      }
      //msg ;
      Serial.println(msg);

      if (msg == "49") {
        digitalWrite(led_rot, HIGH);
        delay(1000);
      }
      else
      {
        digitalWrite(led_rot, LOW);
      }
      msg="";
    }
  }
}

Und der Code des FTP-Servers

/*
   FTP passive client for IDE v1.0.1 and w5100/w5200
   Posted October 2012 by SurferTim
   Modified 6 June 2015 by SurferTim
*/

#include <SD.h>
#include <SPI.h>
#include <Ethernet.h>
// comment out next line to write to SD from FTP server
#define FTPWRITE

// this must be unique
byte mac[] = { 0x90, 0xA2, 0xDA, 0x00, 0x59, 0x67 };

// change to your network settings
IPAddress ip( 169, 254, 155, 2 );
IPAddress gateway( 192, 168, 155, 1 );
IPAddress subnet( 255, 255, 255, 0 );

// change to your server
IPAddress server( 169, 254, 155, 167 );

EthernetClient client;
EthernetClient dclient;

char outBuf[128];
char outCount;

// change fileName to your file (8.3 format!)
String fileName = " ";

void setup()
{
  Serial.begin(9600);

  digitalWrite(10, HIGH);

  if (!SD.begin(4))
  {
    Serial.println(F("SD init fail"));
  }

  Ethernet.begin(mac, ip, gateway, gateway, subnet);
  digitalWrite(10, HIGH);
  delay(2000);
  Serial.println(F("Bitte Textateiname eingeben eingeben: (z.b. 20190428.txt)"));
}

void loop()
{

  while (Serial.available()) {
    fileName = Serial.readString();
    fileName.remove(12);
    Serial.println(fileName);
  }

  if (fileName != " ")
  {
    if (doFTP()) Serial.println(F("FTP OK"));
    else Serial.println(F("FTP FAIL"));
    fileName = " ";
  }

  //  if(inChar == 'r')
  //  {
  //    readSD();
  //  }

}

File fh;

byte doFTP()
{

  Serial.println(F("doFTP"));
#ifdef FTPWRITE
  fh = SD.open(fileName, FILE_READ);
#else
  SD.remove(fileName);
  fh = SD.open(fileName, FILE_WRITE);
#endif

  if (!fh)
  {
    Serial.println(F("SD open fail"));
    return 0;
  }

#ifndef FTPWRITE
  if (!fh.seek(0))
  {
    Serial.println(F("Rewind fail"));
    fh.close();
    return 0;
  }
#endif

  Serial.println(F("SD opened"));

  if (client.connect(server, 21)) {
    Serial.println(F("Command connected"));
  }
  else {
    fh.close();
    Serial.println(F("Command connection failed"));
    return 0;
  }

  if (!eRcv()) return 0;

  client.println(F("USER myuser"));

  if (!eRcv()) return 0;

  client.println(F("PASS mypassword"));

  if (!eRcv()) return 0;

  client.println(F("SYST"));

  if (!eRcv()) return 0;

  client.println(F("Type I"));

  if (!eRcv()) return 0;

  client.println(F("PASV"));

  if (!eRcv()) return 0;

  char *tStr = strtok(outBuf, "(,");
  int array_pasv[6];
  for ( int i = 0; i < 6; i++) {
    tStr = strtok(NULL, "(,");
    array_pasv[i] = atoi(tStr);
    if (tStr == NULL)
    {
      Serial.println(F("Bad PASV Answer"));

    }
  }

  unsigned int hiPort, loPort;

  hiPort = array_pasv[4] << 8;
  loPort = array_pasv[5] & 255;

  Serial.print(F("Data port: "));
  hiPort = hiPort | loPort;
  Serial.println(hiPort);

  if (dclient.connect(server, hiPort)) {
    Serial.println(F("Data connected"));
  }
  else {
    Serial.println(F("Data connection failed"));
    client.stop();
    fh.close();
    return 0;
  }

#ifdef FTPWRITE
  client.print(F("STOR "));
  client.println(fileName);
#else
  client.print(F("RETR "));
  client.println(fileName);
#endif

  if (!eRcv())
  {
    dclient.stop();
    return 0;
  }

#ifdef FTPWRITE
  Serial.println(F("Writing"));

  byte clientBuf[64];
  int clientCount = 0;

  while (fh.available())
  {
    clientBuf[clientCount] = fh.read();
    clientCount++;

    if (clientCount > 63)
    {
      dclient.write(clientBuf, 64);
      clientCount = 0;
    }
  }

  if (clientCount > 0) dclient.write(clientBuf, clientCount);

#else
  while (dclient.connected())
  {
    while (dclient.available())
    {
      char c = dclient.read();
      fh.write(c);
      Serial.write(c);
    }
  }
#endif

  dclient.stop();
  Serial.println(F("Data disconnected"));

  if (!eRcv()) return 0;

  client.println(F("QUIT"));

  if (!eRcv()) return 0;

  client.stop();
  Serial.println(F("Command disconnected"));

  fh.close();
  Serial.println(F("SD closed"));
  return 1;
}

byte eRcv()
{

  Serial.println(F("eRcv"));
  byte respCode;
  byte thisByte;

  while (!client.available()) delay(1);

  respCode = client.peek();

  outCount = 0;

  while (client.available())
  {
    thisByte = client.read();
    Serial.write(thisByte);

    if (outCount < 127)
    {
      outBuf[outCount] = thisByte;
      outCount++;
      outBuf[outCount] = 0;
    }
  }

  if (respCode >= '4')
  {
    efail();
    return 0;
  }

  return 1;
}


void efail()
{

  Serial.println(F("efail"));
  byte thisByte = 0;

  client.println(F("QUIT"));

  while (!client.available()) delay(1);

  while (client.available())
  {
    thisByte = client.read();
    Serial.write(thisByte);
  }

  client.stop();
  Serial.println(F("Command disconnected"));
  fh.close();
  Serial.println(F("SD closed"));
}

void readSD()
{

  Serial.println(F("readSD"));
  fh = SD.open(fileName, FILE_READ);

  if (!fh)
  {
    Serial.println(F("SD open fail"));
    return;
  }

  while (fh.available())
  {
    Serial.write(fh.read());
  }

  fh.close();
}

Wollte die serielle Eingabe aus LabVIEW realisieren. Danke schon mal.
