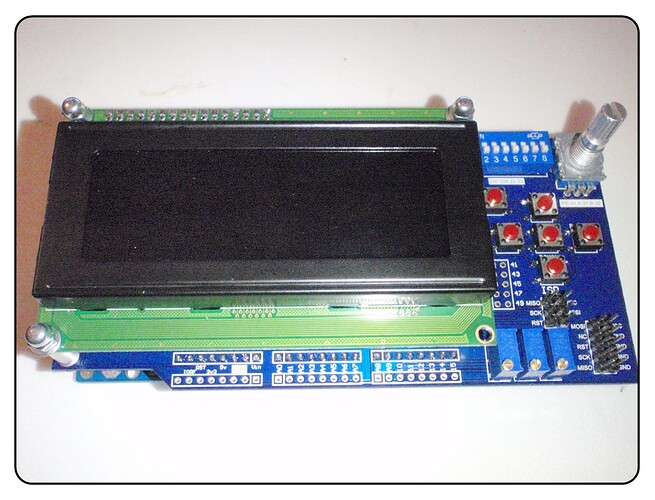

MEGA Shield 4x20, rotary encoder, 6 x PB

1 x rotary encoder
1 x 8 section dipswich
3 x analog pot.
6 x push button
1 x LCD
2 x ISP
Sockets for programming Attiny45, Attiny 44, Attiny2313, Atmega 8.
Connections for unused pins on the edge if the board.

Maybe will be helpful for someone.

Arduino MEGA LCD shield.pdf (336 KB)

CAMtastic1.Cam (1.63 MB)

CAMtastic2.Cam (41.4 KB)
