Reading values from multiple I2C GY-521 gyroscopes through PCA9548A MUX, stability problem

Other Hardware Sensors
1

Hi, I am having trouble with my project using GY-521 I2C gyroscopes through I2C multiplexer PCA9548A. I have 5 segment (let's call it) table, operated by 5 linear DC motors, segments are connected by hinges. I am using EPS32 D1 R32 board for this (for WiFi control of motors). I would like to be able to get their approximate position using 5 gyroscopes (actually accelerometers included within them), one mounted on each of segments. GY-521s can be addressed only by two I2C addresses (0x68 and 0x69). So I'm trying to use them with MUX that can be addressed to mirror I2C communication to one of 8 of his channels. When connected directly to the EPS board the gyroscopes work all fine. Problems begin when they are connected through MUX.

ESP32-gyros-schematics
ESP32-gyros-schematics823×676 5.61 KB

This example is with 4 gyros only. Let's say I set everything right and I poll the gyro readings and all 4 give some right values, taking drift into account:

4gyros-working

Then I manipulate with them (and with wirings) and accidentaly break some connection, so the I2C communication gets messed up. When it gets back again some of gyros usually give only 0.0 reading or some random number (but constantly the same one).
4gyros

4gyros-2

Problem is they get stuck in this state like freezed, even when I disconnect them and connect them back again the same value appears again from the faulty ones (like the value is stuck in given register or something). I would expect they would reset when I reset the EPS32 controller or disconnect it from power source. But they are freezed, I have to connect them directly to EPS board and after reset they start to give correct readings again. When I then connect them through MUX they are fine (for a while). But even when they are giving wrong readings I2C scanner can always identify them through MUX.
What is the problem here? Can I avoid this or at least make them "reset" somehow directly on the MUX? And is this the I2C line characteristic that it is so sensitive to wiring problems? Because I will need som longer wires for this project from sensors to controller.
Is there a better way to read these values? On forum here some people mentioned SPI communication.
Part of my code relevant to the gyroscope reading:

#include <WiFi.h>
#include <WebServer.h>
#include <ESPmDNS.h>
#include <Wire.h>
#include <string>
#include "motors.h"
#include "misc.h"
#include "serverFunctions.h"

using namespace std;

vector<Gyros> gyroList;

void setup(void) {
  initComm();		// Serial.begin(9600); WiFi.begin(ssid, pass); MSD.begin(device_name) ...

  //  ------------   Initialize Gyroscopes
  Gyros gyro1(1, 3), gyro2(2, 4), gyro3(3, 5), gyro4(4, 6);
  gyroList.push_back(gyro1);
  gyroList.push_back(gyro2);
  gyroList.push_back(gyro3);
  gyroList.push_back(gyro4);

  for (auto& gyroIdx : gyroList) gyroIdx.gyroBegin();
}

void loop(void) {
  server.handleClient();
  if (program.getGyroRead()) pollGyros();
  if (program.getIICRead()) getIICScannerReading();	// I2C Scanner reading
}

void pollGyros(void) {
  sensors_vec_t acc;
  unsigned long actualTime = millis();
  static unsigned long pollTime = 0;

  if (actualTime - pollTime > 2000) {
    for(auto& gyroIdx: gyroList){
      selectMuxChannel(gyroIdx.getMuxChannel());
      delay(25);
      acc = gyroIdx.getAccelReading();
      Serial.print("Gyroscope number ");
      Serial.print((int)gyroIdx.getGyroNumber());
      Serial.print(" at multiplexer channel ");
      Serial.print((int)gyroIdx.getMuxChannel());
      Serial.print(", Y: ");
      Serial.print(acc.y,4);
      Serial.println(" m/s^2");
      pollTime = actualTime;
    }
  Serial.println();
  }
}

thank you for every advice

2

If you have enough I/O pins, there is no reason to use a multiplexer.

Simply assign an I/O pin to the address input of each IMU, and use those to make sure that only one IMU has the address 0x68 at any one time.

For four IMUs, you need four I/O to address pins, with all devices in parallel on the I2C bus.

3

I should have mentioned, that I am controlling 5 DC motors with PWM so I need 10 pins for them. I will also be using at least one limit switch to prevent collisions but maybe more of them. So I was looking for some way to save pins for later. I actually tried PCF8574 I/O expander for address switching of individual gyros and there was a problem that when the expander pin was connected directly to AD0 GY-521 address pin and it was set high the actual voltage level on pin was only 0.5V or somewhere around this value (without connection it was normal logical high) so it was not enough to switch the address. There is some input/output impedance issue, maybe using some resistor could help. Could you give me some advice on this?

4

Hi, @tapo1
Can you please tell us your application.
What is your project.

Thanks... Tom... :grinning: :+1: :coffee: :australia:

5

Hi Tom,

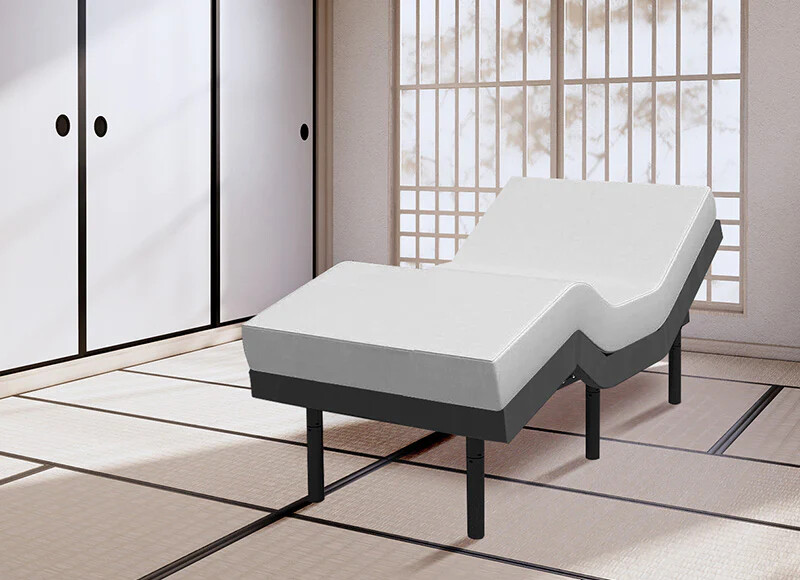

it's something like bed, that can be transformed to "chair" and also tilted in some way, I am doing just motor controls, it's actually someone else's project.

T

6

Did you take a look at the schematic for GY-521?

Screenshot_20231216-134919
Screenshot_20231216-1349191920×852 155 KB

There is a 4K7 pull-down on AD0. This must be too strong for the pcf8574 outputs, which only pull up weakly, unlike an Arduino/ESP output pin.

You could remove the 4K7. Or connect a stronger external pull-up like 1K.

If you don't use the i2c multiplexer, you are going to have a problem. Each GY-521 has a pair of 4K7 pull-ups on SDA & SCL. 8 of these pairs in parallel, because they are connected to the same bus, will be equivalent to ~0.5K pull-ups on SCL & SDA, which I suspect is too strong and will prevent the i2c bus from working. You could remove the 4K7 pull-ups from all but one GY-521.

7

I haven't thought of that, thank you for information, I will keep that in mind. By connecting 1K external pullup on AD0 you mean adding 1K between 3.3V and AD0?

1 Like
8

First question. How far is "longer"? I2C was intended for "within a PCB" processor communications, not "across the room". In some circumstances it can be made to work much further than the original intent, but if you're running it around a bed, you'll want to have an oscilloscope, and know how to use it, for debugging when things go awry. The 9548 helps with this, essentially reconstituting the I2C bus to individual busses for each device. You might need stronger pullups for your longer runs, though, not sure about that.
Second question. Your description was unclear(perhaps it's me). Are you completely power cycling the whole project for a reset, or selectively connecting/disconnecting while powered? The latter is unlikely to be a successful strategy.

Snippets don't get replies. Post your whole code, context is important - if you don't know where the problem lies, how can anyone be expected to help you if you hide all but a small portion of the code?

9

If I place my case with ESP32 under the middle of the bed I assume I will need maybe 0.5m long cables from some of the boxes with GY-521. I was thinking of using FTP cables with RJ45 connectors for these connections. But I don't know if it will work. Is there a solution for this? Maybe using some accelerometers with UART or SPI interface?

For second question I am not sure what you mean. If you mean resetting the "frozen" GY-521s I have to turn off the whole project and connect "frozen" gyroscopes one by one directly to ESP I2C bus and turn it on and they will start working. I thought that it should be the same if I leave them connected to MUX and just turn the power off but it was not working for some reason, they remained stuck.
But I made some changes, I connected all GY-521s directly to ESP I2C without MUX, I address them using ESP pins and I used PCA9685 PWM I2C driver to control DC motor drivers to save pins. It is working fine on the table next to PC but I am afraid if there is some problem with I2C due to longer connection cables it could be mess.
As for the code posting it is quite long, there is communication with ESP through Async Web Server, sending readings to PC and other misc functions. But here it is:
.ino file:

#include <WiFi.h>
#include <ESPmDNS.h>
#include <Wire.h>
#include <string>
#include <AsyncElegantOTA.h>  // async OTA
#include <ESPmDNS.h>
#include <ESPAsyncWebServer.h>
#include "motors.h"
#include "misc.h"
#include "serverFunctions.h"

using namespace std;

void runMotorGyroControl(void);

void setup(void) {
  initComm();

  pinMode(ONBOARD_LED_PIN, OUTPUT);  // Onboard LED

  //  ------------   Initialize PCA9685 I2C Motor PWM controller  -  required for motors initialization
  PWMController.begin();
  PWMController.setPWMFreq(100);
  //  ------------   Initialize Motors
  LinearMotor motor1, motor2, motor3;
  motorList.push_back(motor1);
  motorList.push_back(motor2);
  motorList.push_back(motor3);

  //  ------------   Initialize Buttons
  //Buttons button1(1, stopButtonHandler, 1), button2(2, stopButtonHandler, 1), button3(3, stopButtonHandler, 1);  // btnId must be same as buttonNumber in buttonXX !!! So starting from 1, increments by 1
  //buttonList.push_back(button1);
  //buttonList.push_back(button2);
  //buttonList.push_back(button3);

  //  ------------   Initialize Gyroscopes
  //Gyros gyro1(1, 3), gyro2(2, 4), gyro3(3, 5), gyro4(4, 6);           // --- gyro(motorNumber; MUXChannel)
  Gyros gyro1(1, 16), gyro2(2, 17), gyro3(3, 25), gyro4(4, 26);         // --- gyro(motorNumber; Arduino pin of GY-521 AD0 address pin)
  gyroList.push_back(gyro1);
  gyroList.push_back(gyro2);
  gyroList.push_back(gyro3);
  gyroList.push_back(gyro4);
  for (auto& gyroIdx : gyroList) {
    gyroIdx.gyroBegin();
    pinMode(gyroIdx.getAD0Pin(), OUTPUT);
    digitalWrite(gyroIdx.getAD0Pin(), HIGH);
  }
}

void loop(void) {
  stopMotorsOnTimer();
  //pollButtons();
  if (program.getGyroRead()) pollGyros();
  if (program.getIICRead()) getIICScannerReading();
  if (program.getMotorGyroControl()) runMotorGyroControl();
  //handleProgram();
}

// --------------- Controlling motors using gyro position
void runMotorGyroControl(void) {
  static unsigned long pollTime = 0;
  unsigned long actualTime = millis();
  sensors_vec_t actualAccReading;
  //bool directionSwitch = false;

  if (actualTime - pollTime > 300)		// polling in very short intervals causes problems
    for (auto& gyroIdx : gyroList) {

      uint8_t motorListIdx = gyroIdx.getMotorNumber() - 1;
      selectGyro(gyroIdx.getAD0Pin());
      actualAccReading = gyroIdx.getAccelReading();  //a.acceleration;
                                                     //directionSwitch = (abs(motorGyroOffset-lastYReading)>abs(motorGyroOffset-actualYReading));
      selectGyro(0);
      if ((actualAccReading.y > (gyroIdx.getGyroOffset() + gyroIdx.getGyroRange())) && (motorList[motorListIdx].getMotorDirection() != MOTOR_BACKWARD)) {
        Serial.println(" - Move backward");  // motor must be stopped before changing direction, otherwise the motor driver of motor gets stuck for some reason
        motorList[motorListIdx].setMotorDirection(MOTOR_STOP);
        motorList[motorListIdx].runMotor();
        motorList[motorListIdx].setMotorStopTime(0);
        motorList[motorListIdx].setMotorState(false);
        delay(100);
        motorList[motorListIdx].setMotorDirection(MOTOR_BACKWARD);
        motorList[motorListIdx].setMotorStopTime(0);
        motorList[motorListIdx].setMotorSpeed(255);
        motorList[motorListIdx].runMotor();
      } else if ((actualAccReading.y < (gyroIdx.getGyroOffset() - gyroIdx.getGyroRange())) && (motorList[motorListIdx].getMotorDirection() != MOTOR_FORWARD)) {
        Serial.println(" - Move forward");
        motorList[motorListIdx].setMotorDirection(MOTOR_STOP);
        motorList[motorListIdx].runMotor();
        motorList[motorListIdx].setMotorStopTime(0);
        motorList[motorListIdx].setMotorState(false);
        delay(100);
        motorList[motorListIdx].setMotorDirection(MOTOR_FORWARD);
        motorList[motorListIdx].setMotorStopTime(0);
        motorList[motorListIdx].setMotorSpeed(255);
        motorList[motorListIdx].runMotor();
      } else if ((abs(actualAccReading.y - gyroIdx.getGyroOffset()) < abs(gyroIdx.getGyroOffset() - gyroIdx.getGyroRange()))
                 && (motorList[motorListIdx].getMotorDirection() != MOTOR_STOP)) {  //&&(actualAccReading.y<(gyroIdx.getGyroOffset()+gyroIdx.getGyroRange()))&&(motorList[motorListIdx].getMotorDirection()!=MOTOR_STOP)){
        Serial.println(" - Stop");
        motorList[motorListIdx].setMotorDirection(MOTOR_STOP);
        motorList[motorListIdx].runMotor();
        motorList[motorListIdx].setMotorStopTime(0);
        motorList[motorListIdx].setMotorState(false);
        //return 1;             //  return motor reached final position - end of program step
      }
      pollTime = actualTime;
    }
}

motors.h and motors.cpp

/*
Motor class header
*/
#ifndef MOTORS_H
#define MOTORS_H


#include "ESPAsyncWebServer.h"
#include <ArduinoJson.h>
#include <WiFi.h>
#include <Adafruit_PWMServoDriver.h>
#include <string>
#include <vector>

#define MOTOR_BACKWARD   1
#define MOTOR_STOP       2
#define MOTOR_FORWARD    3

#define MOTOR_NUMBER     0
#define MOTOR_DIRECTION  1
#define MOTOR_SPEED      2
#define MOTOR_TIME       3

using namespace std;

//- - - - - - - - - - ESP32 Channel Variables  - - - - - - - - - -
const int FREQ = 1000;      //  Set up PWM Frequency
const int RES = 8;         //  Set up PWM Resolution
const int NUMBER_OF_MOTORS = 5; // number of motors in use
const int MAX_MOTOR_RUN_TIME = 15000;      // max motor runtime

inline Adafruit_PWMServoDriver PWMController= Adafruit_PWMServoDriver(0x40);   // PCA9685 I2C PWM controller

// ------------------ Motors controlled directly from ESP32
//const int En_LR  ...       // En_X pins hardwired to HIGH
//  MAXIMUM 5 Motors !!!
//const int Outputs[10]={12, 13, 16, 17, 14, 27, 25, 26, 18, 19};   //list of output pins for motor PWM control: 0,2,4,... - LPWM; 1,3,5,... - RPWM
//- - - - - - - - - - Channel assignments - - - - - - - - - -
const int Channels[10] = {15, 14, 13, 12, 11, 10, 9, 8, 7, 6};  // ESP32 PWM channels list
//  ----------------    ESP32 pin assigned to channels list
// Motor nr.  |   L_PWM pin | R_PWM pin
//    1       |     12      |   13
//    2       |     16      |   17
//    3       |     14      |   27
//    4       |     25      |   26
//    5       |     18      |   19

//  -----------------  Motors controlled using PCA9685 I2C PWM controller ( 0-15 output pin numbers )
const int Outputs[10]={0, 1, 2, 3, 4, 5, 6, 7, 8, 9};

class LinearMotor {
private:
  int pin_LPWM, pin_RPWM, channel_LPWM, channel_RPWM;
  int motorNumber, motorSpeed, motorDirection, motorSpeed12bit;
  unsigned long motorStopTime;
  bool motorState;

public:
  LinearMotor(void);
  int getChannelLPWM(void) const {return channel_LPWM;}
  int getChannelRPWM(void) const {return channel_RPWM;}
  int getPinLPWM(void) const {return pin_LPWM;}
  int getPinRPWM(void) const {return pin_RPWM;}
  int getMotorNumber(void) const {return motorNumber;}
  int getMotorSpeed(void) const {return motorSpeed;}
  int getMotorDirection(void) const {return motorDirection;}
  unsigned long getMotorStopTime(void) const {return motorStopTime;}
  bool getMotorState(void) const {return motorState;}
  void setMotorSpeed(int speed) {motorSpeed = speed;}
  void setMotorDirection(int direction){motorDirection = direction;}
  void setMotorStopTime(unsigned int motorRunTime) {motorStopTime = (motorRunTime>0) ? millis() + motorRunTime : 0;}
  void setMotorState(bool state){motorState = state;}
  int calcMotorSpeed12bit(void);
  void runMotor(void);

  static int motorCount;
};

inline AsyncWebServer server(80);
inline AsyncEventSource events("/events");
inline int LinearMotor::motorCount = 0;    // initialize static int motor counter
inline vector<LinearMotor> motorList;

void stopMotorsOnTimer(void);
void stopMotor(uint8_t motorNumber);
void fetchServerMotorCommand(int (&opArray)[4], AsyncWebServerRequest *request);

#endif

#include "motors.h"

LinearMotor::LinearMotor(void){
  motorCount++;
  if (motorCount>NUMBER_OF_MOTORS) Serial.println("WARNING! Current motor number exceeds NUMBER_OF_MOTORS constant!!");
  else {
    motorNumber = motorCount;
    channel_LPWM = Channels[2*(motorNumber-1)]; // set LPWM channel from PWM channels' list
    channel_RPWM = Channels[2*(motorNumber-1)+1]; // set RPWM channel from PWM channels' list
    pin_LPWM = Outputs[2*(motorNumber-1)];    //set output pin number for LPWM from pins' list
    pin_RPWM = Outputs[2*(motorNumber-1)+1];  //set output pin number for RPWM from pins' list

    // ---------  for direct pwm control from ESP32
    /*
    ledcSetup(channel_LPWM, FREQ,RES) ;      // setup PWM channel for BST L_PWM
    ledcSetup(channel_RPWM, FREQ,RES) ;      // setup PWM channel for BST R_PWM
    ledcAttachPin( pin_LPWM, channel_LPWM) ; // Attach BST L_PWM
    ledcAttachPin( pin_RPWM, channel_RPWM) ; // Attach BST R_PWM
    ledcWrite(channel_LPWM,0);              // initial PWM value set to 0 on both channels - motor stopped
    ledcWrite(channel_RPWM,0);
    */
    // ---------  for pwm control using PCA9685 servo controler
    PWMController.setPWM(pin_LPWM, 0, 1);   // initial PWM value set to 0 on both pins - motor stopped
    PWMController.setPWM(pin_RPWM, 0, 1);
    // ------------------
    motorSpeed = 0;
    motorSpeed12bit = 1;
    motorDirection = MOTOR_STOP;             // initial direction - 2 = STOP
    motorStopTime = 0;
    motorState = false;                     // motor is stopped
    Serial.print(" Initialized motor number: ");
    Serial.print(motorCount);
    Serial.print("; PCA9685 pin numbers for motor LPWM/RPWM: ");
    Serial.print(pin_LPWM);
    Serial.print("/");
    Serial.println(pin_RPWM);
  }
}

int LinearMotor::calcMotorSpeed12bit(void){
  if (motorSpeed == 0) motorSpeed12bit = 1;
  else if (motorSpeed >= 255) motorSpeed12bit = 4095;
    else motorSpeed12bit = 16 * motorSpeed;
  return motorSpeed12bit;
}

/*
// ---    pwm directly from Arduino
void LinearMotor::runMotor(void){
   switch(motorDirection) {
      case MOTOR_BACKWARD:
        ledcWrite(channel_LPWM,0);
        ledcWrite(channel_RPWM,motorSpeed);
        setMotorState(true);
      break;
      case MOTOR_STOP:
        ledcWrite(channel_LPWM,0) ;
        ledcWrite(channel_RPWM,0);
        setMotorState(false);
        setMotorStopTime(0);
      break;
      case MOTOR_FORWARD:
        ledcWrite(channel_LPWM,motorSpeed);
        ledcWrite(channel_RPWM,0);
        setMotorState(true);
      break;
    }
}
*/

//  --------- pwm from I2C PCA9685 servo driver
void LinearMotor::runMotor(void){
  calcMotorSpeed12bit();
   switch(motorDirection) {
      case MOTOR_BACKWARD:
        PWMController.setPWM(pin_LPWM, 0, 1);                 //  LPWM ouput - 0
        PWMController.setPWM(pin_RPWM, 0, motorSpeed12bit);   //  RPWM output - speed
        setMotorState(true);
      break;
      case MOTOR_STOP:
        PWMController.setPWM(pin_LPWM, 0, 1);
        PWMController.setPWM(pin_RPWM, 0, 1);
        setMotorState(false);
        setMotorStopTime(0);
      break;
      case MOTOR_FORWARD:
        PWMController.setPWM(pin_LPWM, 0, motorSpeed12bit);  //  LPWM ouput - speed
        PWMController.setPWM(pin_RPWM, 0, 1);                //  RPWM output - 0
        setMotorState(true);
      break;
    }
}

void stopMotorsOnTimer(void) {
  unsigned long actualTime = millis();

  for (auto& motorIdx : motorList) {
    if ((motorIdx.getMotorState() == true) && (motorIdx.getMotorStopTime() > 0) && (actualTime > motorIdx.getMotorStopTime())) {  // if motor is running && runtime is not infinite && actual time is greater than stop time of motor
      motorIdx.setMotorDirection(MOTOR_STOP);
      motorIdx.runMotor();
      motorIdx.setMotorState(false);
      motorIdx.setMotorStopTime(0);
    }
  }
}

void stopMotor(uint8_t motorNumber) {
  for (auto& motorIdx : motorList) {
    if (motorIdx.getMotorNumber() == motorNumber) {  // stop motor with number motorNumber
      motorIdx.setMotorDirection(MOTOR_STOP);
      motorIdx.runMotor();
      motorIdx.setMotorState(false);
      motorIdx.setMotorStopTime(0);
    }
  }
}

//  ----------------  AsyncWebServer

void fetchServerMotorCommand(int (&operationArray)[4], AsyncWebServerRequest *request){
  unsigned int time = 0;
  unsigned int tmpSpeed = 0;
  String response = "Command: \"motor\"; ";
  String strTime = "";
  String strMotorSpeed = "";
  String strDir = "";
  String strMotorNum = "";
  String strSerialMessage = "{\"command\":\"motor\",";

  if (!(request->hasArg("motornum"))){     //Parameter not found
    response += "Motor number not specified, setting motor number 0; ";
    strSerialMessage += "\"motornum\":0,";
    operationArray[0]=0;
  }else {
    operationArray[0] = request->arg("motornum").toInt();
    if ((operationArray[0] > NUMBER_OF_MOTORS) || (operationArray[0] < 1)) {
      operationArray[0] = 0;
      response += "Motor number out of range or wrong format!!! Setting motor number 0; Number of motors: ";
      response += to_string(NUMBER_OF_MOTORS).c_str();
      response += "; ";
      strSerialMessage += "\"motornum\":0,";
    }
    else {
      response += "Motor number: ";
      response += request->arg("motornum")+", ";
      strSerialMessage += "\"motornum\":";
      strSerialMessage += request->arg("motornum")+",";
    }
  }

      // Direction: backward = 1, stop = 2, forward = 3;
  if (!request->hasArg("dir")){
    response += " Direction not specified, setting default stop direction; ";
    strSerialMessage += "\"dir\":\"stop\",";
    operationArray[1] = 2;
  } else if((request->arg("dir") != "bwd")&&(request->arg("dir") != "stop")&&(request->arg("dir") != "fwd")){
    response += " Unknown direction parameter, setting default stop direction; ";
    strSerialMessage += "\"dir\":\"stop\",";
    operationArray[1] = 2;
    }
    else {
      response += "Direction: ";
      response += request->arg("dir")+", ";
      if (request->arg("dir") == "bwd") operationArray[1] = 1;
      else if (request->arg("dir") == "stop") operationArray[1] = 2;
      else if (request->arg("dir") == "fwd") operationArray[1] = 3;

      strSerialMessage += "\"dir\":";
      strSerialMessage += "\""+request->arg("dir")+"\",";
  }

  if (request->arg("dir") == "stop"){
   response += " Motor speed set to 0 due to \"direction : stop\" option; ";
   strSerialMessage += "\"motorspeed\":0,";
   operationArray[2] = 0;
  }
  else if (!request->hasArg("motorspeed")){
    response += " Motor speed not specified, setting default speed 0; ";
    strSerialMessage += "\"motorspeed\":0,";
    operationArray[2] = 0;
    }
    else{
      strMotorSpeed =  request->arg("motorspeed");
      tmpSpeed = strMotorSpeed.toInt();
      if ((tmpSpeed>255)||(tmpSpeed<0)) {
        response += " Motor speed value out of range (0-255), setting default speed 0; ";
        strSerialMessage += "\"motorspeed\":0,";
        operationArray[2] = 0;
      }
      else{
        response += "Motor speed: ";
        response += request->arg("motorspeed")+", ";
        strSerialMessage += "\"motorspeed\":";
        strSerialMessage += request->arg("motorspeed")+",";
        operationArray[2] = tmpSpeed;
      }
    }

  strTime =  request->arg("time");
  if (strTime == ""){
    response += " Time not specified: unlimited time\n";
    strSerialMessage += "\"time\":0";
    operationArray[3] = 0;
  }
  else{
    response += "Time: ";
    response += strTime +"\n";
    strSerialMessage += "\"time\":";
    strSerialMessage += strTime;
    //strTime =  server.arg("time");
    time = strTime.toInt();
    if (time > MAX_MOTOR_RUN_TIME) time = MAX_MOTOR_RUN_TIME;
    operationArray[3] = time;
  }

  strSerialMessage += "}";
  Serial.println(strSerialMessage);
  strSerialMessage += "\nOperation array: ";
  for(int ii=0;ii<4;ii++) {
    strSerialMessage += to_string(operationArray[ii]).c_str();
    strSerialMessage += "; ";
  }
  response += strSerialMessage + "\n";

  if ((operationArray[0]==0)||(operationArray[1]==0)) {response += "Wrong motor number or direction parameter!!! \n";request->send(200, "text/json", response);}
  else request->send(200, "text/json", response);
}

misc.h and misc.cpp

/*
Miscellaneous classes header for buttons, gyroscopes and program handler
*/
#ifndef MISC_H
#define MISC_H

#include <Adafruit_Sensor.h>
#include <Adafruit_MPU6050.h>
#include <ArduinoJson.h>
#include <debounce.h>
#include <vector>

using namespace std;

inline StaticJsonDocument<200> JSONboard;

const uint8_t NUMBER_OF_BUTTONS = 3;
//- - - - - - - - - - Motor stop buttons pin assignments - - - - - - - - - -
const uint8_t StopButtonPins[8] = {34, 35, 36, 39, 5, 23, 32, 33};  // ESP32 stop button pins list - input only pins
const uint8_t gyrosButtonPins[5] = {16, 17, 25, 26, 27};            // GY-521 gyroscopes AD0 address pins list

class Buttons : public Button{
private:
  uint8_t buttonNumber;
  uint8_t buttonPin;
  uint8_t motorNumber;
  uint8_t allowedDirection;  // allowed direction of motor motorNumber when end-switch is pressed - MOTOR_FORWARD/MOTOR_BACKWARD

public:
  Buttons(uint8_t buttonId, buttonHandler_t buttonHandler, uint8_t motorNum);
  uint8_t getButtonPin(void) const {return buttonPin;}
  uint8_t getButtonNumber(void) const {return buttonNumber;}
  uint8_t getMotorNumber(void) const {return motorNumber;}
  uint8_t getAllowedDirection(void) const {return allowedDirection;}
  void setAllowedDirection(uint8_t dir);
  static uint8_t buttonCount;
};

class Gyros{
  private:
    uint8_t motorNumber;
    uint8_t gyroNumber;
    float motorGyroOffset;
    float motorGyroRange;
    bool calibrated;         // dorobit
    // uint8_t channel;     // channel of gyroscope on CJMCU-9548 multiplexer
    uint8_t pinAD0;        // Arduino to GY-521 AD0 address pin
    Adafruit_MPU6050 gyro;

  public:
    Gyros(uint8_t motorNum, uint8_t channel);
    void setGyroOffset(float offset){motorGyroOffset = offset;}
    void setGyroRange(float range){motorGyroOffset = range;}
    void setAD0Pin(float pin){pinAD0 = pin;}
    void setCalibrated(bool calib){calibrated = calib;}
    float getGyroOffset(void) const {return motorGyroOffset;}
    float getGyroRange(void) const {return motorGyroRange;}
    uint8_t getGyroNumber(void) const {return gyroNumber;}
    uint8_t getMotorNumber(void) const {return motorNumber;}
    uint8_t getAD0Pin(void) const {return pinAD0;}
    bool getCalibrated(void){return calibrated;}
    void gyroBegin(void){gyro.begin();}
    sensors_vec_t getAccelReading(void);
    //float getAccelY(void);

    static uint8_t gyrosCount;
};

class ProgramSelector{
  private:
    bool motorGyro;
    bool gyroRead;
    bool iicRead;
  public:
    ProgramSelector(){
      motorGyro=false;
      gyroRead=false;
      iicRead=false;
    }
    bool getMotorGyroControl(void){return motorGyro;}
    bool getGyroRead(void){return gyroRead;}
    bool getIICRead(void){return iicRead;}
    void setMotorGyroControl(bool state){motorGyro=state;}
    void setGyroRead(bool state){gyroRead=state;}
    void setIICRead(bool state){iicRead=state;}
    void setDefault(void){
      motorGyro=false;
      gyroRead=false;
      iicRead=false;
    }
};

const int ONBOARD_LED_PIN = 2;

void selectGyro(uint8_t pin);
void pollGyros(void);
void getIICScannerReading(void);
static void pollButtons(void);
static void stopButtonHandler(uint8_t btnId, uint8_t btnState);
string trimmedstring(float val, uint8_t precisionval);

inline uint8_t Buttons::buttonCount = 0;
inline uint8_t Gyros::gyrosCount = 0;

inline vector<Buttons> buttonList;
inline vector<Gyros> gyroList;
inline ProgramSelector program;

#endif

#include "misc.h"
#include "motors.h"

Buttons::Buttons(uint8_t buttonId, buttonHandler_t buttonHandler, uint8_t motorNum): Button(buttonId, buttonHandler){
  buttonCount++;
  if (buttonCount>NUMBER_OF_BUTTONS) Serial.println("WARNING! Current button number exceeds NUMBER_OF_BUTTONS constant!!");
  else {
    motorNumber=motorNum;
    buttonNumber = buttonCount;
    buttonPin = StopButtonPins[buttonNumber-1];    //set input pin button
    allowedDirection = 0;
    pinMode( buttonPin, INPUT_PULLUP);
    Serial.print(" Initialized button number ");
    Serial.print(buttonCount);
    Serial.print(" on D1 R32 pin number ");
    Serial.println(buttonPin);
  }
}

void Buttons::setAllowedDirection(uint8_t dir){
  if ((dir==MOTOR_BACKWARD) || (dir==MOTOR_FORWARD)) allowedDirection = dir;
  else {Serial.println("Direction parameter must be MOTOR_BACKWARD or MOTOR_FORWARD, setting to 0."); allowedDirection = 0;}
}

Gyros::Gyros(uint8_t motorNum, uint8_t pin){
  gyrosCount++;
  gyroNumber=gyrosCount;
  motorNumber = motorNum;
  pinAD0 = pin;
  motorGyroOffset = 0.0;
  motorGyroRange = 0.5;
  calibrated = false;
}

sensors_vec_t Gyros::getAccelReading(void){
  sensors_event_t a, g, temp;
  gyro.getEvent(&a, &g, &temp);
  return a.acceleration;
}

/*
float Gyros::getAccelY(void){
  int16_t accelY;

  Wire.beginTransmission(0x68);
  Wire.write(0x3D);               // starting with register 0x3D (ACCEL_YOUT_H) [MPU-6000 and MPU-6050 Register Map and Descriptions Revision 4.2, p.40]
  Wire.endTransmission(false);    // the parameter indicates that the Arduino will send a restart. As a result, the connection is kept active.
  Wire.requestFrom(0x68, 2, true);  // Reading ACCEL_YOUT_H (0x3D) and ACCEL_YOUT_L (0x3E) only (2 x 8bit)

  accelY = Wire.read()<<8;
  accelY |= Wire.read();

  return ((float)accelY/16384.0*9.806);
}
*/

void selectGyro(uint8_t pin){
  for(auto& gyroIdx : gyroList) digitalWrite(gyroIdx.getAD0Pin(),HIGH);
  if (pin != 0) digitalWrite(pin,LOW);
}

void pollGyros(void) {
  sensors_vec_t acc;
  float accY;
  unsigned long actualTime = millis();
  static unsigned long pollTime = 0;
  string tmpstr;

  if (actualTime - pollTime > 2000) {
    for(auto& gyroIdx: gyroList){
      selectGyro(gyroIdx.getAD0Pin());
      acc = gyroIdx.getAccelReading();
      selectGyro(0);

      JSONboard["id"] = gyroIdx.getGyroNumber();
      JSONboard["accX"] = acc.x;
      JSONboard["accY"] = acc.y;

      pollTime = actualTime;
      String JSONstr;
      serializeJson(JSONboard, JSONstr);
      serializeJson(JSONboard, Serial);
      events.send(JSONstr.c_str(), "new_readings", millis());
      Serial.println();
    }

  }
}

void getIICScannerReading(void) {
  byte error, address;
  int nDevices;
  unsigned long actualTime = millis();
  static unsigned long pollTime = 0;

  if (actualTime - pollTime > 3000) {
      nDevices = 0;
      for (address = 1; address < 127; address++) {
        // The i2c_scanner uses the return value of
        // the Write.endTransmisstion to see if
        // a device did acknowledge to the address.
        Wire.beginTransmission(address);
        error = Wire.endTransmission();

        if (error == 0){
          Serial.print("I2C device found at address 0x");
          if (address < 16)
            Serial.print("0");
          Serial.print(address, HEX);
          Serial.println("  !");
          nDevices++;
        } else if (error == 4) {
          Serial.print("Unknown error at address 0x");
          if (address < 16)
            Serial.print("0");
          Serial.println(address, HEX);
        }
      }
      pollTime = actualTime;
      Serial.println();
  }
}

static void pollButtons(void) {
  // update() will call buttonHandler() if PIN transitions to a new state and stays there
  // for multiple reads over 25+ ms.
  for (auto& buttonIdx : buttonList) buttonIdx.update(digitalRead(buttonIdx.getButtonPin()));
}

static void stopButtonHandler(uint8_t btnId, uint8_t btnState) {
  if (btnState == BTN_PRESSED) {
    for (auto buttonIdx : buttonList)
      if (btnId == buttonIdx.getButtonNumber()) stopMotor(buttonIdx.getMotorNumber());
  } else {
    Serial.print("Button ");
    Serial.print(btnId);
    Serial.println(" released!");
  }
}

string trimmedstring(float val, uint8_t precisionval){
 return to_string(val).substr(0, to_string(val).find(".") + precisionval + 1);
}

serverFunctions.h and serverFunctions.cpp

/*
Async Web Server functions
*/

#ifndef SERVERFUNCTIONS_H
#define SERVERFUNCTIONS_H

#include <WiFi.h>
#include <AsyncElegantOTA.h>  // async Web Server OTA
#include <ESPmDNS.h>
#include <Wire.h>
#include <string>
#include "motors.h"
#include "misc.h"
#include "events.h"

void restServerRouting(void);
void initComm(void);
void getSettings(AsyncWebServerRequest *request);
void handleNotFound(AsyncWebServerRequest *request);
void setMotorGyro(AsyncWebServerRequest *request);
void setGyroRead(AsyncWebServerRequest *request);
void setIICRead(AsyncWebServerRequest *request);
void stopAll(AsyncWebServerRequest *request);
void getMotorControl(AsyncWebServerRequest *request);
void WiFiStationDisconnected(WiFiEvent_t event, WiFiEventInfo_t info);
void setChannel(void);
void selectMuxChannel(uint8_t bus);


/*IPAddress local_IP(192, 168, 1, 184);
IPAddress gateway(192, 168, 1, 1);
IPAddress subnet(255, 255, 0, 0);*/
inline const char* host = "esp32";          // for OTA updating
inline const char* ssid = "TP-Link_B73A";
inline const char* password = "hala12345";
// ----------        Address device through mDNS device_name- e.g. smartbed
inline const char* device_name = "async";

#endif

#include "motors.h"
#include "misc.h"
#include "serverFunctions.h"

// Define routing  ----     Async WebServer

void WebServerRouting(void) {

  server.on("/", HTTP_GET, [](AsyncWebServerRequest *request) {
    request->send(200, F("text/html"),
                F("Welcome to the ESP32 REST Web Server"));
  });

  server.on("/settings", HTTP_GET, getSettings);
  server.on("/gyroread", HTTP_GET, setGyroRead);
  server.on("/motorgyro", HTTP_GET, setMotorGyro);
  server.on("/i2cread", HTTP_GET, setIICRead);
  server.on("/stopall", HTTP_GET, stopAll);
  server.on("/motor", HTTP_GET, getMotorControl);
  server.on("/readings", HTTP_GET, [](AsyncWebServerRequest *request){
    request->send_P(200, "text/html", readings_html);
  });
  //server.on(F("/mux"), HTTP_GET, setChannel);
}


void getSettings(AsyncWebServerRequest *request) {
  String response = "{";

  response += "\"ip\": \"" + WiFi.localIP().toString() + "\"";
  response += ",\"gw\": \"" + WiFi.gatewayIP().toString() + "\"";
  response += ",\"nm\": \"" + WiFi.subnetMask().toString() + "\"";

  if (request->arg("signalStrength") == "true") {
    response += ",\"signalStrengh\": \"" + String(WiFi.RSSI()) + "\"";
  }

  if (request->arg("chipInfo") == "true") {
    response += ",\"chipId\": \"" + String(ESP.getChipModel()) + "\"";
    response += ",\"flashChipId\": \"" + String(ESP.getFlashChipMode()) + "\"";
    response += ",\"flashChipSize\": \"" + String(ESP.getFlashChipSize()) + "\"";
    response += ",\"flashChipRealSize\": \"" + String(ESP.getFlashChipSize()) + "\"";
  }
  if (request->arg("freeHeap") == "true") {
    response += ",\"freeHeap\": \"" + String(ESP.getFreeHeap()) + "\"";
  }
  response += "}";

  request->send(200, "text/json", response);
}



// Manage not found URL

void handleNotFound(AsyncWebServerRequest *request) {
  String message = "File Not Found\n\n";
  message += "URI: ";
  message += request->url();
  message += "\nMethod: ";
  message += (request->method() == HTTP_GET) ? "GET" : "POST";
  message += "\nArguments: ";
  message += request->args();
  message += "\n";
  for (uint8_t i = 0; i < request->args(); i++) {
    message += " " + request->argName(i) + ": " + request->arg(i) + "\n";
  }
  request->send(404, "text/plain", message);
}

/*
void reconnectWifi(void) {
  static long pollTime = 0;
  static bool reconnecting = false;

  long actualTime = millis();
  if (actualTime - pollTime > 1000) {
    if ((WiFi.status() != WL_CONNECTED)){
      WiFi.disconnect();
      WiFi.begin(ssid, password);
    }
    pollTime = actualTime;
  }
}
*/

void initComm(void) {
  Serial.begin(9600);
  WiFi.mode(WIFI_STA);
  WiFi.onEvent(WiFiStationDisconnected, WiFiEvent_t::ARDUINO_EVENT_WIFI_STA_DISCONNECTED);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.println("WiFi connected.");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());

  if (MDNS.begin(device_name)) {
    Serial.println("MDNS responder started");
  }

  AsyncElegantOTA.begin(&server);    // Start ElegantOTA
  WebServerRouting();
  server.addHandler(&events);
  server.onNotFound(handleNotFound);
  // Start server
  Serial.println("MAC address: ");
  Serial.println(WiFi.macAddress());
  server.begin();
  Serial.println("HTTP server started");
}


void setMotorGyro(AsyncWebServerRequest *request) {
  if (request->arg("state") == "true") {
    program.setMotorGyroControl(true);
    Serial.println("Motor control by gyroscopes is on");
    request->send(200, "text/json", "Motor control by gyroscopes is on");
  }
  if (request->arg("state") == "false") {
    program.setMotorGyroControl(false);
    Serial.println("Motor control by gyroscopes is off");
    request->send(200, "text/json", "Motor control by gyroscopes is off");
  }
}


void setGyroRead(AsyncWebServerRequest *request) {
  if (request->arg("state") == "true") {
    program.setGyroRead(true);
    Serial.println("Gyroscopes reading on");
    request->send(200, "text/json", "Gyroscopes reading on");
  }
  if (request->arg("state") == "false") {
    program.setGyroRead(false);
    Serial.println("Gyroscopes reading off");
    request->send(200, "text/json", "Gyroscopes reading off");
  }
}


void setIICRead(AsyncWebServerRequest *request) {
  if (request->arg("state") == "true") {
    program.setIICRead(true);
    Serial.println("I2C scanner reading on");
    request->send(200, "text/json", "I2C scanner reading on");
  }
  if (request->arg("state") == "false") {
    program.setIICRead(false);
    Serial.println("I2C scanner reading off");
    request->send(200, "text/json", "I2C scanner reading off");
  }
}

void stopAll(AsyncWebServerRequest *request) {
  for (auto& motorIdx : motorList) {
    motorIdx.setMotorDirection(MOTOR_STOP);
    motorIdx.runMotor();
    motorIdx.setMotorState(false);
    motorIdx.setMotorStopTime(0);
  }
  program.setMotorGyroControl(false);  // turn off automatic motor control through gyroscope, manual control ON
  Serial.println("Everything stopped, program step set to 0");
  request->send(200, "text/json", "Everything stopped, all motors' stop time set to 0, ProgramSelector: motorGyroControl set to false;");
}


void getMotorControl(AsyncWebServerRequest *request) {
  int operationArray[4] = { 0, 0, 0, 0 };  // operation array: operationArray[0] - motor number; [1] - direction; [2] - speed; [3] - time

  fetchServerMotorCommand(operationArray, request);

  if (operationArray[MOTOR_NUMBER] > 0)
    for (auto& motorIdx : motorList)
      if (motorIdx.getMotorNumber() == operationArray[MOTOR_NUMBER]) {
        motorIdx.setMotorDirection(operationArray[MOTOR_DIRECTION]);
        motorIdx.setMotorSpeed(operationArray[MOTOR_SPEED]);
        motorIdx.setMotorStopTime(operationArray[MOTOR_TIME]);
        motorIdx.runMotor();
      }
}

void WiFiStationDisconnected(WiFiEvent_t event, WiFiEventInfo_t info){
  Serial.println("Disconnected from WiFi access point");
  Serial.print("WiFi lost connection. Reason: ");
  Serial.println(info.wifi_sta_disconnected.reason);
  Serial.println("Trying to Reconnect");
  WiFi.begin(ssid, password);
}


/*
void setChannel(AsyncWebServerRequest *request) {
  String strChannelNum = request->arg("chan");
  String message = "Mux Channel set to: ";
  selectMuxChannel(strChannelNum.toInt());
  Serial.print("Mux Channel set to: ");
  Serial.println(strChannelNum);
  message += strChannelNum;
  request->send(200, "text/json", message);
}

void selectMuxChannel(uint8_t bus) {
  Wire.beginTransmission(0x70);  // TCA9548A address is 0x70
  Wire.write(1 << bus);          // send byte to select bus
  Wire.endTransmission();
}
*/

There is also events.h file, but it only contains HTML with gyro readings that is sent to PC

10

Hi,

Something like this?

image800×580 101 KB

Tom... :grinning: :+1: :coffee: :australia:

11

Hi,

This will be due to possibly the gnd or supply to the sensor being broken, to re-establish communications you will have reset the controller to reset and establish comms with the sensors again.

Can you please post some images of your project?
So we can see your component layout.

Tom... :grinning: :+1: :coffee: :australia:

12

This topic was automatically closed 180 days after the last reply. New replies are no longer allowed.
