Hello. Here is my attempt to create single-sided Arduino-Leonardo clone, with possibility of DIY-photoresist production. Designed in KiCAD. Dual LDOs (3.3V and 5V), additional connectors for RS232, I2C, SPI/ISP.
Project repository: https://bitbucket.org/edartuz/ul_arduino_leonardo
used 16 jumper wires:
C'mon, you can do better
Where did you get a schematic to copy, I thought they weren't released yet.
Rob
Where did you get a schematic to copy, I thought they weren't released yet
most info here:
http://arduino.cc/forum/index.php/topic,78781.180.html
I don't think its far from official design, so final changes will be small
OK, no wonder I didn't see it, my Spanish is a little weak so I tend to skip that forum
Rob
tormentor:
Almost done, used 16 jumper wires:
ISP header for bootloader?
yes
I think you should move your traces further apart. In most cases (ie the traces going to the digital IO pins), you have plenty of room...
The 2nd link has built in google translate (click the UK flag)
Hi chaps,
since you've been following the Spanish thread I thought I would share with you the last events. The boards have arrived and are going to be beta tested by the vinciDuino team.
The boards look great. Currently waiting for components to arrive.
You can find all the information about the board: https://bitbucket.org/fmalpartida/vinciduino/wiki/Home
Released under CC SA-BY.
I will keep you posted.
Looks nice.
please use thermal pads on the ground plane
??frank ?? Looks like its covered with ground plane on both sides.
Maybe could have used some more around the regulator, IC2.
CrossRoads:
??frank ?? Looks like its covered with ground plane on both sides.Maybe could have used some more around the regulator, IC2.
Thanks CrossRoads.
Not getting what you think is the problem frank.
The vinciDuino board is up and running beautifully:

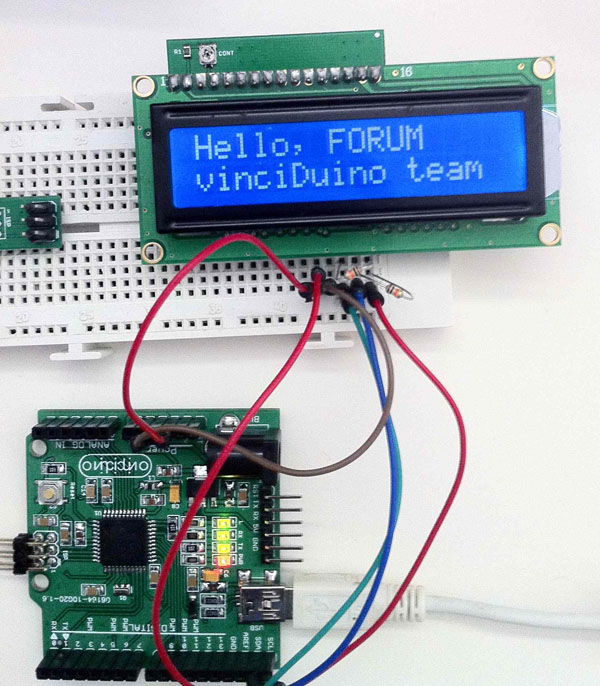

Little picture from the vinciDuino board saying its first hello world!
CrossRoads:
Not getting what you think is the problem frank.
The ATMega32U4 has a thermal pad on its underside.
Oddly the datasheet makes no reference to it whatsoever except for the footprint drawing which shows that it is present.
See sections 7.2 & 7.1.
The exposed pad only applies to the QFN44 (quad flat no-lead package) and not the TQFP44 (thin profile plastic quad flat package) as used on the previous post.
