hello
i have a code that is from instrucables:
https://www.instructables.com/LED-Mega-Clock/
please download and see the codes in this site(LED_Mega_Clock.ino)
the code is beloow:
/*
LED-CLOCK V1.0
Arduino Mega 2560
K. Michalsky
28.10.14
*/
#include "Tlc5940.h"
#include <Time.h>
#include "Wire.h"
#define DS1307_ADDRESS 0x68
int dataPin = 2; // The Serial Data Pin to the Shift Register
int latchPin = 3; // The Latch Pin to the Shift Register
int clockPin = 4 ; // The Clock Pin to the Shift Register
// RGB LED Strip Pins
int blueStrip = 5;
int redStrip = 6;
int greenStrip = 7;
int interval = 1; // Variable for delay
int const cycle = 9; // constante for cycles (LED-Strip)
int lum = 500; // birghtness for digit display
int CA[] = {38,39,40,41}; // Anodes for digit display
// Definition of registers arrays for blue LEDs
int register1[] = {0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 1,2,4,8,16,32,64,128};
int register2[] = {0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 1,2,4,8,16,32,64,128, 0,0,0,0,0,0,0,0};
int register3[] = {0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 1,2,4,8,16,32,64,128, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0};
int register4[] = {0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 1,2,4,8,16,32,64,128, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0};
int register5[] = {0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 1,2,4,56,16,32,64,128, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0};
int register6[] = {0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 1,2,4,8,16,32,64,128, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0};
int register7[] = {0,0,0,0,0,0,0,0, 1,2,4,56,16,32,64,128, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0};
int register8[] = {1,2,4,8,16,32,64,128, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0, 0,0,0,0,0,0,0,0};
// Array for for blue LEDs cathodes
int pin[] = {22,23,24,25,26,27,28,29};
// Definition of pins as output and Tlc setup
void setup()
{
Wire.begin();
Serial.begin(9600);
pinMode(dataPin, OUTPUT);
pinMode(latchPin, OUTPUT);
pinMode(clockPin, OUTPUT);
for (int i=0; i < 8; i++){
pinMode(pin[i], OUTPUT);
}
Tlc.init();
for(int n=0; n < 4; n++){
pinMode(CA[n], OUTPUT);
}
}
void loop(){
program_1();
}
program1 is:
// Set blue LEDs on for second, minute, and hour indicator
void blueLedClock(){
int second = bcdToDec(Wire.read());
int minute = bcdToDec(Wire.read());
int hour = bcdToDec(Wire.read());
// second indicator of blue LEDs
shift(second);
for(int i=0; i< 7; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
for(int i=0; i< 7; i++){
digitalWrite(pin[i], LOW);
}
delay(interval);
// minute indicator of blue LEDs
shift(minute);
delay(interval);
for(int i=0; i< 8; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
// hour indicator of blue LEDs
if(hour < 12){
if(minute < 12){
shift(hour*5);
for(int i=2; i< 8; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
for(int i=0; i< 8; i++){
digitalWrite(pin[i], LOW);
}
}else
if(minute >= 12 && minute < 24){
shift(hour*5+1);
for(int i=2; i< 8; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
for(int i=0; i< 8; i++){
digitalWrite(pin[i], LOW);
}
}else
if(minute >= 24 && minute < 36){
shift(hour*5+2);
for(int i=2; i< 8; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
for(int i=0; i< 8; i++){
digitalWrite(pin[i], LOW);
}
}else
if(minute >= 36 && minute < 48){
shift(hour*5+3);
for(int i=2; i< 8; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
for(int i=0; i< 8; i++){
digitalWrite(pin[i], LOW);
}
}else
if(minute >= 48){
shift(hour*5+4);
for(int i=2; i< 8; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
for(int i=0; i< 8; i++){
digitalWrite(pin[i], LOW);
}
}
}else
for(int i=12; i < 24; i++){
if(hour == i){
if(minute < 12){
shift((i-12)*5);
for(int i=2; i< 8; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
for(int i=0; i< 8; i++){
digitalWrite(pin[i], LOW);
}
}else
if(minute >= 12 && minute < 24){
shift((i-12)*5+1);
for(int i=2; i< 8; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
for(int i=0; i< 8; i++){
digitalWrite(pin[i], LOW);
}
}else
if(minute >= 24 && minute < 36){
shift((i-12)*5+2);
for(int i=2; i< 8; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
for(int i=0; i< 8; i++){
digitalWrite(pin[i], LOW);
}
}else
if(minute >= 36 && minute < 48){
shift((i-12)*5+3);
for(int i=2; i< 8; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
for(int i=0; i< 8; i++){
digitalWrite(pin[i], LOW);
}
}else
if(minute >= 48){
shift((i-12)*5+4);
for(int i=2; i< 8; i++){
digitalWrite(pin[i], HIGH);
}
delay(interval);
for(int i=0; i< 8; i++){
digitalWrite(pin[i], LOW);
}
}
}
}
}
// Shift Data
void shift(int var){
digitalWrite(latchPin, LOW);
digitalWrite(29, HIGH);
digitalWrite(28, HIGH);
shiftOut(dataPin, clockPin, MSBFIRST, register1[var]);
shiftOut(dataPin, clockPin, MSBFIRST, register2[var]);
shiftOut(dataPin, clockPin, MSBFIRST, register3[var]);
shiftOut(dataPin, clockPin, MSBFIRST, register4[var]);
shiftOut(dataPin, clockPin, MSBFIRST, register5[var]);
shiftOut(dataPin, clockPin, MSBFIRST, register6[var]);
shiftOut(dataPin, clockPin, MSBFIRST, register7[var]);
shiftOut(dataPin, clockPin, MSBFIRST, register8[var]);
digitalWrite(latchPin, HIGH);
}

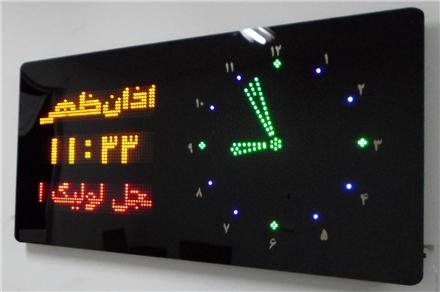

the code is for build an analog led clock with arduino and rtc and shift register. the clock has three simple indicators(second, minutes, hour). but i would like change the indicators hands with special graphic shapes. like below images:
I think I need to change the array values but I can't
can any one help me for have three various indicators?
