Hi,
I can't decode IR signals from a certain remote.
I am trying to decode signals from my ceiling fan's remote. But when I try to decode signals I am not getting any hexadecimal codes from the remote. The code that I am using is certainly working because when I used my speaker's remote, it showed the hexadecimal codes. And, I am sure that the fan's remote is working because my fan is responding to the remote.

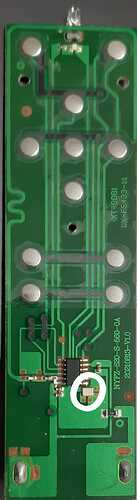

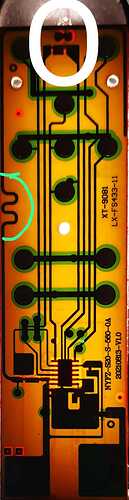

An interesting thing that I noted was that the pins of IR emitter on the fan's remote is shorted. Please help.
