Controlling a Pioneer tape deck with an Arduino

Hello everyone!

This is a small audio-related project I wanted to show off, and that is controlling a tape deck with an Arduino from a Mac.
First, here is a demo video :3

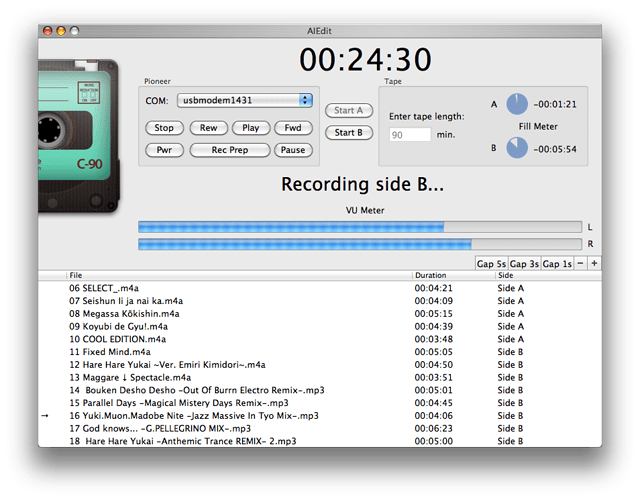

This is how the controlling app looks like:

However most of the work is done on the Arduino itself. This is the code:

void sendByte(char data) {

  /* A zero is represented by 0,7ms lo, followed by 0.35ms hi, a one is represented by 0,7ms lo, followed by 1,4ms hi */

  for (byte mask = 00000001; mask>0; mask <<= 1) { //iterate through bit mask
    up();
    if (data & mask){ // if bitwise AND resolves to true
      delayMicroseconds(1400);
    }
    else{ //if bitwise and resolves to false
       delayMicroseconds(350);
    }
    down();
    delayMicroseconds(700);
  }

   for (byte mask = 00000001; mask>0; mask <<= 1) { //iterate through bit mask

    up();
    if (data & mask){ // if bitwise AND resolves to true
      delayMicroseconds(350);
    }
    else{ //if bitwise and resolves to false
       delayMicroseconds(1400);
    }
   down();
    delayMicroseconds(700);
  }
}

/* Commands: Number buttons are like 0x00..0x09, so I cant be botherd to type them here */

char devid_laserdisk = 0xA8;
char devid_tuner     = 0xA4;
char devid_cd        = 0xA2;
char devid_tape      = 0xA1;
char devid_amp       = 0xA5;
char devid_vcr       = 0xAB;

char command_levelup = 0x0A;
char command_leveldn = 0x0B;
char command_muting  = 0x12;
char command_power   = 0x1C;

char command_forward = 0x10;
char command_rewind  = 0x11;
char command_stop    = 0x16;
char command_pause   = 0x18;
char command_play    = 0x17;
char command_record  = 0x14;

char command_eject   = 0x51;
char command_program = 0x0D;


void down() {  digitalWrite(  7, LOW ); }
void up() { digitalWrite(  7, HIGH );  }

void pioneer_init() {
  down();
  delayMicroseconds(9000);
  up();
  delayMicroseconds(5000);
  down();
    delayMicroseconds(700);
}


void setup()
{
  pinMode(  7, OUTPUT );
   Serial.begin(38400);
}

  byte incomingByte = 0;
void serialEvent() {
   if(Serial.available()) {
                incomingByte = Serial.read();

                if(incomingByte == 'P') {
                  pioneer_init();
                  sendByte(devid_tape);
                  sendByte(command_play);
                  incomingByte = 0;
                }
                if(incomingByte == 'R') {
                   pioneer_init();
                  sendByte(devid_tape);
                  sendByte(command_record);
                  incomingByte = 0;
                }
                if(incomingByte == 'S') {
                   pioneer_init();
                  sendByte(devid_tape);
                  sendByte(command_stop);
                  incomingByte = 0;
                }
                if(incomingByte == 'H') {
                   pioneer_init();
                  sendByte(devid_tape);
                  sendByte(command_pause);
                  incomingByte = 0;
                }
                if(incomingByte == 'F') {
                   pioneer_init();
                  sendByte(devid_tape);
                  sendByte(command_forward);
                  incomingByte = 0;
                }
                if(incomingByte == 'B') {
                   pioneer_init();
                  sendByte(devid_tape);
                  sendByte(command_rewind);
                  incomingByte = 0;
                }
                if(incomingByte == 'O') {
                   pioneer_init();
                  sendByte(devid_tape);
                  sendByte(command_power);
                  incomingByte = 0;
                }
              if(incomingByte != 0) {   Serial.print(incomingByte);
                Serial.print("?");
                incomingByte = 0;
              }
           }
}


void loop(){}

The whole thing is also integrated with AIEdit, the tape recorder app:

For more info, see the github project: GitHub - vladkorotnev/TapeStuff: Integrating cassettes for the sake of music

However, it still has a problem — I have to send all the commands twice (for example, to make it play, I need to send “PP” to arduino instead of just “P”, and such). Not sure what did I do wrong so if anyone has a suggestion, that would be much appreciated!

Thanks for reading! ???

Screen Shot 2014-04-18 at 14.01.02 .png

This is really cool :slight_smile:

I did this (kind of) with linux and a command line interface. But I do want to know how you pressed the buttons on the deck - mine was a bit overkill, it used motors to press the buttons.

akasaka:
However, it still has a problem — I have to send all the commands twice (for example, to make it play, I need to send "PP" to arduino instead of just "P", and such). Not sure what did I do wrong so if anyone has a suggestion, that would be much appreciated!

Inaccuracy from using delayMicroseconds instead of micros() in sendByte().

Does it work without having to duplicate bytes if you move the code into
loop() from serialEvent() ?
