Creating a fuel gauge using 16x NeoPixels

papagino · January 31, 2024, 5:37pm

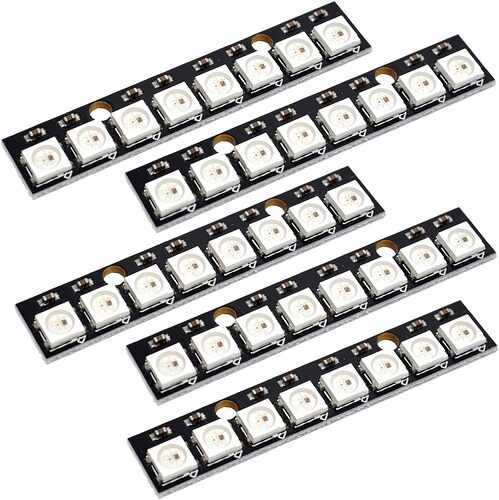

Hello people, I want to create a fuel gauge for my tractor using 2 x 8 Channel fully addressable WS2812B LED Strip

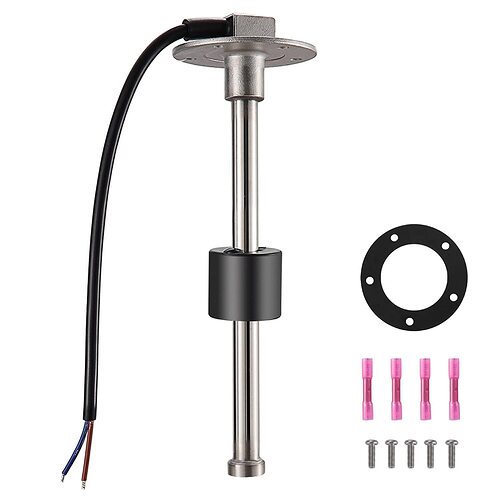

and a Fuel Sender Unit (basically a 190 ohms Variable Resistor)

I would like the NeoPixel LEDs to work in this sequence according to fuel level in the tank:
LED Sequence

I have found this code on the web for a similar project:

//picmicrolab.com
//https://www.picmicrolab.com/rgb-led-bar-graph/

//Improved RGB LED Bar Graph for Arduino platform based on // WS2812 chip - Data In
//with 16 active segments
// strip.Color(0, 0, 0)); = Green
// strip.Color(255, 255, 0)); = Orange
// strip.Color(255, 0, 0)); = Red


#include <Adafruit_NeoPixel.h>

#define PIN A0 // // WS2812 chip - Data In
#define Pixel_Number 16
Adafruit_NeoPixel strip = Adafruit_NeoPixel(Pixel_Number, PIN, NEO_GRB + NEO_KHZ800);

void setup()
{
  pinMode(A1, INPUT);
  strip.begin();

}

void loop()
{

 int analog_input = ( analogRead(A1) * 4.9 );
 delay(100);
if(analog_input  < 300 )
{
 strip.setPixelColor(0, strip.Color(0, 127, 0));
 for(int i=1;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));
 strip.show();
}
else if(analog_input  > 300 && analog_input  < 600 )
{
 strip.setPixelColor(0, strip.Color(0, 127, 0));
 strip.setPixelColor(1, strip.Color(0, 127, 0));
  for(int i=2;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));
 strip.show();
}
else if(analog_input  > 600 && analog_input  < 900 )
{
 for(int i=0;i<2;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));
 for(int i=3;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));
 strip.show();
}
else if(analog_input  > 900 && analog_input  < 1200 )
{
  for(int i=0;i<3;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));
 for(int i=4;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));
 strip.show();
}
else if(analog_input  > 1200 && analog_input  < 1500 )
{
  for(int i=0;i<4;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));
 for(int i=5;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));

 strip.show();
}
else if(analog_input  > 1500 && analog_input  < 1800 )
{
  for(int i=0;i<5;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));
 for(int i=6;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));

 strip.show();
}
else if(analog_input  > 1800 && analog_input  < 2100 )
{
  for(int i=0;i<6;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));
 for(int i=7;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));

 strip.show();
}
else if(analog_input  > 2100 && analog_input  < 2400 )
{
  for(int i=0;i<7;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));
 for(int i=8;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));

 strip.show();
}
else if(analog_input  > 2400 && analog_input  < 2700 )
{
  for(int i=0;i<8;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));
 for(int i=9;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));

 strip.show();
}
else if(analog_input  > 2700 && analog_input  < 3000 )
{
  for(int i=0;i<9;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));
 for(int i=10;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));

 strip.show();
}
else if(analog_input  > 3000 && analog_input  < 3300 )
{
  for(int i=0;i<10;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));
 for(int i=11;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));

 strip.show();
}
else if(analog_input  > 3300 && analog_input  < 3600 )
{
  for(int i=0;i<11;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));

 for(int i=12;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));
  strip.setPixelColor(10, strip.Color(255, 255, 0));
 strip.show();
}
else if(analog_input  > 3600 && analog_input  < 3900 )
{
  for(int i=0;i<12;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));

 for(int i=13;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));
  strip.setPixelColor(10, strip.Color(255, 255, 0));
  strip.setPixelColor(11, strip.Color(255, 255, 0));
 strip.show();
}
else if(analog_input  > 3900 && analog_input  < 4200 )
{
  for(int i=0;i<13;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));

 for(int i=14;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));
  strip.setPixelColor(10, strip.Color(255, 255, 0));
  strip.setPixelColor(11, strip.Color(255, 255, 0));
  strip.setPixelColor(12, strip.Color(255, 255, 0));
 strip.show();
}
else if(analog_input  > 4200 && analog_input  < 4500 )
{
  for(int i=0;i<14;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));

 for(int i=15;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));
  strip.setPixelColor(10, strip.Color(255, 255, 0));
  strip.setPixelColor(11, strip.Color(255, 255, 0));
  strip.setPixelColor(12, strip.Color(255, 255, 0));
  strip.setPixelColor(13, strip.Color(255, 0, 0));
 strip.show();
}
else if(analog_input  > 4500 && analog_input  < 4800 )
{
  for(int i=0;i<15;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));

 for(int i=16;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));
  strip.setPixelColor(10, strip.Color(255, 255, 0));
  strip.setPixelColor(11, strip.Color(255, 255, 0));
  strip.setPixelColor(12, strip.Color(255, 255, 0));
  strip.setPixelColor(13, strip.Color(255, 0, 0));
  strip.setPixelColor(14, strip.Color(255, 0, 0));
 strip.show();
}
else if(analog_input  > 4800 )
{
  for(int i=0;i<16;i++)
    strip.setPixelColor(i, strip.Color(0, 127, 0));

 for(int i=16;i<Pixel_Number;i++)
    strip.setPixelColor(i, strip.Color(0, 0, 0));
  strip.setPixelColor(10, strip.Color(255, 255, 0));
  strip.setPixelColor(11, strip.Color(255, 255, 0));
  strip.setPixelColor(12, strip.Color(255, 255, 0));
  strip.setPixelColor(13, strip.Color(255, 0, 0));
  strip.setPixelColor(14, strip.Color(255, 0, 0));
  strip.setPixelColor(15, strip.Color(255, 0, 0));
 strip.show();
}
}

and have a created a wokwi project here : https://wokwi.com/projects/388458958731988993

This code is not doing exactly what I need, can anyone help me modify the code to achieve the LED sequence for the fuel gauge as on the picture above?

I am new to arduino.

Thanks

gilshultz · January 31, 2024, 5:58pm

Interesting project, what type of tractor are we talking about. The electrical system can be very dirty and damage your Arduino. Here is some information that will help. If it is a toy forget the following.
There is a good app note AN2689 by ST on automotive electronics. reading it will help you a lot.
https://www.st.com/resource/en/application_note/cd00181783-protection-of-automotive-electronics-from-electrical-hazards-guidelines-for-design-and-component-selection-stmicroelectronics.pdf
Also take a look at this: Distilled Automotive Electronics Design | Analog Devices and then there is this one.
Transient Voltage Suppression in Automotive Applications

papagino · January 31, 2024, 6:07pm

It's a John Deere 322 garden tractor that I use especially for snow removal.
I already use an aduino uno to control an intermittent wiper motor and have no issues.
I think I used a small DC to DC Buck converter to reduce the voltage to maybe 8 volts then use the VCC pin on the arduino.

The tractor is this one:

The fuel tank is plastic, therefor insulated from the tractor body ground.

Cheers

dougp · January 31, 2024, 6:55pm

A collection of wokwi neopixel demos. Maybe there's something you can use as a starting point.

xfpd · January 31, 2024, 7:32pm

What wokwi search magic is this? I've tried the "+" (must include) and "-" (remove from search) and site:wokwi.com... and nothing for me... wow!kwi

Rintin · January 31, 2024, 8:07pm

This code sets the LED to the right color:


#include <Adafruit_NeoPixel.h>

#define PIN A0 // // WS2812 chip - Data In
#define Pixel_Number 16
Adafruit_NeoPixel strip = Adafruit_NeoPixel(Pixel_Number, PIN, NEO_GRB + NEO_KHZ800);

void updateStrip(int ledsToLight, uint32_t colorOn, uint32_t colorOff){
  for(int x = 0; x < Pixel_Number; x++){
    if(x < ledsToLight) {
      strip.setPixelColor(x, colorOn);
    } else {
      strip.setPixelColor(x, colorOff);
    }
  }
  strip.show();
}

struct Level {
  int ledsToLight;
  uint32_t color;
};

#define max_colors 3
Level colors[max_colors] = {
  {3, strip.Color(255,0,0)},
  {5, strip.Color(255,128,0)},
  {16, strip.Color(0,255,0)},
};

uint32_t getColor(int ledsToLight){
  uint32_t ret = strip.Color(0,0,255);
  for(int x = 0; x < max_colors; x++){
    if (ledsToLight <= colors[x].ledsToLight){
      ret = colors[x].color;
      break;
    }
  }
  return ret;
}

void setup()
{
  pinMode(A1, INPUT);
  strip.begin();

}

void loop()
{
 auto colorOff = strip.Color(0,0,0);

 for(int x = 0; x <= Pixel_Number; x++){
  auto colorOn = getColor(x);
  updateStrip(x, colorOn, colorOff);
  delay(1000);
 }

}

Next steps would be to add analogRead() and calculate the number of LEDs that need to light up.

papagino · January 31, 2024, 8:34pm

Thanks, how would I incorporated the following analogRead() "if" and "else if" conditions to your codes?

int analog_input = ( analogRead(A1) * 4.9 );
 delay(100);
if(analog_input  < 300 )

else if(analog_input  > 300 && analog_input  < 600 )
else if(analog_input  > 600 && analog_input  < 900 )
else if(analog_input  > 900 && analog_input  < 1200 )
else if(analog_input  > 1200 && analog_input  < 1500 )
else if(analog_input  > 1500 && analog_input  < 1800 )
else if(analog_input  > 1800 && analog_input  < 2100 )
else if(analog_input  > 2100 && analog_input  < 2400 )
else if(analog_input  > 2400 && analog_input  < 2700 )
else if(analog_input  > 2700 && analog_input  < 3000 )
else if(analog_input  > 3000 && analog_input  < 3300 )
else if(analog_input  > 3300 && analog_input  < 3600 )
else if(analog_input  > 3600 && analog_input  < 3900 )
else if(analog_input  > 3900 && analog_input  < 4200 )
else if(analog_input  > 4200 && analog_input  < 4500 )
else if(analog_input  > 4500 && analog_input  < 4800 )
else if(analog_input  > 4800 )

Almost there...

Rintin · January 31, 2024, 8:42pm

Please try to replace the loop():


void loop()
{
  int ledsToLight = 0;

int analog_input = ( analogRead(A1) * 4.9 );
 delay(100);
if(analog_input  < 300 ) {ledsToLight = 0;}
else if(analog_input  > 300 && analog_input  < 600 ) {ledsToLight = 1;}
else if(analog_input  > 600 && analog_input  < 900 ) {ledsToLight = 2;}
else if(analog_input  > 900 && analog_input  < 1200 ) {ledsToLight = 3;}
else if(analog_input  > 1200 && analog_input  < 1500 ) {ledsToLight = 4;}
else if(analog_input  > 1500 && analog_input  < 1800 ) {ledsToLight = 5;}
else if(analog_input  > 1800 && analog_input  < 2100 ) {ledsToLight = 6;}
else if(analog_input  > 2100 && analog_input  < 2400 ) {ledsToLight = 7;}
else if(analog_input  > 2400 && analog_input  < 2700 ) {ledsToLight = 8;}
else if(analog_input  > 2700 && analog_input  < 3000 ) {ledsToLight = 9;}
else if(analog_input  > 3000 && analog_input  < 3300 ) {ledsToLight = 10;}
else if(analog_input  > 3300 && analog_input  < 3600 ) {ledsToLight = 11;}
else if(analog_input  > 3600 && analog_input  < 3900 ) {ledsToLight = 12;}
else if(analog_input  > 3900 && analog_input  < 4200 ) {ledsToLight = 13;}
else if(analog_input  > 4200 && analog_input  < 4500 ) {ledsToLight = 14;}
else if(analog_input  > 4500 && analog_input  < 4800 ) {ledsToLight = 15;}
else if(analog_input  > 4800 )  {ledsToLight = 16;}


 auto colorOff = strip.Color(0,0,0);
 auto colorOn = getColor(ledsToLight);
  updateStrip(ledsToLight, colorOn, colorOff);

}

papagino · January 31, 2024, 8:53pm

Thanks
This seems to work just fine...

papagino · January 31, 2024, 9:09pm

Ok how could I change this line:
if(analog_input < 300 ) {ledsToLight = 0;}
so it would flash all LEDs in Red, instead of no LEDs illuminated at all?

Thanks a lot for your help...

Rintin · January 31, 2024, 9:25pm

I still need to know that there are 0 ledsToLight. Therefore I would not change the calculation of it.

When I know its 0, I would not call updateStrip() anymore but rather doFlash()

Change

 auto colorOff = strip.Color(0,0,0);
 auto colorOn = getColor(ledsToLight);
  updateStrip(ledsToLight, colorOn, colorOff);

to

if (ledsToLight == 0) {
  doFlash();
} else {
 auto colorOff = strip.Color(0,0,0);
 auto colorOn = getColor(ledsToLight);
  updateStrip(ledsToLight, colorOn, colorOff);
}

doFlash() could be something like this:

void doFlash(){
  auto color = strip.Color(0,0,0);

  if((millis() / 540) & 1 != 0){
    color = strip.Color(255,0,0);
  }

  for (int x = 0; x < Pixel_Number; x++){
    strip.setPixelColor(x, color);
  }
  strip.show();
}

xfpd · January 31, 2024, 9:59pm

For wokwi.com...

sketch

#include <FastLED.h>

#define MAXPIX 16 // fuel gauge
#define PIXPIN 3 // data pin
#define MAXBRIGHT 255 // pixel brightness, 0 - 255
#define SENSOR A0 // intput range 0vdc to 5vdc
CRGB gauge[MAXPIX]; // the neopixel string
int fuelLevel; // to know the level

void setup() {
  FastLED.addLeds<WS2812B, PIXPIN, GRB>(gauge, MAXPIX);
  FastLED.setBrightness(MAXBRIGHT); // Adjust the brightness value as needed
  FastLED.clear();
  FastLED.show();
}

void loop() {
  fuelLevel = map(analogRead(SENSOR), 0, 1023, 0, MAXPIX);
  FastLED.clear();

  if (!fuelLevel) // check for empty
    blink(); // blink the fuel gauge

  for (int i = 0; i < fuelLevel; i++) {
    if (i > 0 && i <= 3) // low
      gauge[i] = CRGB (255, 0, 0);
    if (i > 3 && i <= 6) // medium
      gauge[i] = CRGB (255, 255, 0);
    if (i > 6) // high
      gauge[i] = CRGB (0, 255, 0);
  }
  gauge[0] = CRGB(255, 0, 0); // "0" fuelLevel
  FastLED.show();
}

void blink() {
  FastLED.clear(); // remove old pixels
  FastLED.show(); // show buffer
  delay(100); // for flashing effect
  for (int j = 0; j < MAXPIX; j++) // use whole fuel gauge
    gauge[j] = CRGB (255, 0, 0); // color
  FastLED.show(); // show buffer
    delay(100);
}

diagram.json

{
  "version": 1,
  "author": "Anonymous maker",
  "editor": "wokwi",
  "parts": [
    {
      "type": "wokwi-arduino-nano",
      "id": "nano",
      "top": 129.8,
      "left": -25.5,
      "rotate": 180,
      "attrs": {}
    },
    {
      "type": "wokwi-potentiometer",
      "id": "pot1",
      "top": 27.5,
      "left": 38.2,
      "attrs": { "value": "512" }
    },
    {
      "type": "wokwi-neopixel-matrix",
      "id": "ring1",
      "top": -2.8,
      "left": -251.08,
      "rotate": 270,
      "attrs": { "pixleate": "1", "rows": "1", "cols": "16" }
    }
  ],
  "connections": [
    [ "nano:GND.1", "pot1:GND", "black", [ "v-19.2", "h28.8" ] ],
    [ "nano:A0", "pot1:SIG", "green", [ "v-19.2", "h-9.2" ] ],
    [ "nano:5V", "pot1:VCC", "red", [ "v-9.6", "h29.6" ] ],
    [ "ring1:DIN", "nano:3", "green", [ "h9.6", "v205.4", "h76.8" ] ],
    [ "ring1:VCC", "nano:5V", "red", [ "h19.2", "v115.2", "h38.4" ] ],
    [ "nano:GND.1", "ring1:GND", "black", [ "v0" ] ]
  ],
  "dependencies": {}
}

papagino · January 31, 2024, 10:16pm

I'm getting errors...
Where in the sketch do I put the lines starting with " void doFlash(){ " ?

dougp · January 31, 2024, 10:17pm

Plug "wokwi neopixel" into your search engine.

Rintin · January 31, 2024, 10:20pm

Arduino is handling forward declarations for you. Place doFlash() after the last closing brace.

xfpd · January 31, 2024, 10:20pm

Usually, results are formatted by the search engine. Yours was the first I saw wokwi have results... and reading the URL, they were microPython.

papagino · January 31, 2024, 10:30pm

Thanks, your coding is very clean, however, it is not doing exactly what I need, the last 5 LEDs switch from green, to orange or red depending on the fuel level. So when the gas thank is above 1/3 of the thank, all LED are green.

Cheers

papagino · January 31, 2024, 10:47pm

Not sure what I am doing wrong, getting this errors:

Build failed!

sketch.ino: In function 'void loop()':
sketch.ino:75:3: error: 'doFlash' was not declared in this scope
doFlash();
^~~~~~~
sketch.ino:82:15: error: a function-definition is not allowed here before '{' token
void doFlash(){
^
sketch.ino:92:15: error: expected '}' at end of input
strip.show();
^

Error during build: exit status 1

Here is the complete sketch:

#include <Adafruit_NeoPixel.h>

#define PIN A0 // // WS2812 chip - Data In
#define Pixel_Number 16
Adafruit_NeoPixel strip = Adafruit_NeoPixel(Pixel_Number, PIN, NEO_GRB + NEO_KHZ800);

void updateStrip(int ledsToLight, uint32_t colorOn, uint32_t colorOff){
  for(int x = 0; x < Pixel_Number; x++){
    if(x < ledsToLight) {
      strip.setPixelColor(x, colorOn);
    } else {
      strip.setPixelColor(x, colorOff);
    }
  }
  strip.show();
}

struct Level {
  int ledsToLight;
  uint32_t color;
};

#define max_colors 3
Level colors[max_colors] = {
  {3, strip.Color(255,0,0)},
  {5, strip.Color(255,128,0)},
  {16, strip.Color(0,255,0)},
};

uint32_t getColor(int ledsToLight){
  uint32_t ret = strip.Color(0,0,255);
  for(int x = 0; x < max_colors; x++){
    if (ledsToLight <= colors[x].ledsToLight){
      ret = colors[x].color;
      break;
    }
  }
  return ret;
}

void setup()
{
  pinMode(A1, INPUT);
  strip.begin();

}

void loop()
{
  int ledsToLight = 0;

int analog_input = ( analogRead(A1) * 4.9 );
 delay(100);
if(analog_input  < 300 ) {ledsToLight = 0;}
else if(analog_input  > 300 && analog_input  < 600 ) {ledsToLight = 1;}
else if(analog_input  > 600 && analog_input  < 900 ) {ledsToLight = 2;}
else if(analog_input  > 900 && analog_input  < 1200 ) {ledsToLight = 3;}
else if(analog_input  > 1200 && analog_input  < 1500 ) {ledsToLight = 4;}
else if(analog_input  > 1500 && analog_input  < 1800 ) {ledsToLight = 5;}
else if(analog_input  > 1800 && analog_input  < 2100 ) {ledsToLight = 6;}
else if(analog_input  > 2100 && analog_input  < 2400 ) {ledsToLight = 7;}
else if(analog_input  > 2400 && analog_input  < 2700 ) {ledsToLight = 8;}
else if(analog_input  > 2700 && analog_input  < 3000 ) {ledsToLight = 9;}
else if(analog_input  > 3000 && analog_input  < 3300 ) {ledsToLight = 10;}
else if(analog_input  > 3300 && analog_input  < 3600 ) {ledsToLight = 11;}
else if(analog_input  > 3600 && analog_input  < 3900 ) {ledsToLight = 12;}
else if(analog_input  > 3900 && analog_input  < 4200 ) {ledsToLight = 13;}
else if(analog_input  > 4200 && analog_input  < 4500 ) {ledsToLight = 14;}
else if(analog_input  > 4500 && analog_input  < 4800 ) {ledsToLight = 15;}
else if(analog_input  > 4800 )  {ledsToLight = 16;}



 if (ledsToLight == 0) {
  doFlash();
} else {
 auto colorOff = strip.Color(0,0,0);
 auto colorOn = getColor(ledsToLight);
  updateStrip(ledsToLight, colorOn, colorOff);
}

void doFlash(){
  auto color = strip.Color(0,0,0);

  if((millis() / 540) & 1 != 0){
    color = strip.Color(255,0,0);
  }

  for (int x = 0; x < Pixel_Number; x++){
    strip.setPixelColor(x, color);
  }
  strip.show();

Rintin · January 31, 2024, 10:49pm

It should look like this:


#include <Adafruit_NeoPixel.h>

#define PIN A0 // // WS2812 chip - Data In
#define Pixel_Number 16
Adafruit_NeoPixel strip = Adafruit_NeoPixel(Pixel_Number, PIN, NEO_GRB + NEO_KHZ800);

void updateStrip(int ledsToLight, uint32_t colorOn, uint32_t colorOff){
  for(int x = 0; x < Pixel_Number; x++){
    if(x < ledsToLight) {
      strip.setPixelColor(x, colorOn);
    } else {
      strip.setPixelColor(x, colorOff);
    }
  }
  strip.show();
}

struct Level {
  int ledsToLight;
  uint32_t color;
};

#define max_colors 3
Level colors[max_colors] = {
  {3, strip.Color(255,0,0)},
  {5, strip.Color(255,128,0)},
  {16, strip.Color(0,255,0)},
};

uint32_t getColor(int ledsToLight){
  uint32_t ret = strip.Color(0,0,255);
  for(int x = 0; x < max_colors; x++){
    if (ledsToLight <= colors[x].ledsToLight){
      ret = colors[x].color;
      break;
    }
  }
  return ret;
}

void setup()
{
  pinMode(A1, INPUT);
  strip.begin();

}

void loop()
{
  int ledsToLight = 0;

int analog_input = ( analogRead(A1) * 4.9 );
 delay(100);
if(analog_input  < 300 ) {ledsToLight = 0;}
else if(analog_input  > 300 && analog_input  < 600 ) {ledsToLight = 1;}
else if(analog_input  > 600 && analog_input  < 900 ) {ledsToLight = 2;}
else if(analog_input  > 900 && analog_input  < 1200 ) {ledsToLight = 3;}
else if(analog_input  > 1200 && analog_input  < 1500 ) {ledsToLight = 4;}
else if(analog_input  > 1500 && analog_input  < 1800 ) {ledsToLight = 5;}
else if(analog_input  > 1800 && analog_input  < 2100 ) {ledsToLight = 6;}
else if(analog_input  > 2100 && analog_input  < 2400 ) {ledsToLight = 7;}
else if(analog_input  > 2400 && analog_input  < 2700 ) {ledsToLight = 8;}
else if(analog_input  > 2700 && analog_input  < 3000 ) {ledsToLight = 9;}
else if(analog_input  > 3000 && analog_input  < 3300 ) {ledsToLight = 10;}
else if(analog_input  > 3300 && analog_input  < 3600 ) {ledsToLight = 11;}
else if(analog_input  > 3600 && analog_input  < 3900 ) {ledsToLight = 12;}
else if(analog_input  > 3900 && analog_input  < 4200 ) {ledsToLight = 13;}
else if(analog_input  > 4200 && analog_input  < 4500 ) {ledsToLight = 14;}
else if(analog_input  > 4500 && analog_input  < 4800 ) {ledsToLight = 15;}
else if(analog_input  > 4800 )  {ledsToLight = 16;}


if (ledsToLight == 0) {
  doFlash();
} else {
 auto colorOff = strip.Color(0,0,0);
 auto colorOn = getColor(ledsToLight);
  updateStrip(ledsToLight, colorOn, colorOff);
}

}

void doFlash(){
  auto color = strip.Color(0,0,0);

  if((millis() / 540) & 1 != 0){
    color = strip.Color(255,0,0);
  }

  for (int x = 0; x < Pixel_Number; x++){
    strip.setPixelColor(x, color);
  }
  strip.show();
}

papagino · January 31, 2024, 10:54pm

Thank you so much Rintin, this is exactly what I was looking for.
Cheers

Topic		Replies	Views
Multiple NeoPixel Led Strips LEDs and Multiplexing	18	7398	May 6, 2021
Neopixel code help needed LEDs and Multiplexing	3	2503	May 6, 2021
Neopixel RPM Gauge Programming	3	1077	May 5, 2021
Need help with a Neopixel project LEDs and Multiplexing	3	823	May 6, 2021
question about running ws2812 leds LEDs and Multiplexing	10	1658	May 6, 2021

Creating a fuel gauge using 16x NeoPixels

Related topics
