how to take push button output signal in pec11 encoder

[alagappan]

Hi,

from which pin (S or W) we need to take push button signal, and is that 5v needed to give to S pin.

Could anyone suggest me the connection to take push button signal in pec?

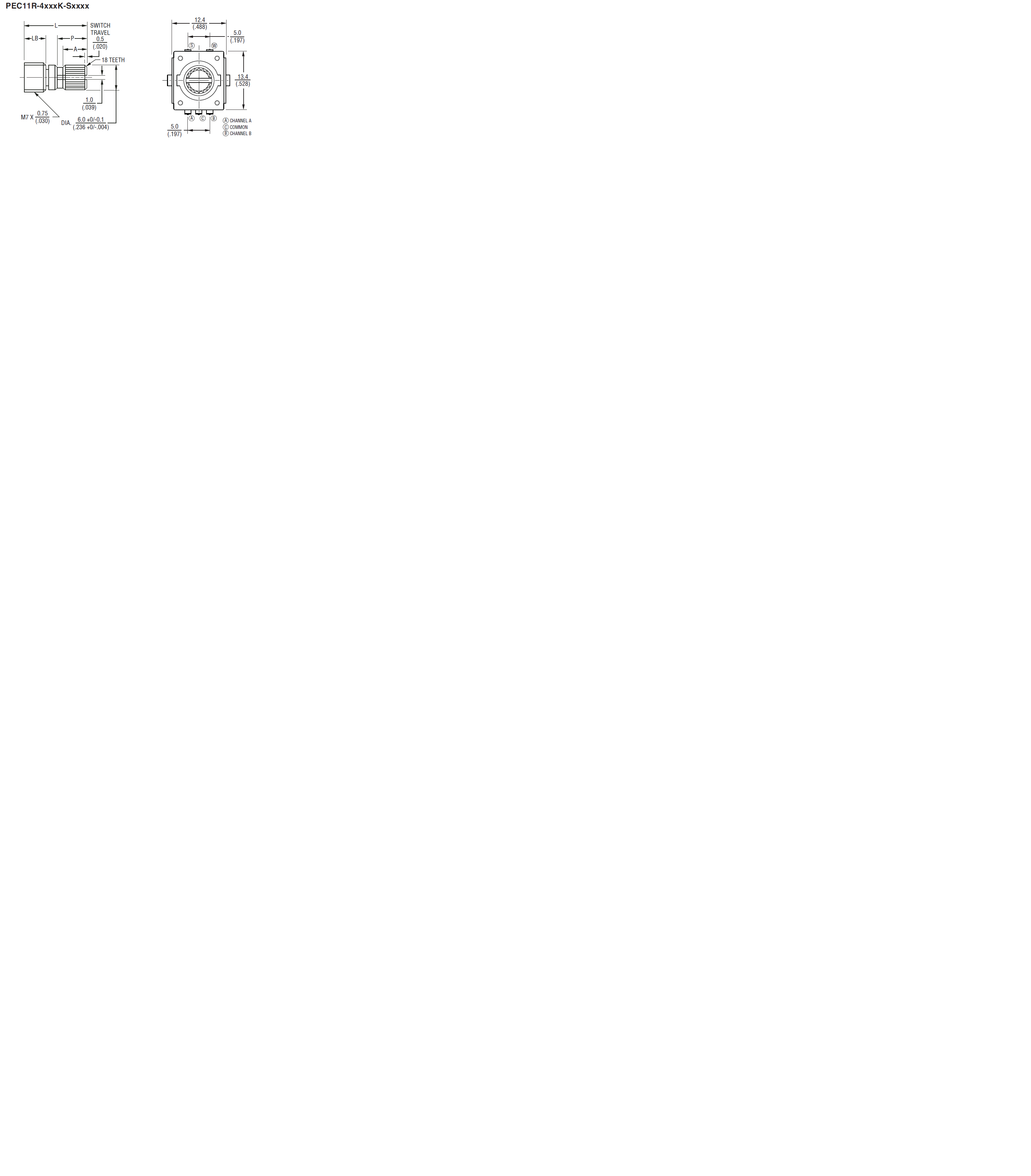

In datasheet i referred connection for A,B encoder out. It is ok. but for switch i did not get clearly

Thanks

Alagappan

[weedpharma]

It looks like the S and W pins are the contacts of the switch and can be used the same as any normal switch.

I would connect it from a digital input to gnd and use a pull up R. Polarity does not matter.

Weedpharma
