MAX7219 turning on/off the wrong LEDs

jm_vc01 · October 6, 2025, 6:37pm

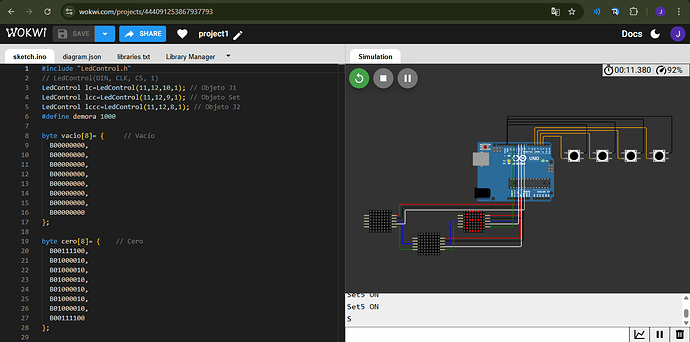

So I'm trying to make a table tennis scoreboard, I'm using an Arduino UNO R3 and 3 MAX7219. Everything works perfectly until I get to the middle one. The left MAX7219 ("player 1") shows all the images just fine, while the middle one (corresponding to sets played, where the LED on the top left side shows "player 1" has won the first set) tends to have issues with the last row of LEDs. Then, the right MAX7219 ("player 2") also has issues with LEDs, but this time it's with the last 2 rows. (I'm trying to show a "7" in the right one but the last 2 rows show different LEDs on, as if it was trying to show other number on those).
Is there any probable cause of this happening? Note I've already changed all the cables, the Arduino UNO, and the order of the MAX7219's, but it's always the middle and right one not working properly.

#include "LedControl.h"
// LedControl(DIN, CLK, CS, 1)
LedControl lc=LedControl(11,12,10,1); // Objeto J1
LedControl lcc=LedControl(11,12,9,1); // Objeto Set
LedControl lccc=LedControl(11,12,8,1); // Objeto J2
#define demora 1000

byte vacio[8]= {     // Vacío
  B00000000,
  B00000000,
  B00000000,
  B00000000,
  B00000000,
  B00000000,
  B00000000,
  B00000000
};

byte cero[8]= {    // Cero
  B00111100,
  B01000010,
  B01000010,
  B01000010,
  B01000010,
  B01000010,
  B01000010,
  B00111100
};

byte uno[8]= {     // Uno
  B00010000,
  B00110000,
  B00010000,
  B00010000,
  B00010000,
  B00010000,
  B00010000,
  B00111000
};

byte dos[8]= {     // Dos
  B00111000,
  B01000100,
  B00000100,
  B00001000,
  B00010000,
  B00100000,
  B01000000,
  B01111100
};

byte tres[8]= {    // Tres
  B00111100,
  B01000010,
  B00000010,
  B00001100,
  B00000010,
  B00000010,
  B01000010,
  B00111100
};

byte cuatro[8]= {    // Cuatro
  B00000100,
  B00001100,
  B00010100,
  B00100100,
  B01000100,
  B01111110,
  B00000100,
  B00000100
};

byte cinco[8]= {     // Cinco
  B01111110,
  B01000000,
  B01000000,
  B01111100,
  B00000010,
  B00000010,
  B01000010,
  B00111100
};

byte seis[8]= {    // Seis
  B00111100,
  B01000010,
  B01000000,
  B01111100,
  B01000010,
  B01000010,
  B01000010,
  B00111100
};

byte siete[8]= {     // Siete
  B01111110,
  B00000010,
  B00000010,
  B00000100,
  B00001000,
  B00010000,
  B00100000,
  B00100000
};

byte ocho[8]= {    // Ocho
  B00111100,
  B01000010,
  B01000010,
  B00111100,
  B01000010,
  B01000010,
  B01000010,
  B00111100
};

byte nueve[8]= {     // Nueve
  B00111100,
  B01000010,
  B01000010,
  B01000010,
  B00111110,
  B00000010,
  B01000010,
  B00111100
};

byte diez[8]= {     // Diez
  B01000110,
  B11001001,
  B01001001,
  B01001001,
  B01001001,
  B01001001,
  B01001001,
  B11100110
};

byte once[8]= {     // Once
  B01000010,
  B11000110,
  B01000010,
  B01000010,
  B01000010,
  B01000010,
  B01000010,
  B11100111
};

byte doce[8]= {     // Doce
  B01000110,
  B11001001,
  B01000001,
  B01000001,
  B01000010,
  B01000100,
  B01001000,
  B11101111
};

byte trece[8]= {     // Trece
  B01000110,
  B11001001,
  B01000001,
  B01000110,
  B01000001,
  B01000001,
  B01001001,
  B11100110
};

byte catorce[8]= {     // Catorce
  B01000010,
  B11000110,
  B01001010,
  B01001010,
  B01010010,
  B01011111,
  B01000010,
  B11100010
};

byte quince[8]= {     // Quince
  B01001111,
  B11001000,
  B01001000,
  B01001110,
  B01000001,
  B01000001,
  B01000001,
  B11101110
};

byte dieciseis[8]= {     // Dieciseis
  B01000110,
  B11001001,
  B01001000,
  B01001110,
  B01001001,
  B01001001,
  B01001001,
  B11100110
};

byte diecisiete[8]= {     // Diecisiete
  B01001111,
  B11000001,
  B01000001,
  B01000010,
  B01000100,
  B01001000,
  B01001000,
  B11101000
};

byte dieciocho[8]= {     // Dieciocho
  B01000110,
  B11001001,
  B01001001,
  B01000110,
  B01001001,
  B01001001,
  B01001001,
  B11100110
};

byte diecinueve[8]= {     // Diecinueve
  B01000110,
  B11001001,
  B01001001,
  B01001001,
  B01000111,
  B01000001,
  B01001001,
  B11100110
};

byte unoJ1[8]= {     // 1 Set J1
  B10010000,
  B00110000,
  B00010000,
  B00010000,
  B00010000,
  B00010000,
  B00010000,
  B00111000
};

byte unoJ2[8]= {     // 1 Set J2
  B00010001,
  B00110000,
  B00010000,
  B00010000,
  B00010000,
  B00010000,
  B00010000,
  B00111000
};

byte dosJ1[8]= {     // 2 Sets J1
  B10011000,
  B10100100,
  B00000100,
  B00001000,
  B00010000,
  B00100000,
  B00100000,
  B00111100
};

byte dosEmp[8]= {     // 1 Set J1, 1 Set J2
  B10011001,
  B00100100,
  B00000100,
  B00001000,
  B00010000,
  B00100000,
  B00100000,
  B00111100
};

byte dosJ2[8]= {     // 2 Sets J2
  B00011001,
  B00100101,
  B00000100,
  B00001000,
  B00010000,
  B00100000,
  B00100000,
  B00111100
};

byte tresJ1[8]= {    // 3 Sets J1
  B10011000,
  B10100100,
  B10000100,
  B00011000,
  B00000100,
  B00000100,
  B00100100,
  B00011000
};

byte tresTopJ1[8]= {    // 2 Sets J1 1 Set J2
  B10011001,
  B10100100,
  B00000100,
  B00011000,
  B00000100,
  B00000100,
  B00100100,
  B00011000
};

byte tresTopJ2[8]= {    // 2 Sets J2 1 Set J1
  B10011001,
  B00100101,
  B00000100,
  B00011000,
  B00000100,
  B00000100,
  B00100100,
  B00011000
};

byte tresJ2[8]= {    // 3 Sets J2
  B00011001,
  B00100101,
  B00000101,
  B00011000,
  B00000100,
  B00000100,
  B00100100,
  B00011000
};

byte cuatroJ1[8]= {    // 3 Sets J1 1 Set J2
  B10000101,
  B10001100,
  B10010100,
  B00100100,
  B01000100,
  B01111110,
  B00000100,
  B00000100
};

byte cuatroEmp[8]= {    // 2 Sets J1 2 Sets J2
  B10000101,
  B10001101,
  B00010100,
  B00100100,
  B01000100,
  B01111110,
  B00000100,
  B00000100
};

byte cuatroJ2[8]= {    // 3 Sets J2 1 Set J1
  B10000101,
  B00001101,
  B00010101,
  B00100100,
  B01000100,
  B01111110,
  B00000100,
  B00000100
};

byte cincoJ1[8]= {     // 3 Sets J1 2 Sets J2
  B10111101,
  B10100001,
  B10100000,
  B00111000,
  B00000100,
  B00000100,
  B00100100,
  B00011000
};

byte cincoJ2[8]= {     // 3 Sets J2 2 Sets J1
  B10111101,
  B10100001,
  B00100001,
  B00111000,
  B00000100,
  B00000100,
  B00100100,
  B00011000
};

// PINES DE LAS MATRICES PARA JUGADORES Y SETS
int set3 = 2; // Cambiar por 2
int set5 = 3; // Cambiar por 3
int j1 = 4; // Cambiar por 4
int j2 = 5; // Mantener en 5
int contj1=0;
int contj2=0;
int settJ1=0;
int settJ2=0;
int a=0,b=0,c=0,d=0;
int i = 0;

void setup() {
  Serial.begin(9600);
  pinMode(j1,INPUT_PULLUP);
  pinMode(j2,INPUT_PULLUP);
  pinMode(set3,INPUT_PULLUP);
  pinMode(set5,INPUT_PULLUP);

  lc.shutdown(0,false);     // Enciende matriz
  lc.setIntensity(0,4);     // Brillo de matriz
  lc.clearDisplay(0);     // Matriz vacía
  lcc.shutdown(0,false);
  lcc.setIntensity(0,8);
  lcc.clearDisplay(0);
  lccc.shutdown(0,false);
  lccc.setIntensity(0,4);
  lccc.clearDisplay(0);

  mostrar_0();
  mostrar_000();
  mostrar_0000();
}

void loop(){
  if(digitalRead(set3)==LOW && c==0){
    Serial.println("Set3 OFF");
    c=1;
  }

  if(digitalRead(set3)== HIGH && c==1){
    Serial.println("Set3 ON");
    if(digitalRead(j1)==LOW && a==0){
      Serial.println("Jug1 OFF");
      a=1;
      contj1 += 1;
      if(contj1==11 && contj2<=9){
        contj1=0;
        contj2=0;
        settJ1 += 1;
        mostrar_0000();
      }
      else if(contj1>= 10 && contj2 >= 10 && contj1==contj2+2){
        contj1=0;
        contj2=0;
        settJ1 += 1;
        mostrar_0000();
      }
      delay(100);
    } // Botón J1 Apagado


    if(digitalRead(j1)== HIGH && a==1){
      Serial.println("Jug1 ON");
      a=0;
      if(contj1==0){
        mostrar_0();
      }
      else if(contj1==1){
        mostrar_1();
      }
      else if(contj1==2){
        mostrar_2();
      }
      else if(contj1==3){
        mostrar_3();
      }
      else if(contj1==4){
        mostrar_4();
      }
      else if(contj1==5){
        mostrar_5();
      }
      else if(contj1==6){
        mostrar_6();
      }
      else if(contj1==7){
        mostrar_7();
      }
      else if(contj1==8){
        mostrar_8();
      }
      else if(contj1==9){
        mostrar_9();
      }
      else if(contj1==10){
        mostrar_00();
      }
      else if(contj1==11){
        mostrar_11();
      }
      else if(contj1==12){
        mostrar_22();
      }
      else if(contj1==13){
        mostrar_33();
      }
      else if(contj1==14){
        mostrar_44();
      }
      else if(contj1==15){
        mostrar_55();
      }
      else if(contj1==16){
        mostrar_66();
      }
      else if(contj1==17){
        mostrar_77();
      }
      else if(contj1==18){
        mostrar_88();
      }
      else if(contj1==19){
        mostrar_99();
      }


      if(settJ1==1 && settJ2==0){
        mostrar_111();
      }
      if(settJ1==1 && settJ2==1){
        mostrar_222();
      }
      if(settJ1==2 && settJ2==0){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_221();
          delay(300);
          i += 1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
      if(settJ1==2 && settJ2==1){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_332();
          delay(300);
          i += 1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
      if(settJ2==2 && settJ1==1){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_333();
          delay(300);
          i += 1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
    } // Botón J1 Encendido


    if(digitalRead(j2)==LOW && b==0){
      Serial.println("Jug2 OFF");
      b=1;
      contj2 += 1;
      if(contj2==11 && contj1<=9){
        contj1=0;
        contj2=0;
        settJ2 += 1;
        mostrar_0();
      }
      else if(contj2>= 10 && contj1 >= 10 && contj2==contj1+2){
        contj1=0;
        contj2=0;
        settJ2 += 1;
        mostrar_0();
      }
      delay(100);
    } // Botón J2 Apagado


    if(digitalRead(j2)== HIGH && b==1){
      Serial.println("Jug2 ON");
      b=0;
      if(contj2==0){
        mostrar_0000();
      }
      else if(contj2==1){
        mostrar_1111();
      }
      else if(contj2==2){
        mostrar_2222();
      }
      else if(contj2==3){
        mostrar_3333();
      }
      else if(contj2==4){
        mostrar_4444();
      }
      else if(contj2==5){
        mostrar_5555();
      }
      else if(contj2==6){
        mostrar_6666();
      }
      else if(contj2==7){
        mostrar_7777();
      }
      else if(contj2==8){
        mostrar_8888();
      }
      else if(contj2==9){
        mostrar_9999();
      }
      else if(contj2==10){
        mostrar_00000();
      }
      else if(contj2==11){
        mostrar_11111();
      }
      else if(contj2==12){
        mostrar_22222();
      }
      else if(contj2==13){
        mostrar_33333();
      }
      else if(contj2==14){
        mostrar_44444();
      }
      else if(contj2==15){
        mostrar_55555();
      }
      else if(contj2==16){
        mostrar_66666();
      }
      else if(contj2==17){
        mostrar_77777();
      }
      else if(contj2==18){
        mostrar_88888();
      }
      else if(contj2==19){
        mostrar_99999();
      }


      if(settJ2==1 && settJ1==0){
        mostrar_112();
      }
      if(settJ2==1 && settJ1==1){
        mostrar_222();
      }
      if(settJ2==2 && settJ1==0){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_223();
          delay(300);
          i += 1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
      if(settJ1==2 && settJ2==1){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_332();
          delay(300);
          i += 1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
      if(settJ2==2 && settJ1==1){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_333();
          delay(300);
          i += 1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
      delay(100);
    } // Botón J2 Encendido
  } // Set 3


  if(digitalRead(set5)==LOW && d==0){
    Serial.println("Set5 OFF");
    d=1;
  }
  if(digitalRead(set5)== HIGH && d==1){
    Serial.println("Set5 ON");
    if(digitalRead(j1)==LOW && a==0){
      Serial.println("Jug1 OFF");
      a=1;
      contj1 += 1;
      if(contj1==11 && contj2<=9){
        contj1=0;
        contj2=0;
        settJ1 += 1;
        mostrar_0000();
      }
      else if(contj1>= 10 && contj2 >= 10 && contj1==contj2+2){
        contj1=0;
        contj2=0;
        settJ1 += 1;
        mostrar_0000();
      }
      delay(100);
    } // Botón J1 Apagado


    if(digitalRead(j1)== HIGH && a==1){
      Serial.println("Jug1 ON");
      a=0;
      if(contj1==0){
        mostrar_0();
      }
      else if(contj1==1){
        mostrar_1();
      }
      else if(contj1==2){
        mostrar_2();
      }
      else if(contj1==3){
        mostrar_3();
      }
      else if(contj1==4){
        mostrar_4();
      }
      else if(contj1==5){
        mostrar_5();
      }
      else if(contj1==6){
        mostrar_6();
      }
      else if(contj1==7){
        mostrar_7();
      }
      else if(contj1==8){
        mostrar_8();
      }
      else if(contj1==9){
        mostrar_9();
      }
      else if(contj1==10){
        mostrar_00();
      }
      else if(contj1==11){
        mostrar_11();
      }
      else if(contj1==12){
        mostrar_22();
      }
      else if(contj1==13){
        mostrar_33();
      }
      else if(contj1==14){
        mostrar_44();
      }
      else if(contj1==15){
        mostrar_55();
      }
      else if(contj1==16){
        mostrar_66();
      }
      else if(contj1==17){
        mostrar_77();
      }
      else if(contj1==18){
        mostrar_88();
      }
      else if(contj1==19){
        mostrar_99();
      }


      if(settJ1==1 && settJ2==0){
      mostrar_111();
      }
      if(settJ1==1 && settJ2==1){
        mostrar_222();
      }
      if(settJ1==2 && settJ2==0){
        mostrar_221();
      }
      if(settJ1==2 && settJ2==1){
        mostrar_332();
      }
      if(settJ1==1 && settJ2==2){
        mostrar_333();
      }
      if(settJ1==2 && settJ2==2){
        mostrar_442();
      }
      if(settJ1==3 && settJ2==0){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_331();
          delay(300);
          i = i+1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
      if(settJ1==3 && settJ2==1){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_441();
          delay(300);
          i = i+1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
      if(settJ1==3 && settJ2==2){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_551();
          delay(300);
          i = i+1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
    } // Botón J1 Encendido


    if(digitalRead(j2)==LOW && b==0){
      Serial.println("Jug2 OFF");
      b=1;
      contj2 += 1;
      if(contj2==11 && contj1<=9){
        contj1=0;
        contj2=0;
        settJ2 += 1;
        mostrar_0();
      }
      else if(contj2>= 10 && contj1 >= 10 && contj2==contj1+2){
        contj1=0;
        contj2=0;
        settJ2 += 1;
        mostrar_0();
      }
      delay(100);
    } // Botón J2 Apagado


    if(digitalRead(j2)== HIGH && b==1){
      Serial.println("Jug2 ON");
      b=0;
      if(contj2==0){
        mostrar_0000();
      }
      else if(contj2==1){
        mostrar_1111();
      }
      else if(contj2==2){
        mostrar_2222();
      }
      else if(contj2==3){
        mostrar_3333();
      }
      else if(contj2==4){
        mostrar_4444();
      }
      else if(contj2==5){
        mostrar_5555();
      }
      else if(contj2==6){
        mostrar_6666();
      }
      else if(contj2==7){
        mostrar_7777();
      }
      else if(contj2==8){
        mostrar_8888();
      }
      else if(contj2==9){
        mostrar_9999();
      }
      else if(contj2==10){
        mostrar_00000();
      }
      else if(contj2==11){
        mostrar_11111();
      }
      else if(contj2==12){
        mostrar_22222();
      }
      else if(contj2==13){
        mostrar_33333();
      }
      else if(contj2==14){
        mostrar_44444();
      }
      else if(contj2==15){
        mostrar_55555();
      }
      else if(contj2==16){
        mostrar_66666();
      }
      else if(contj2==17){
        mostrar_77777();
      }
      else if(contj2==18){
        mostrar_88888();
      }
      else if(contj2==19){
        mostrar_99999();
      }


      if(settJ2==1 && settJ1==0){
        mostrar_112();
      }
      if(settJ2==1 && settJ1==1){
        mostrar_222();
      }
      if(settJ2==2 && settJ1==0){
        mostrar_223();
      }
      if(settJ2==1 && settJ1==2){
        mostrar_332();
      }
      if(settJ2==2 && settJ1==1){
        mostrar_333();
      }
      if(settJ2==2 && settJ1==2){
        mostrar_442();
      }
      if(settJ2==3 && settJ1==0){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_334();
          delay(300);
          i = i+1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
      if(settJ2==3 && settJ1==1){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_443();
          delay(300);
          i = i+1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
      if(settJ2==3 && settJ1==2){
        while(i < 25){
          mostrar_10();
          delay(300);
          mostrar_552();
          delay(300);
          i = i+1;
        }
        contj1=0;
        contj2=0;
        settJ1=0;
        settJ2=0;
        mostrar_0();
        mostrar_000();
        mostrar_0000();
        a=0;
        b=0;
        i=0;
      }
      delay(100);
    } // Botón J2 Encendido
  } // Set 5
} // Void Loop


void mostrar_10(){     // Mostrar Vacío Set
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,vacio[i]);
  }
}

void mostrar_0(){     // Mostrar 0 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,cero[i]);
  }
}
void mostrar_000(){     // Mostrar 0 Set
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,cero[i]);
  }
}
void mostrar_0000(){     // Mostrar 0 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,cero[i]);
  }
}

void mostrar_1(){     // Mostrar 1 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,uno[i]);
  }
}
void mostrar_111(){     // Mostrar 1 Set J1
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,unoJ1[i]);
  }
}
void mostrar_112(){     // Mostrar 1 Set J2
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,unoJ2[i]);
  }
}
void mostrar_1111(){     // Mostrar 1 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,uno[i]);
  }
}

void mostrar_2(){     // Mostrar 2 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,dos[i]);
  }
}
void mostrar_221(){     // Mostrar 2 Sets J1
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,dosJ1[i]);
  }
}
void mostrar_222(){     // Mostrar 1 Set J1 1 Set J2
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,dosEmp[i]);
  }
}
void mostrar_223(){     // Mostrar 2 Sets J2
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,dosJ2[i]);
  }
}
void mostrar_2222(){     // Mostrar 2 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,dos[i]);
  }
}

void mostrar_3(){     // Mostrar 3 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,tres[i]);
  }
}
void mostrar_331(){     // Mostrar 3 Sets J1
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,tresJ1[i]);
  }
}
void mostrar_332(){     // Mostrar 2 Sets J1 1 Set J2
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,tresTopJ1[i]);
  }
}
void mostrar_333(){     // Mostrar 2 Sets J2 1 Set J1
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,tresTopJ2[i]);
  }
}
void mostrar_334(){     // Mostrar 3 Sets J2
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,tresJ2[i]);
  }
}
void mostrar_3333(){     // Mostrar 3 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,tres[i]);
  }
}

void mostrar_4(){     // Mostrar 4 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,cuatro[i]);
  }
}
void mostrar_441(){     // Mostrar 3 Sets J1 1 Set J2
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,cuatroJ1[i]);
  }
}
void mostrar_442(){     // Mostrar 2 Sets J1 2 Sets J2
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,cuatroEmp[i]);
  }
}
void mostrar_443(){     // Mostrar 3 Sets J2 1 Set J1
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,cuatroJ2[i]);
  }
}
void mostrar_4444(){     // Mostrar 4 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,cuatro[i]);
  }
}

void mostrar_5(){     // Mostrar 5 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,cinco[i]);
  }
}
void mostrar_551(){     // Mostrar 3 Sets J1 2 Sets J2
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,cincoJ1[i]);
  }
}
void mostrar_552(){     // Mostrar 3 Sets J2 2 Sets J1
  for (int i = 0; i < 8; i++){
    lcc.setRow(0,i,cincoJ2[i]);
  }
}
void mostrar_5555(){     // Mostrar 5 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,cinco[i]);
  }
}

void mostrar_6(){     // Mostrar 6 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,seis[i]);
  }
}
void mostrar_6666(){     // Mostrar 6 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,seis[i]);
  }
}

void mostrar_7(){     // Mostrar 7 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,siete[i]);
  }
}
void mostrar_7777(){     // Mostrar 7 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,siete[i]);
  }
}

void mostrar_8(){     // Mostrar 8 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,ocho[i]);
  }
}
void mostrar_8888(){     // Mostrar 8 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,ocho[i]);
  }
}

void mostrar_9(){     // Mostrar 9 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,nueve[i]);
  }
}
void mostrar_9999(){     // Mostrar 9 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,nueve[i]);
  }
}

void mostrar_00(){     // Mostrar 10 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,diez[i]);
  }
}
void mostrar_00000(){     // Mostrar 10 J2
  for (int i = 0; i < 8; i++) {
    lccc.setRow(0,i,diez[i]);
  }
}

void mostrar_11(){     // Mostrar 11 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,once[i]);
  }
}
void mostrar_11111(){     // Mostrar 11 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,once[i]);
  }
}

void mostrar_22(){     // Mostrar 12 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,doce[i]);
  }
}
void mostrar_22222(){     // Mostrar 12 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,doce[i]);
  }
}

void mostrar_33(){     // Mostrar 13 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,trece[i]);
  }
}
void mostrar_33333(){     // Mostrar 13 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,trece[i]);
  }
}

void mostrar_44(){     // Mostrar 14 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,catorce[i]);
  }
}
void mostrar_44444(){     // Mostrar 14 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,catorce[i]);
  }
}

void mostrar_55(){     // Mostrar 15 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,quince[i]);
  }
}
void mostrar_55555(){     // Mostrar 15 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,quince[i]);
  }
}

void mostrar_66(){     // Mostrar 16 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,dieciseis[i]);
  }
}
void mostrar_66666(){     // Mostrar 16 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,dieciseis[i]);
  }
}

void mostrar_77(){     // Mostrar 17 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,diecisiete[i]);
  }
}
void mostrar_77777(){     // Mostrar 17 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,diecisiete[i]);
  }
}

void mostrar_88(){     // Mostrar 18 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,dieciocho[i]);
  }
}
void mostrar_88888(){     // Mostrar 18 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,dieciocho[i]);
  }
}

void mostrar_99(){     // Mostrar 19 J1
  for (int i = 0; i < 8; i++){
    lc.setRow(0,i,diecinueve[i]);
  }
}
void mostrar_99999(){     // Mostrar 19 J2
  for (int i = 0; i < 8; i++){
    lccc.setRow(0,i,diecinueve[i]);
  }
}

maxint-rd · October 6, 2025, 6:42pm

My first guess (after flaky connections) would be that it’s a power issue…

Have you tried using a separate power supply (with shared ground)?

Also try with one module less. Disconnect the right one to see what it does.

If the errors are always the same, you can probably roll out line noise, but sometimes adding a few large capacitors near the module can do wonders.

MaximoEsfuerzo · October 6, 2025, 6:44pm

Attach your code (using <CODE/> tags) so we don't have to guess what's going on.

jm_vc01 · October 6, 2025, 6:51pm

Thanks, I've attatched the code now

jm_vc01 · October 6, 2025, 6:54pm

I'll make sure to get the separate power supply ASAP
On the other hand, I've disconnected the right one, yet the middle one keeps having issues with the last row
By the way, I've also attatched the code now, maybe the root of the problem can be over there (Sorry if some variables or notes are in spanish)

maxint-rd · October 6, 2025, 6:56pm

Unfortunately I don’t have time to reproduce your issue in a test setup.

One suggestion though: you may want to try your sketch in the Wokwi simulator. If it show similar behavior you could conclude it’s not a hardware issue.

jm_vc01 · October 6, 2025, 7:34pm

I've just done it. However, middle and right modules straight don't turn on, while left one works perfectly, would that mean that perhaps there's an issue in software? (Or maybe I'm just doing something wrong in the simulator? I'll include the simulator files just in case)

// diagram.json
{
  "version": 1,
  "author": "-",
  "editor": "wokwi",
  "parts": [
    { "type": "wokwi-arduino-uno", "id": "uno", "top": 0.6, "left": -0.6, "attrs": {} },
    {
      "type": "wokwi-pushbutton",
      "id": "btn1",
      "top": 25.4,
      "left": 307.2,
      "attrs": { "color": "black", "xray": "1" }
    },
    {
      "type": "wokwi-pushbutton",
      "id": "btn2",
      "top": 25.4,
      "left": 403.2,
      "attrs": { "color": "black", "xray": "1" }
    },
    {
      "type": "wokwi-pushbutton",
      "id": "btn3",
      "top": 25.4,
      "left": 499.2,
      "attrs": { "color": "black", "xray": "1" }
    },
    {
      "type": "wokwi-pushbutton",
      "id": "btn4",
      "top": 25.4,
      "left": 595.2,
      "attrs": { "color": "black", "xray": "1" }
    },
    {
      "type": "wokwi-max7219-matrix",
      "id": "matrix1",
      "top": 231,
      "left": -53.79,
      "attrs": { "chain": "1" }
    },
    {
      "type": "wokwi-max7219-matrix",
      "id": "matrix2",
      "top": 231,
      "left": -370.59,
      "attrs": { "chain": "1" }
    },
    {
      "type": "wokwi-max7219-matrix",
      "id": "matrix3",
      "top": 307.8,
      "left": -207.39,
      "attrs": { "chain": "1" }
    }
  ],
  "connections": [
    [ "uno:2", "btn1:2.l", "orange", [ "v-28.2", "h61.1", "v76.8" ] ],
    [ "uno:3", "btn2:2.l", "orange", [ "v-37.8", "h166.6", "v86.2" ] ],
    [ "uno:4", "btn3:2.l", "orange", [ "v-47.4", "h272.1", "v95.8" ] ],
    [ "uno:5", "btn4:2.l", "orange", [ "v-57", "h377.6", "v105.4" ] ],
    [ "uno:GND.1", "btn1:1.r", "black", [ "v-66.6", "h268.5", "v96" ] ],
    [ "uno:GND.1", "btn2:1.r", "black", [ "v-76.2", "h364.5", "v105.6" ] ],
    [ "uno:GND.1", "btn3:1.r", "black", [ "v-85.8", "h460.5", "v115.2" ] ],
    [ "uno:GND.1", "btn4:1.r", "black", [ "v-95.4", "h556.5", "v124.8" ] ],
    [ "uno:5V", "matrix1:V+", "red", [ "v0" ] ],
    [ "uno:5V", "matrix2:V+", "red", [ "v19.7", "h-409.6", "v19.2" ] ],
    [ "uno:5V", "matrix3:V+", "red", [ "v0" ] ],
    [ "uno:GND.2", "matrix2:GND", "black", [ "v29.3", "h-409.5", "v38.4" ] ],
    [ "uno:GND.2", "matrix1:GND", "black", [ "v0" ] ],
    [ "uno:GND.2", "matrix3:GND", "black", [ "v0" ] ],
    [ "uno:11", "matrix1:DIN", "blue", [ "v0" ] ],
    [ "matrix1:DOUT", "matrix3:DIN", "blue", [ "h-25.01", "v76.8" ] ],
    [ "matrix3:DOUT", "matrix2:DIN", "blue", [ "h-34.61", "v-76.8" ] ],
    [ "uno:10", "matrix1:CS", "white", [ "v0" ] ],
    [ "uno:9", "matrix3:CS", "white", [ "v0" ] ],
    [ "uno:8", "matrix2:CS", "white", [ "v221.4", "h-403.4", "v48" ] ],
    [ "uno:12", "matrix1:CLK", "green", [ "v0" ] ],
    [ "matrix1:CLK.2", "matrix3:CLK", "green", [ "h-15.41", "v86.4" ] ],
    [ "matrix3:CLK.2", "matrix2:CLK", "green", [ "h-44.21", "v-76.8" ] ]
  ],
  "dependencies": {}
}

// libraries.txt
# Wokwi Library List
# See https://docs.wokwi.com/guides/libraries

LedControl

MaximoEsfuerzo · October 6, 2025, 7:36pm

I think it's wired incorrectly, try connecting the DIn of each module to the UNO, not in cascade as you have it now.

I also simulated it, and it works correctly (or so I think because wokwi is not very mobile friendly ), but with the DIN pins connected in parallel. Your code handles each module individually to cascade them (DOut -> DIn as you have it now) the code is different.

jm_vc01 · October 6, 2025, 7:43pm

Just connected each module's DIN to the UNO and it works perfectly now, thanks so much, I can't believe I actually struggled with it for a day or so, again thanks a lot

alto777 · October 7, 2025, 1:28am

You can post a link to your simulation.

a7

Topic		Replies	Views
MAX 7221 only lighting 2 lights per matrix General Electronics	15	4921	May 6, 2021
Arduino connected to LED matrix (MAX 7219) Frequently-Asked Questions	18	9372	May 6, 2021
5x7 LED Matrix (Common Cath) + MAX7221; Can't program LEDs and Multiplexing	12	4276	May 6, 2021
max7219, tutorial mistake? Interfacing	21	9562	May 6, 2021
Advice on connection from MAX7221 to Arduino Uno with video General Guidance	12	3465	May 5, 2021

MAX7219 turning on/off the wrong LEDs

Related topics
