I have a piece of hard plastic I need to make holes into to mount a NEMA stepper motor (4 M4 holes + the 22mm center), and a 128x64 LCD display (~22mmx11mm rectangle + 4 small screw holes). What's the easiest way to precisely do this without going the custom enclosure route? I can't find any drill guides or jigs available for these items. Thanks for your help.

Place paper on the motor (plate) and rub with a pencil to get an impression of the plate to use as a drill template.

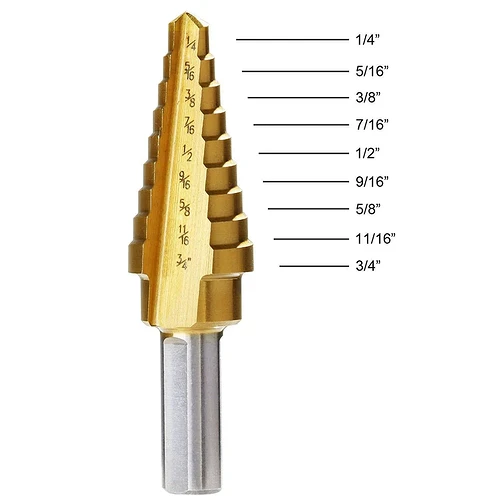

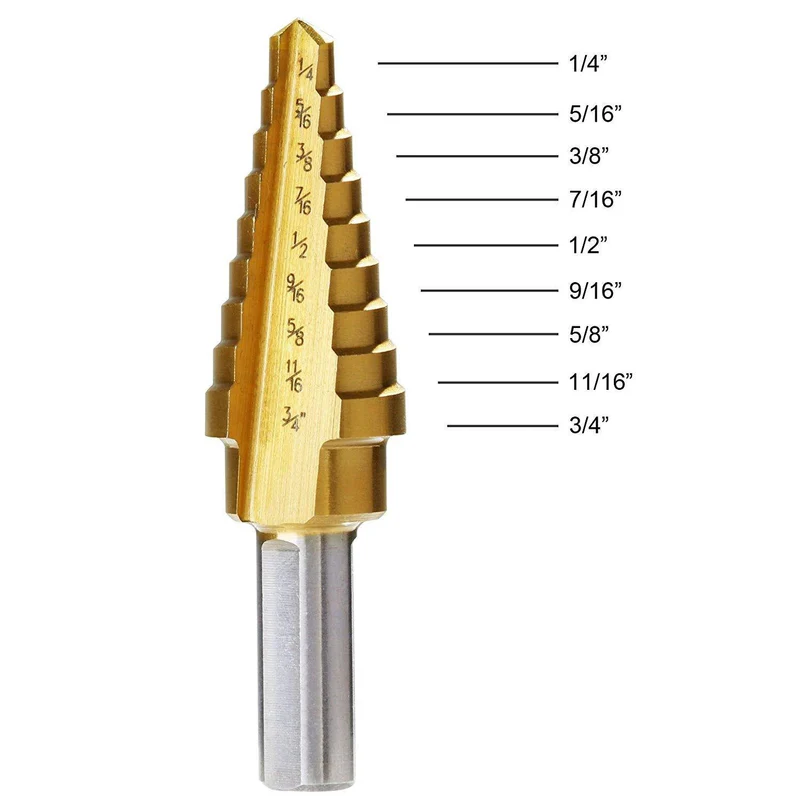

Avoid twist drills when making holes in plastic ! A step bit works well, a D bit works well too. [IMG_3808] [image] Slow drill speed is needed, let the bit do the work. [image] Share tips you have come across General Electronics Sometimes, drilling plastic can be difficult. An: engraving/end mill/spoon/D bit can make this task easy and safe. Chuck your bit in an electric drill or cordless screw driver. At slow speed, advance the bit into the plastic. These bits cut clock wise. (looking from the drill to the hole) The single fluted bit cuts thin shavings as it advances. Since the bits are tapered, you can drill smaller holes than the bit diameter, if you drill partly through the plastic. However, the hole will be … [image] Share tips you have come across General Electronics If you do not have access to a CNC machine, you can manually drill accurate ‘Project Panels’ by following this discussion. Plastic panels are best drilled manually using ‘Step Bits’ as they do not auger into the panel as regular bits do. Using your favourite template drawing software, make a 1:1 layout of your panel. Print the template on ‘Sticky Backed’ label paper. (Regular paper may be used and attached with tape.) Attach the template to the plastic panel. You can avoid center punching h… Make a hole pattern template from scrap material to confirm the motor holes are correctly placed. [image] Share tips you have come across General Electronics Mounting Hardware on Panels, Chassis, etc. It is almost inevitable that when you measure and drill holes in surfaces to mount motors etc., you never get things perfect. The following procedure should give great results to get holes in the correct position. Measure the hole locations needed for your motor, transfer these to a graph paper template Use this template to make a rough pattern on a piece of scrap material Make the holes in this pattern oversized with the motor still being ab… [C]

Mounting help: Drill guides for NEMA stepper / OLED display

Community General Discussion

LarryD December 30, 2024, 7:52am 3

Avoid twist drills when making holes in plastic !
A step bit works well, a D bit works well too.

IMG_3808800×800 29.5 KB

Slow drill speed is needed, let the bit do the work.

Make a hole pattern template from scrap material to confirm the motor holes are correctly placed.
