What connector is this?

Other Hardware General Electronics
1

Been poking into HUDs again and I found a driver schematic for a board which looks like it can drive a Sony ECX337A OLED.

It's here: sony-ecx/PVS114T1.pdf at master · aedancullen/sony-ecx · GitHub

One problem, and it's that I can't identify the connector used for J1, and googling the part number results in like 7 results, much less a KiCAD library. The only seller I can find is a single AliExpress store and variations of part numbers results in nothing.

Does anyone know what connector is used here?

2

Buy the complete module and you get both halves. Looks like the display needs a driver card or are you trying to reinvent that LSI chip?

3

I'm trying to build my own driver

EDIT - I can't order from Alibaba because I'm not a business nor do I work under one.

EDIT - Looks like I can sign up as a non-business.

4

Just in case I can't get this seller to sell me something, will you help me decipher the F3Z file, schematic, and code? Or can I find someone else.

5

Don't worry, theyll sell it to you.

6

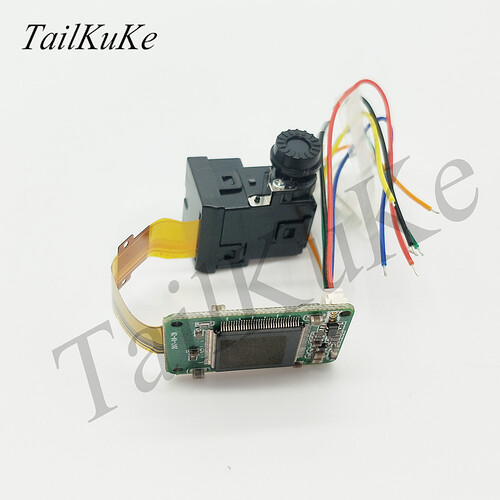

The seller recommended me this: 0.24'' 960x540 Full Color Micro Monitor Av Display Module For Viewfinder Diy - Buy Micro Monitor,Av Display,Viewfinder Product on Alibaba.com

Do you think there's a screen I can dig out in there?

7

For buying in small quantities, try AliExpress.com:

8

You mean of course aliexpress.com

9
