LCD1602 and Power Module MB V2

Other Hardware Displays
1

Hi guys,

I'v a problem. If I connect the power supply of LCD Module directly to the arduino board, the test programm works fine.

If I change the power supply of LCD to the external power module an reset the test programm, LCD only shows gibberish.

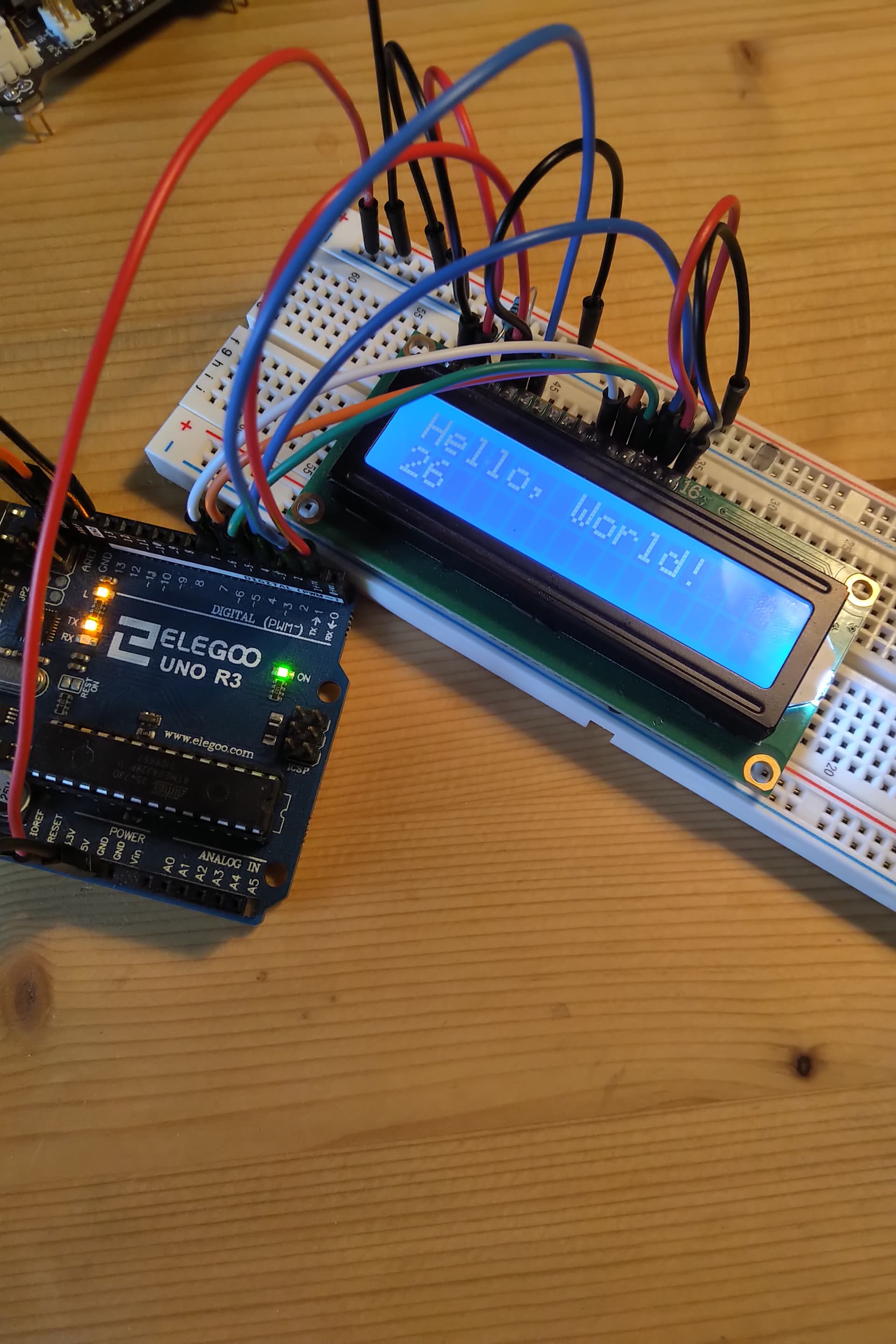

IMG_20230305_1309597
IMG_20230305_13095971920×2880 363 KB

How can I fix this? Thx!

2

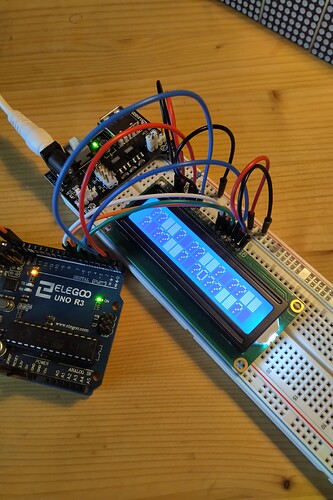

IMG_20230305_1309062
IMG_20230305_13090621920×2880 343 KB

3

Background is, I need the 5V power port on the arduino board for a extra device.

4

Hi!

In the first pic where the GND from Arduino is connected?

Best regards.

5

I get the solution, thx to Paul_B. GND connection to the arduino board was missed.

6

Paul_B?
