I am using the attached NTC and connected it in series with a 10k resistor, supplying the series with 5V from Arduino.
I can't figure out what is going wrong.
The voltage at the ends of the NTC is sent to pin A5 of Arduino and I wrote the code to calculate the temperature.
(If I leave 33k measure 15°C)

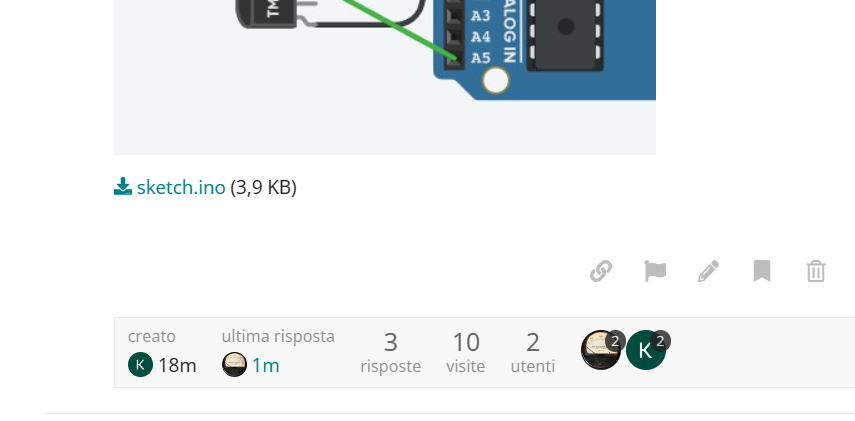

NTC-2.pdf (165,8 KB)
sketch.ino (3,9 KB)
Please post your entire sketch, not a snippet.

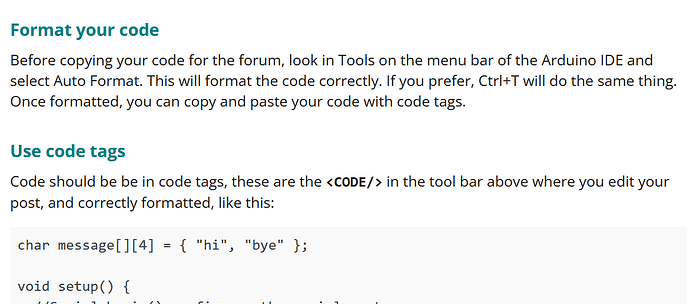

Edit - please post your code in line, in a following message. Please do not edit your original post. Do not add code as an attachment again.
There is the sketch.ino file atatched
Please read the forum guidelines.
This is from:
See also FAQ - Arduino Forum for general rules on forum behaviour and etiquette.
Hello,
Welcome to the Arduino Forum.
This guide explains how to get the best out of this forum. Please read and follow the instructions below.
Being new here you might think this is having rules for the sake of rules, but that is not the case. If you don’t follow the guidelines all that happens is there is a long exchange of posts while we try to get you to tell us what we need in order to help you, which is fru…
1 Like
As I was pasting the code here I realized that I had not initialized the NTC pin ... what a stupid mistake I made!
pinMode(readPin, ntc_pin);
Sorry for wasting your time, the important thing is to have solved and understood the error.
1 Like
Koepel
May 13, 2023, 12:17pm
8
It starts with the NTC.
Since you have a unknown NTC, you can not calculate the temperature, you can only make guesses.
I came across this document that shows how the formula is not ideal: https://catalogs.kyocera-avx.com/NTC-Thermistors.pdf
Please explain what that line of code is. Can you show your whole sketch ?
Don't assume you will get exactly 5v from there...........
DaveX
May 14, 2023, 12:26am
10
This does not look right. Your sketch has ntc_pin defined as A5 undefined, which is not INPUT, INPUT_PULLUP or OUTPUT .
By default, the pins are initialized to all be pinMode(xxx,INPUT)
Your sketch.ino:
//Librearie per il display LCD:
#include <Wire.h> //libreria per I2C
#include <LiquidCrystal_I2C.h> //libreria per LCD
LiquidCrystal_I2C lcd = LiquidCrystal_I2C(0x27, 20, 4);
//Pins su Arduino da usare:
#define ntc2_pin A5 // Pin che rileva la V del partitore di tensione del NTC2
#define Vg 8 // Pin che da in output la V
#define vdd 2 // 5V per il partitore di tensione
//Parametri dell'NTC2:
#define R0_NTC2 37000 //Resistenza nominale a 25⁰C .. cioè 33k
#define temperatura_nominale 25 //Temperatura nominale = 25⁰C
#define beta2 4220 //coefficiente beta del termistore
#define Rref 10000 //Valore del resistore utilizzato per i partitori di tensione
float campioni2 = 0; //array per memorizzare i campioni di tensione letti (generati da NTC2)
int readPin = A3;
float temperatura2 = 0; //a 25°C la resistenza è 10k per ntc1 e 33k per nct2
int ritardo = 500;
int i = 0; //per il ciclo for
float tensione2 = 0; //per il ciclo for
float Rntc2 = 0;
void setup() {
/*
SDA --> A4
SCL --> A5
GND --> GND
5V --> 5V
*/
//pinMode(4, OUTPUT); //SDA
//pinMode(5, OUTPUT); //SCL
lcd.init();
lcd.backlight();
lcd.clear();
pinMode(readPin, INPUT); //readPin = A3 = input A CHE MI SERVE A3 ????
pinMode(Vg, OUTPUT);
//pinMode(vdd,OUTPUT); //D2 = output (fornisce i 5V)
Serial.begin(9600);
}
void loop() {
//Prelevo 10 campioni e ne calcolo la media (per una miglior precisione):
//inizio lettura (e campionamento):
int numero_campioni = 20; //scegli tu quanto mettere
//digitalWrite(vdd,HIGH);
for (i = 0; i < numero_campioni ; i++) {
campioni2 = campioni2 + (float)analogRead(ntc2_pin);
delay(20); //ogni campione viene letto ogni 20ms
}
//digitalWrite(vdd,LOW);
//fine lettura
tensione2 = campioni2 / numero_campioni;
tensione2 = tensione2/1024.0*5;
campioni2=0;
//tensione = (float)analogRead(ntc1_pin);
//tensione = tensione/1024.0*5;
//V partitore:
/*Serial.print("V partitore = ");
Serial.println (tensione, 3);
Serial.println(" [V]");
lcd.setCursor(0, 0); //a sx le colonne .. a dx le righe
lcd.print("V partitore = ");
lcd.setCursor(14, 0);
lcd.print(tensione);
lcd.print(" V");*/
delay(50);
//resistenza dell'NTC2 (termistore)
Rntc2 = tensione2*Rref/(5*(1-tensione2/5));
Serial.print("Rntc2 = ");
Serial.println (Rntc2, 2);
Serial.println(" [ohm]");
lcd.setCursor(0, 2); //a sx le colonne .. a dx le righe
lcd.print("Rntc2 = ");
lcd.setCursor(8, 2);
lcd.print(Rntc2);
lcd.print(" ohm");
//temperatura media dell'NTC (termistore)
/*temperatura = media / resistenza_nominale;
temperatura = log(temperatura) / beta;
temperatura = 1.0 / (temperatura_nominale + 273.15);
temperatura = (1.0 / temperatura) - 273.15;
*/
temperatura2 = (1./296.15+log(Rntc2/R0_NTC2)/beta2);
temperatura2 = 1/temperatura2;
Serial.print("T2 = ");
Serial.print(temperatura2-273.15);
Serial.println(" °C");
lcd.setCursor(0, 3);
lcd.print("T2 = ");
lcd.setCursor(5, 3);
lcd.print(temperatura2-273.15);
lcd.print(" C");
////////////////////////////////////////////////////////// CONTROLLO //////////////////////////////////////////////////////////
/*
if (temperatura1-273.15 >= 40)
{
digitalWrite(Vg, LOW);
}
else if (temperatura1-273.15 < 40)
{
digitalWrite(Vg, HIGH);
}
else if(temperatura1-273.15 < 40 && temperatura1-273.15 > 37){
digitalWrite(Vg, HIGH);
}
*/
////////////////////////////////////////////////////////// CONTROLLO //////////////////////////////////////////////////////////
/*
tensione = ((5.)/1023.)*analogRead(readPin);
Serial.println(tensione); //stampo il valore di V letto
Serial.print("[V]"); //stampo la stringa "[V]" dopo il numero per chiarezza di lettura
delay(ritardo); //eventualmente un ritardo tra una lettura e un'altra
*/
}
