Mini oscilloscope use with 7 pin OLED 1.3-inch

Other Hardware Displays
1

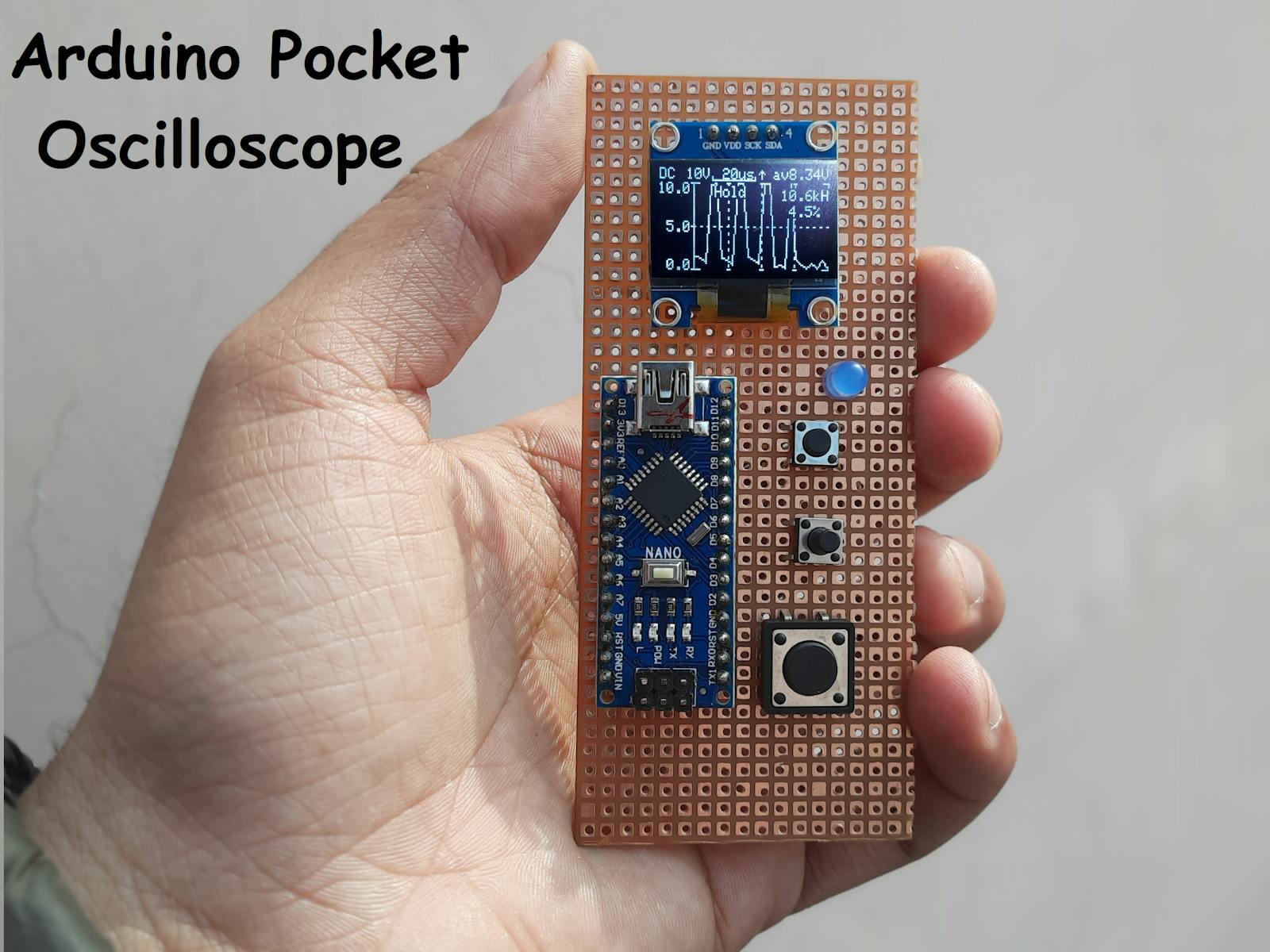

I want to make this project, but instead of the .96-inch screen want to use a 7 pin 1.3-inch OLED V1.2, as I have some and are larger.
I have tried to find code that drives the screen, but found nothing.
Here is the link of the original design

Any helpwith be gratly appreciated.
regards
Jav

2

Do tell.

3

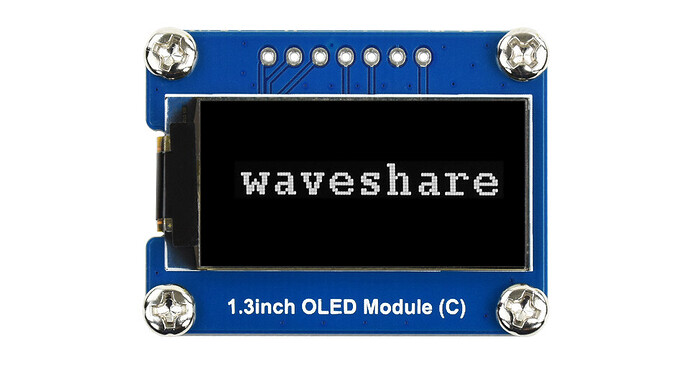

This fella?


Do you need a jumper in the IIC or SPI pins?

The text says: Driver Chip SSD1306

But this one says SSH1107...

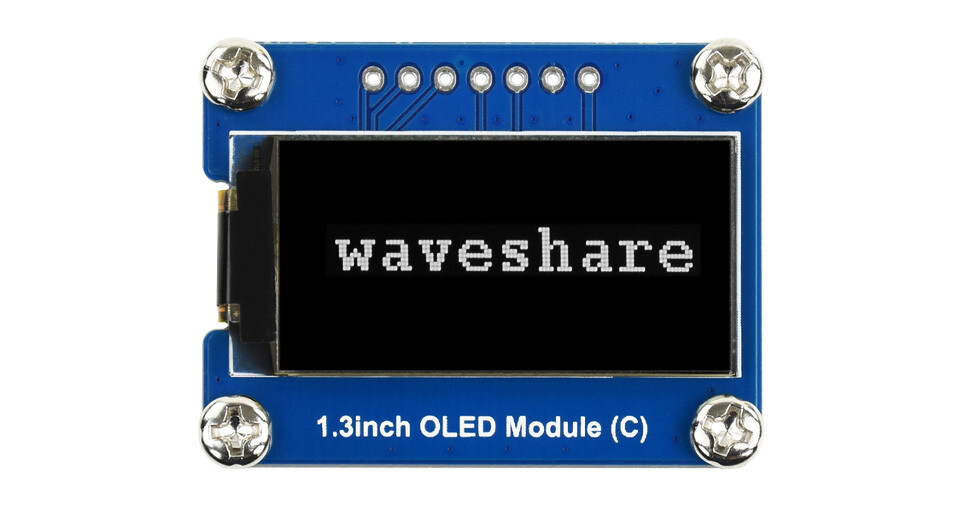

image960×512 70.5 KB

4

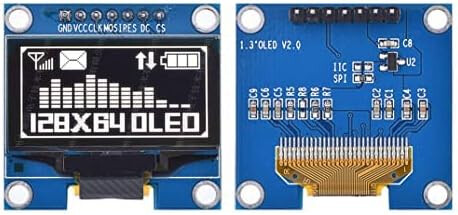

It's the old version, this:

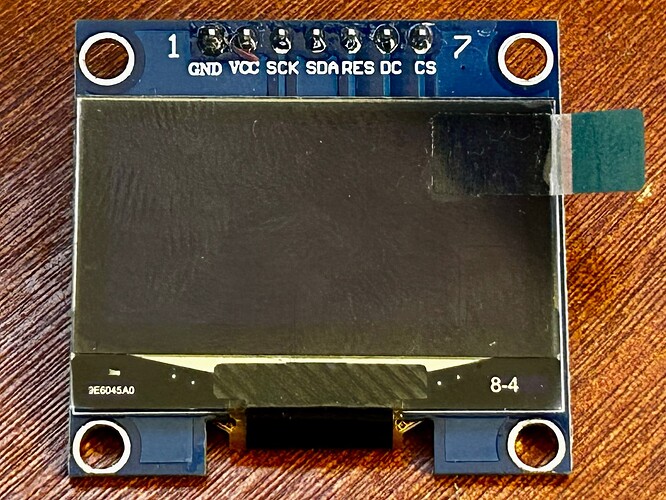

IMG_8459
IMG_84591920×1725 379 KB

I suppose need to modify the code for this OLED, I read there is a way to only use 2 pins instead of all 7, but everyone is very technical and I'm new to Arduino.
Thanks a lot for helping.

5

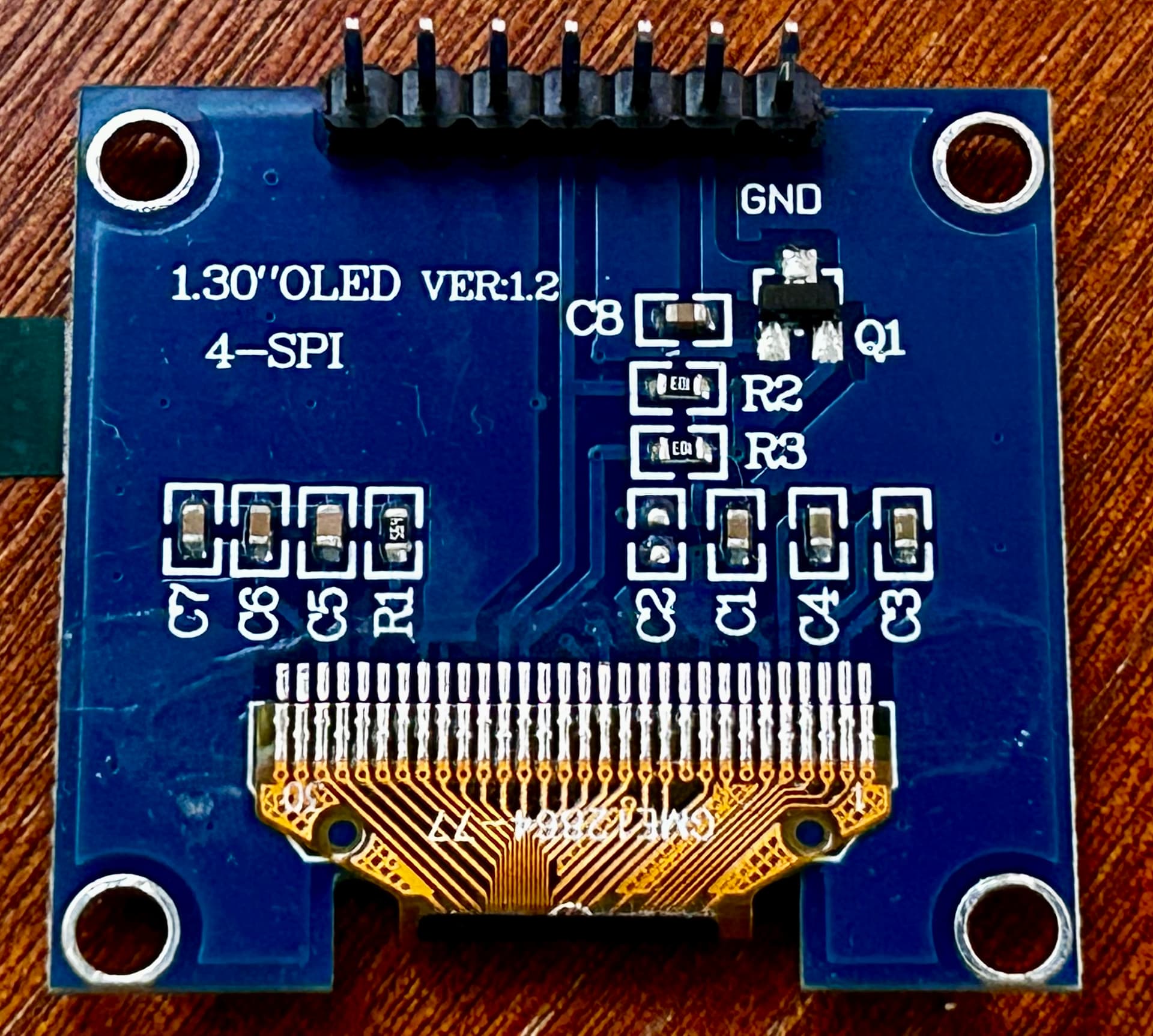

Maybe you could show the other side too ?

6

IMG_8460
IMG_84601920×1440 300 KB

Thanks again!

7
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <EEPROM.h>

Those are the required libraries.
I believe all you have to track down are the two Adafruit libraries. You ought to be able to add them via the IDE's Library Manager.
Sí ?
